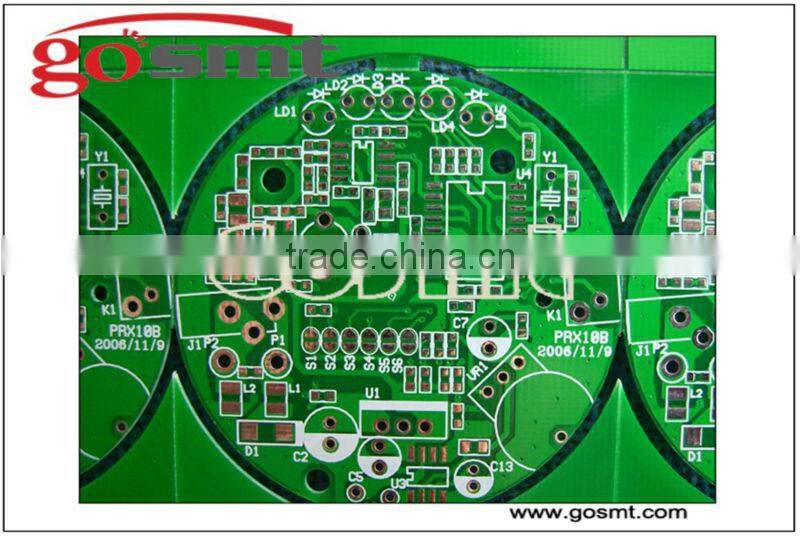

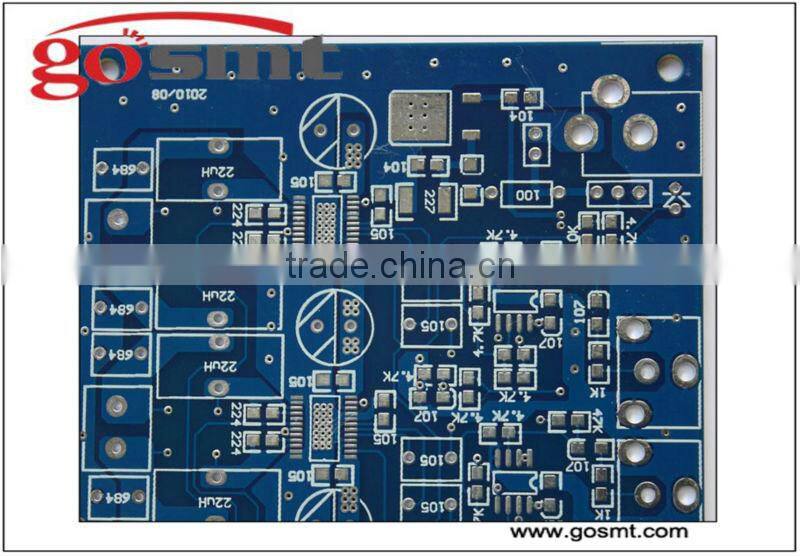

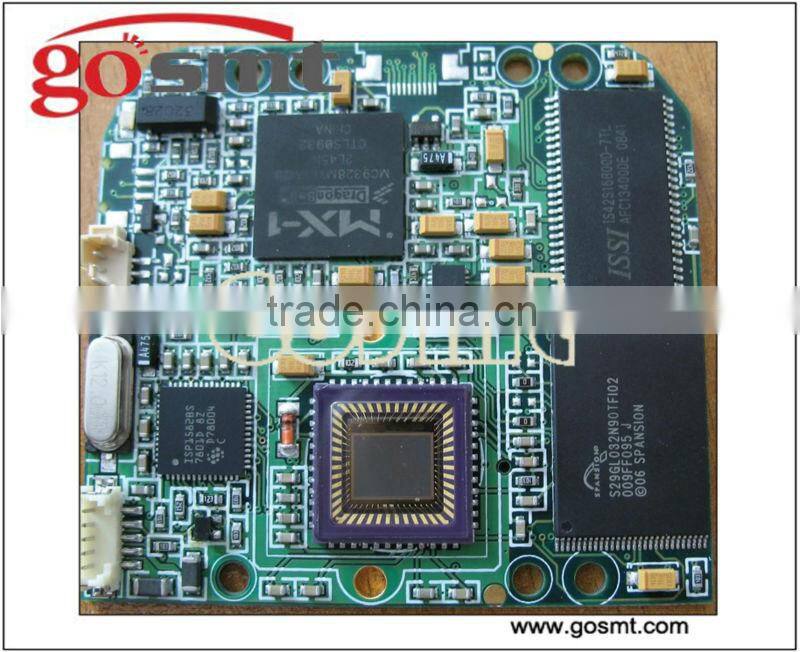

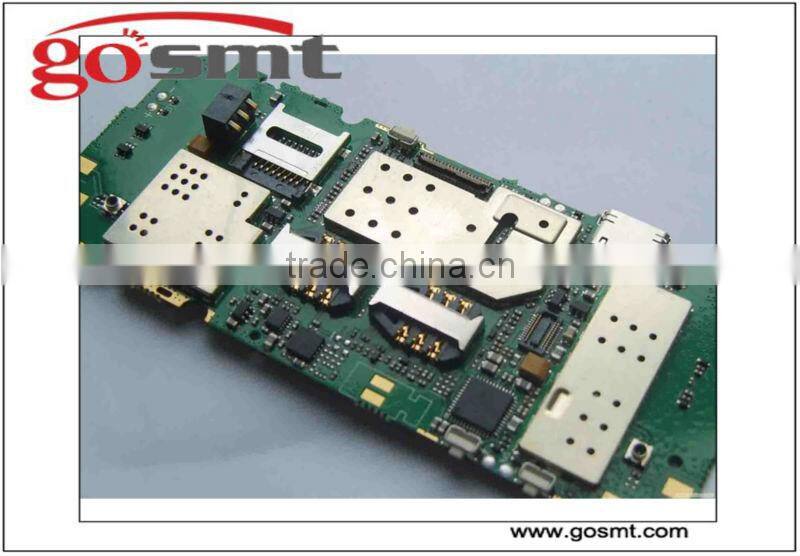

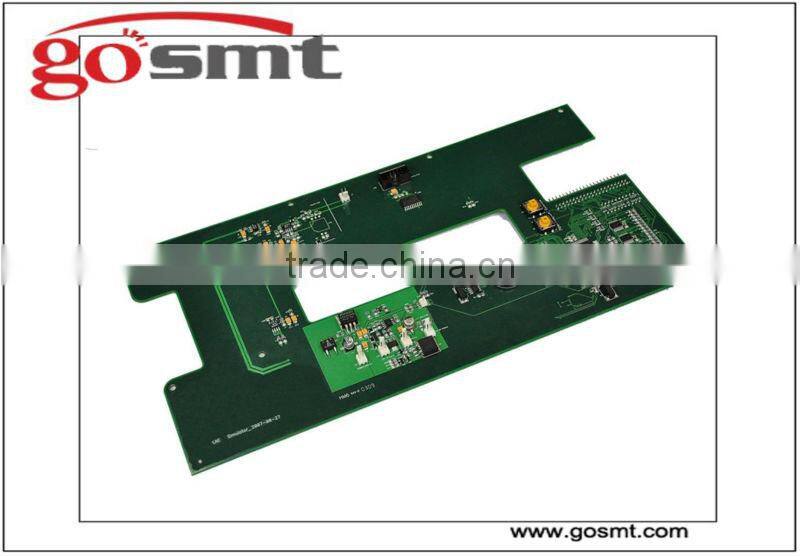

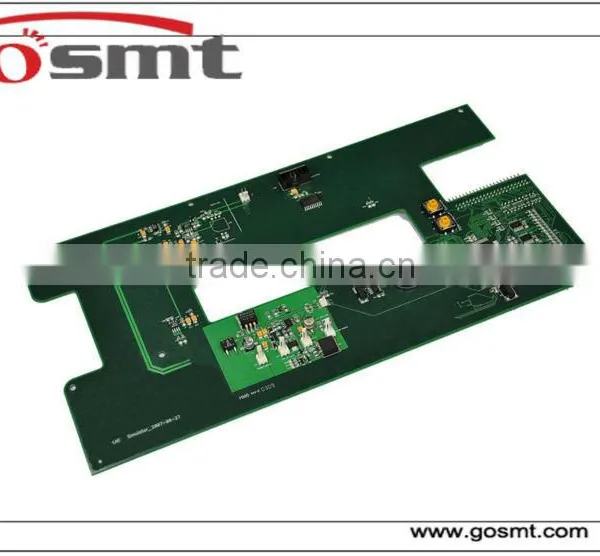

PCBA Assembly

Name: PCBA Assembly
Brand: Gosmt
SKU: 104704347
Availability: InStock

US$ 1 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Gosmt

Model Number:

GPA

Shenzhen Gosmt Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Gosmt

Model Number GPA

Number of Layers 12-Layer

Base Material FR-1,FR-2,FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,

Copper Thickness 0.5oz Min.,5.0oz Max

Board Thickness 0.2MM to 3.5mm

Min. Hole Size 0.5mm

Min. Line Width 0.075mm (3mil)

Min. Line Spacing 0.075mm (3mil)

Surface Finishing HASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersio

Specifications

1.PCB design and assembly
2.Engineering service
3.UL.CE.FCC.Rohs approval
4.Various size
5.1-12layer

PCBA Serive.

Technique requirement:

1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly With UL,CE,FCC,Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.

Multi-layer PCB Specification
providing you one-stop pcb assemblies service.
1	Layer	1-12 layer
2	Material	FR-1,FR-2,FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,
3	Board thickness	0.2mm-3.5mm
4	Max panel size	630mm*520mm
5	Min.drilled hole size	0.5mm
6	Min.line width	0.075mm(3mil)
7	Min.line spaceing	0.075mm(3mil)
8	Surface finish/treatment	HASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating
9	Copper thickness	0.5oz Min.,5.0oz Max
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vaccum packing,Plastic bag
12	Outer packing	standard carton paking
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Certificate	UL,ISO9001,ISO14001,ISO/TS16949,ROHS
15	profiling punching	Routing,V-CUT,Beveling
