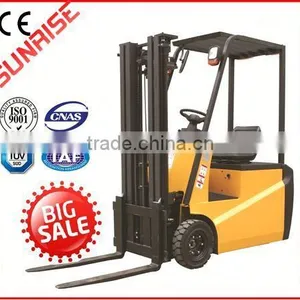

1.1 Ton Forklift Truck Narrow Aisle Forklift Solid Tyre Small Radius 3 wheel Mini Electric Pallet Truck with CE (CPD15)
Sell points:
1. Brushless direct current motor, it is maintenance free.
2. Min turning radius is only 1meter, so that means our forklift is very flexible. It can work well in a narrow space as cargo container.
3. Easily manipulated. (easy to operate)
4. Quality ok Price competitive.
Our R&D team developed a new 3 points brushless DC motor electric forklift after 2 years efforts. Compaired with other electric forklift, our "B-power" forklift's structure and design are more reasonable. It has great advantage of "good quality, very low price"! So it is highly welcomed by both domestic and abroad customers.
1. Our "B-Power" electric forklift can work efficiently and energy-efficiently due to
Using the advanced brushless DC motor and electric control system
2. The smaller batteries can support more working time by using hydraulic steering system that enable our forklift more stable, flexible, comfortable and smoother.
3. Our "B-Power" electric forklift was designed small and with 3 strong points which made it very flexible. It is easily manipulated even in a very narrow space as cargo container.

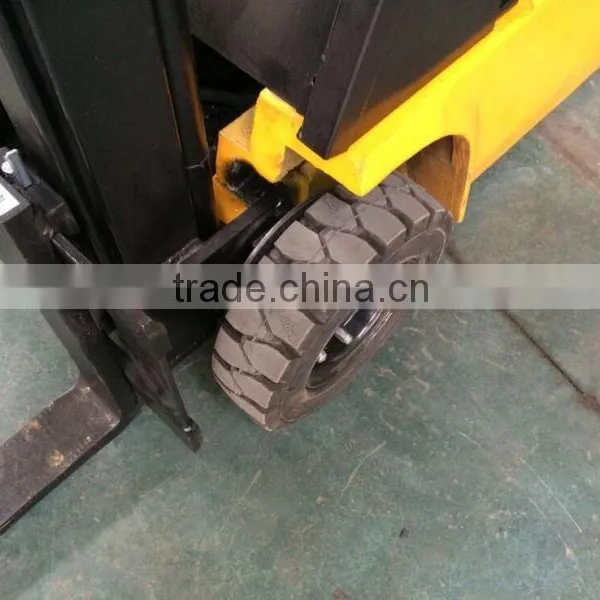

Our foklift's shake in running process is quite low by using 400mm diametre solid tyres.
4. Low speed, high toque brushless DC motor and advanced electric control system will support stable running power. It will run stable and comfortable even in some quite worse land suface condition, they are also helpful in controling electric power efficiently that makes our "B-Power" forklift very efficient and safe. It will keep stable in long time working conditions.
5.3strong points'design makes"B-Power" electric forklift very flexible. It is easily
Manipulated in any narrow space. The minimum turning radius is 1000mm the shelf stacker works will be completed with only 2000mm passageway.

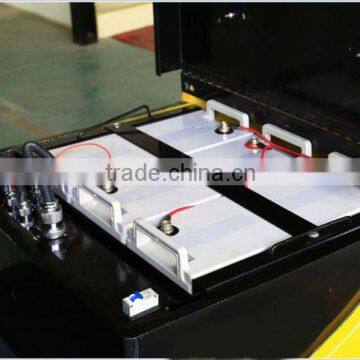

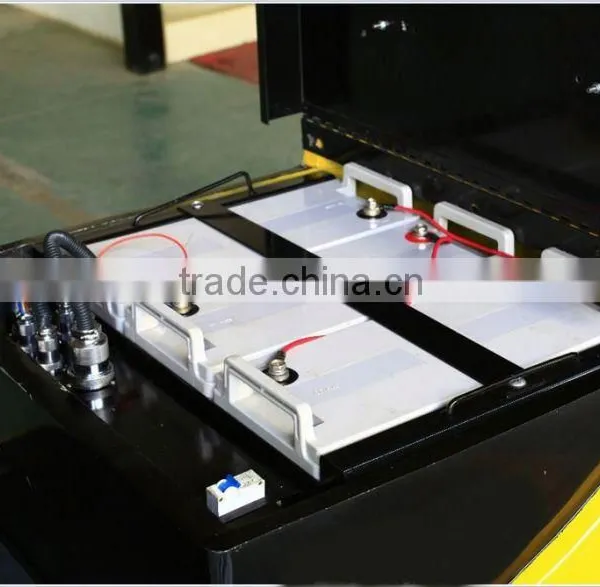

6. Maintenance-free lead-acid battery will support enough power without regular liquid adding. Clear wiring and connecting socket design made using and maintenace simpler and safer.
7. The simple operation board design made user very clear. Complicated training is not required. Anyboday can operate it skillfully only understanding simply how the system works.
Advantages of 3 strong points balance electric forklift
1. Original brushless DC motor technology, with high torque, low rpm, low current, and high efficiency working.
2.120 ampere-current battery is low replacement cost.
One battery set is 3000-7000 cheaper than normal forklift.
3.10 ampere charger can bring 15-25kwh power savings than normal ones during 8 hours charging in one day.
4. Super minor turning radius 1.2 meter, operate freely in narrow space, can drive into the container or large truck directly, and load/unload cargoes flexibly.
5. Moderate lifting speed of the fork to ensure the human safety and cargo safety.
6.0.8 meter overall width makes the forklift can freely through the narrow doors, such as cold store and elevator. Particularly applicable to the refrigeration storage and supermarket.
7. Radiation protection and anti-jamming, suitable for production workshop and warehouse of the high-end electronic products.
8. Brushless motor with no need for changing the carbon brush, saving the time, effort, and money.
9. Professional sales group and service team will let you reassuring buy and safety operation, makes you feel convenient and happy.
Bettering mini electric forklift model of economical and practical, pioneer of agility and convenience.
After-sales Service:
1: 6-24 months warranty policy
2: We will send spare parts replace the defective or broken parts
3: Choose the cheapest and safest shipping company to save the cost
4: Track the order until you get the goods
5: Protection of your sales area, ideas of design and all your private information
Data for Electric forklift
| Model | CPD07 | CPD11 | CPD15 | CPD18 |
| Load Capacity | 700kgs | 1100 kg | 1500 kg | 1800 kg |
| Max.Lift Height | 2000-4300 mm | 2000-4300 mm | 2000-4300 mm | 2000-4300mm |
| Load Center | 500 mm | 500 mm | 500 mm | 500 mm |
| Fork Dimensions(LxW) | 900 x 100 mm | 900 x 100 mm | 900 x 100 mm | 1100 x 100 mm |
| Overall Fork Width | 750 mm | 750 mm | 850 mm | 900 mm |
| Overall Length -- with fork | 2400 mm | 2400 mm | 2500 mm | 2700 mm |
| -- without fork | 1500 mm | 1500 mm | 1600 mm | 1600 mm |
| Overall Wideth | 800 mm | 800 mm | 880 mm | 950 mm |
| Frame Height | 1500-1950 mm | 1500-1950 mm | 1500-1950 mm | 1500-1950 mm |
| Seat Height | 950 mm | 950 mm | 950 mm | 950 mm |
| Wheel Base | 980 mm | 980 mm | 980 mm | 980 mm |
| Ground Clearance | 100 mm | 100 mm | 100 mm | 100 mm |
| Tires Dimensions - Front | 400 - 8 | 400 - 8 | 400 - 8 | 400 - 8 |
| Rear | 300 x 100 x 200 mm | 300 x 100 x 200 mm | 300 x 100 x 200 mm | 300 x 100 x 200 mm |
| Tire Type | Solid | Solid | Solid | Solid |
| Productivity | ||||
| Travel speed(w./w.o.load) | 4 / 6 km/h | 4 / 6 km/h | 4 / 6 km/h | 4 / 6 km/h |
| Turning radius - outside | 1400 mm | 1400 mm | 1400 mm | 1400 mm |
| Lift Speed(w./w.o.load) | 0.16 / 0.24 m/s | 0.16 / 0.24 m/s | 0.14 / 0.24 m/s | 0.14 / 0.24 m/s |
| Lowering Speed(w./w.o.load) | 0.36 / 0.28 m/s | 0.36 / 0.28 m/s | 0.36 / 0.28 m/s | 0.36 / 0.28 m/s |
| Tilt angle, Mast/fork carriage | ±5° | ±5° | ±5° | ±5° |
| Gradeability | 15% | 15% | 15% | 15% |
| Service Brake | electric | electric | electric | electric |
| Power | ||||
| Traction Motor | 1.5kW | 2.2kW | 4.0kW | 5.0 kW |
| Lift Motor | 0.9KW | 1.5 kW | 2.0 kW | 3.0 kW |
| Power Source | 36 V /75 Ah | 36 V /120 Ah | 36 V /150 Ah | 48 V /150 Ah |
| Battery Charger | 24 V /20 A | 24 V /20 A | 24 V /20 A | 24 V /20 A |
| Battery Weight | 75kg | 125 kg | 160 kg | 200 kg |
| Net weight(with batteries) | 1600kg | 2000 kg | 2300 kg | 2800 kg |
| Ship weight(In wooden case) | 1630kg | 2030 kg | 2340 kg | 2840 kg |
Export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 10 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period the forklift?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Sunrise has the responsibility to offer you the satisfactory equipments at good price.
|
|
|
|
|
|
|
| Diesel forklift | Electric forklift | Electric stacker | Hand stacker | Scissor lifter | Aluminum lifter |
|
Guangzhou Sunrise Machinery Equipment Co.,Ltd |
| Website: | One-Stop For Material handling equipment |
| Office phone: 0086 20 23357922 | |
| Mobile: 0086 13533138448 | |
| Email:sales&( Please replace & to @ ) | |
| Skype: andy7749 | |
| Whatsapp: 0086 13533138448 |
