Home > Packaging & Printing > Post-Press Equipment > Coating Unit > Flim Coating Machine BG Series

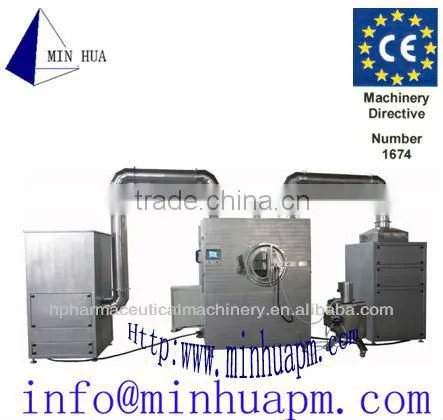

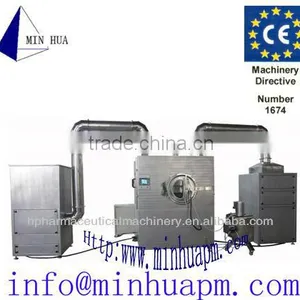

Flim Coating Machine BG Series

Name: Flim Coating Machine BG Series
Brand: MINHUA
SKU: 104702677

Flim Coating Machine BG Series thumbnail-1

Flim Coating Machine BG Series thumbnail-2

Flim Coating Machine BG Series thumbnail-3

Flim Coating Machine BG Series thumbnail-4

Flim Coating Machine BG Series thumbnail-5

Flim Coating Machine BG Series thumbnail-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

MINHUA

Contact Supplier Request Quote Chat Now

Minhua Pharmaceutical Machinery Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name MINHUA

Model Number BG

Usage Pharmaceutical

Voltage 380V

Power(W) 1100W

Weight 220

Dimension(L*W*H) 430x5660x1300

Certification ISO

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specification:

film coating machine

Model BG series high-efficient film coating machine of spraying etc, is import PLC, man-machine interface, automatic to shoulder keep, programmable control system that easy to operate, accord with GMP standard, apply to carry on the sugar-coat capsule pharmacy, in food industry, Western medicine slice, pill, candy, etc, extensively, organic membrane capsule, water dissolve the new-type capsule equipment of the membrane capsule

CHARACTERISTIC:

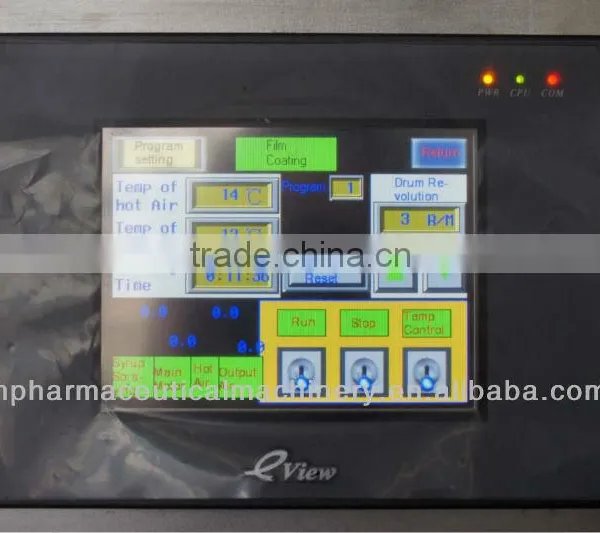

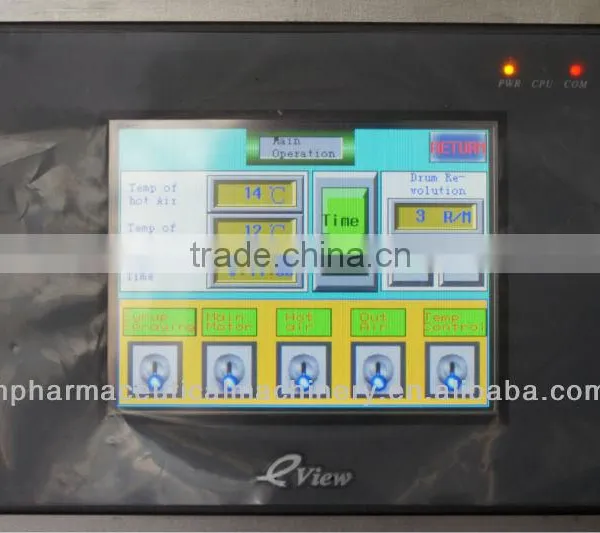

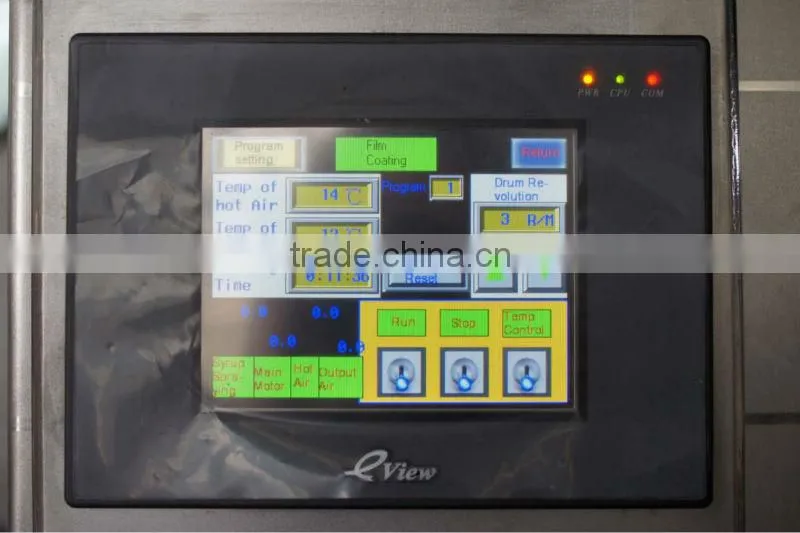

The main machine has importing PLC, man -machine interface, touch-sensitive screen to, press automatically. an carry on the operation of capsule crafts automatically or manually.

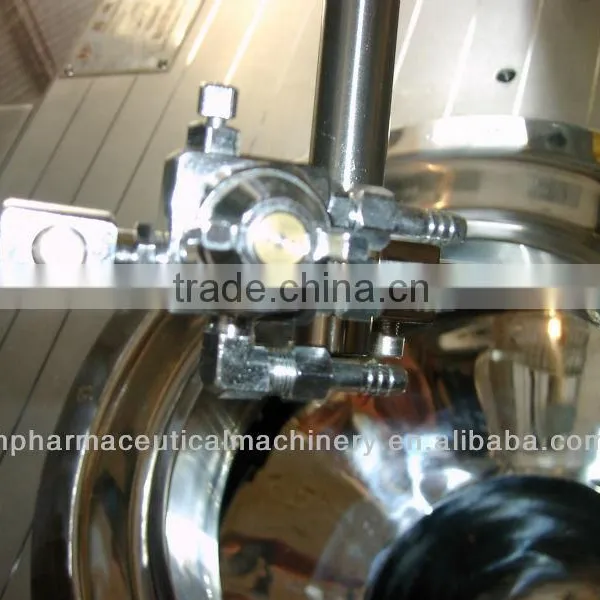

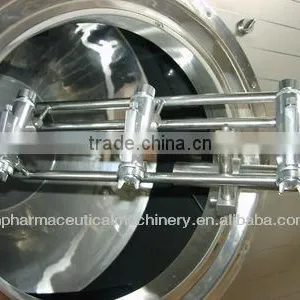

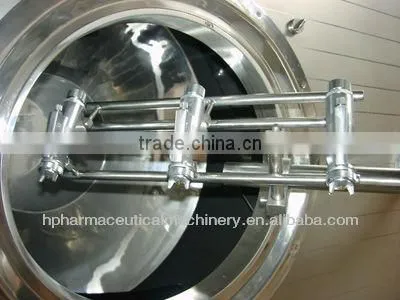

Adopt Japan import spray gun is heavy atomization even to spray surface, the angle is adjustable, no water clock, on stop up, the auxiliary materials are saved.

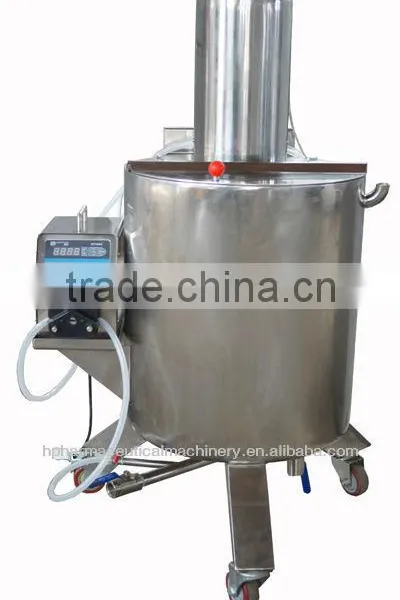

Grout mixer can is it compress air transport way or wriggle pump transport in the select for use, collect an organic whole electrically, no pollution. Hot air cabinet has flame-prep elementary, middle and senior100 thousand grade purifying filter Exhaust cabinet has the devices of shockproof, flame-proof and automatic dust removing..
CAN MAKE AND DISPOSE FOR USERS SEPARATELY:
Type production lot and write down the device.

The whole automatics washed in place.
Open and close both sides and seal the door device automatically.

The color rejects the control panel device.
FILM COATING PRINCIPLE:
This slice of core is put into the clean and airtight film coating machine and rotated in the cylinder under streamline shape water conservancy diversion board function, roll ceaselessly, make a scene of core smooth in upset, frequently exchange. Film coating medium in paddle barrel, through compress air transport or wriggle the pump not to transport, from a slice of core rolling, and arrange under the function of the wind in the
hot wind at the same time, make the capsule medium dry fast on a slice of core surface, from the firm and smooth surface capsule membrane, then produce material automatically after reaching the technological requirement...

Technical Parameter:

ItemModel	BG-40D	BG-80D	BG-150D
Max Load Capacity	40kg/time(run)	80kg/time(run)	150kg/time(run)
Coating rattler diameter	φ820mm	φ950mm	φ1200mm
Feed space diameter	φ340mm	φ380mm	φ480mm
Rotation speed of coating rattler(rpm)	3~22r.p.m	3~22r.p.m	3~16r.p.m
Motor power of main machine	1.1KW	1.5KW	2.2KW
Motor power of exhaust machine	2.2KW	3KW	5.5KW
Flow rate of gas exhaust machine	3517m³/h	268m³/h	7419m³/h
Motor power of heating dyer machine	0.25KW	0.75KW	1.1KW
Flow rate of gas heating dyer machine	950m³/h	1950m³/h	2500m³/h
Shirring barrel Volume	30L	50L	65L
Heat with steam main power	Three five line system	Three-phase five line system (with clean)	Three-phase five line system (with clean)
Main power of electric heating power sauce	Three-phase five line system	Three-phase five line system (with clean)	Three-phase five line system (with clean)
Cleaned air of pressure/air consumption	≥0.6Mpa/0.5M³/min	≥0.6Mpa/0.9M³/min	≥0.6Mpa/1.2M³/min
