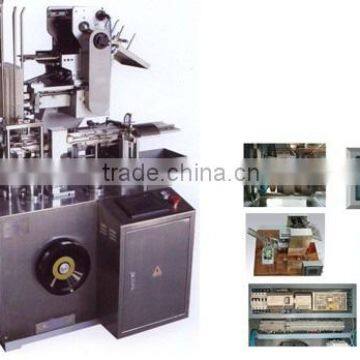

Multi-function Automatic Boxing Machine DZH-100 Model

Specifications

Machinery drive, variable frequency speed regulating, protection of automatic stop when the machine is over loading, control wit



Performance and Characteristics

Machinery drive, variable frequency speed regulating, protection of automatic stop when the machine is over loading, control with PLC process, automatic checking of Aiming at the medical former and the explaining books page-lack. Automatic waiting when the machine hasnt medical former. Having the equipments of products count and intelligent failures display.
the machine is used to take Ai-plastic medical former(including the medical formers which are full of ai-foil),plastic bottle (vitreous bottle )to fill in the paper-boxes automatically, including the explaining books pucker(1-4 fold),paper-boxes forming and using, codes printing and the two sides of paper-boxes sealing are also automatic .it can be also linked to produce with ai-plastic blister packing machine, bottle-filling lines and three dimension transparent film packing machine, etc.
Main Technical Parameters:
running speed:3090box/min
size range of cardboard box
≥65×35×12mm
≤125×78×65mm
special machine:≤160×60×65mm
size of unfolded explaining book70210×80300mm
size of folded explaining book70210×2040mm
quality of operation manual 5080g/m
total power0.75Kw
powerthree phrase four wire 380V 50Hz
air-compressed0.60.7MPa
air-compressor0.120.16m/min
overall dimensions1300×1400×1560mm
weight:900Kg
