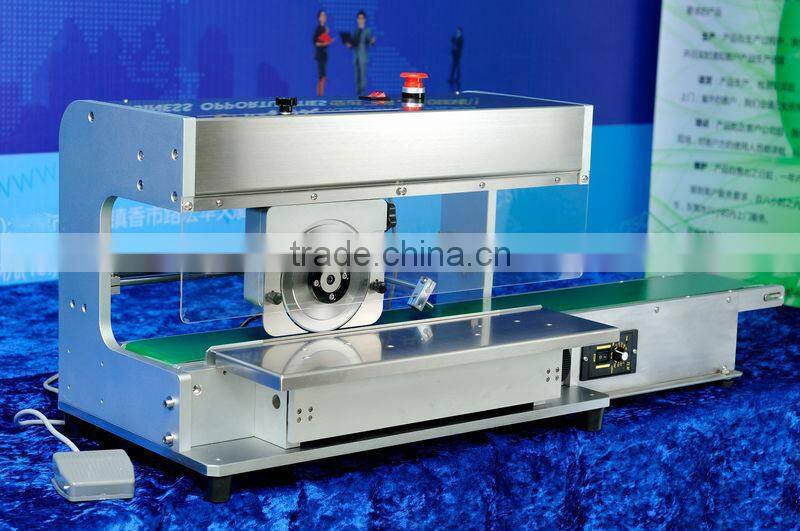

V Cut PCB Depenaling
1.V Cut PCB Depenaling
2.PCB thickness 0.3 to 3.5mm
ing pressure 0.5 to 0.7 Mpa
4.Max PCB length 330mm
5.weight 120kg
Specification
Max PCB length |
330mm |
Exterior dimension |
700 x 300 x 400 mm |
PCB Thickness |
0.3 to 3.5 mm |
Cutting blade size |
Up 6 x 60 x 356 mm |
Down 6 x 38 x 356 mm | |
Working Pressure |
0.50 to 0.70Mpa |
Voltage |
220VAC |
House color |
Blue or white |
Machine Weight |
120kg |
Feature:
1. It is pneumatically driven and electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process. Due the special design of the knives also boards with high components placed closed to the edages can be separated safely.
2. No vibration during the process to prevent damage to precise PCB
3. Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied
4. Lower knife height adjustable, no thin plates are required after re-sharpening the cutting blade
5. Operation and maintenance can be done also by unskilled personnel.

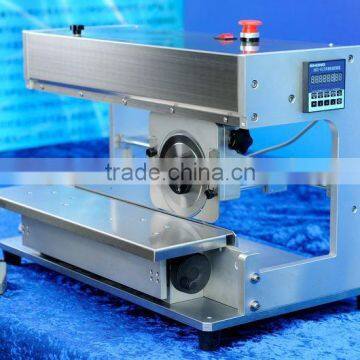

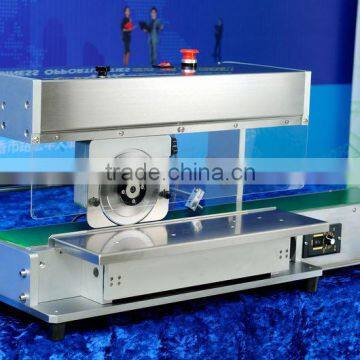

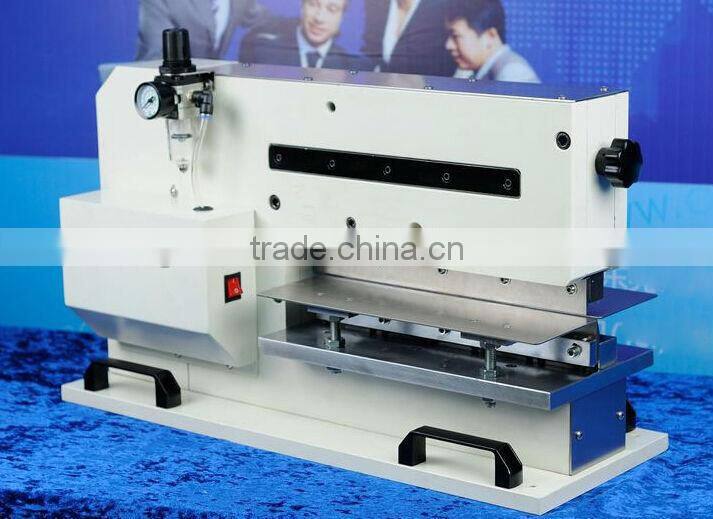

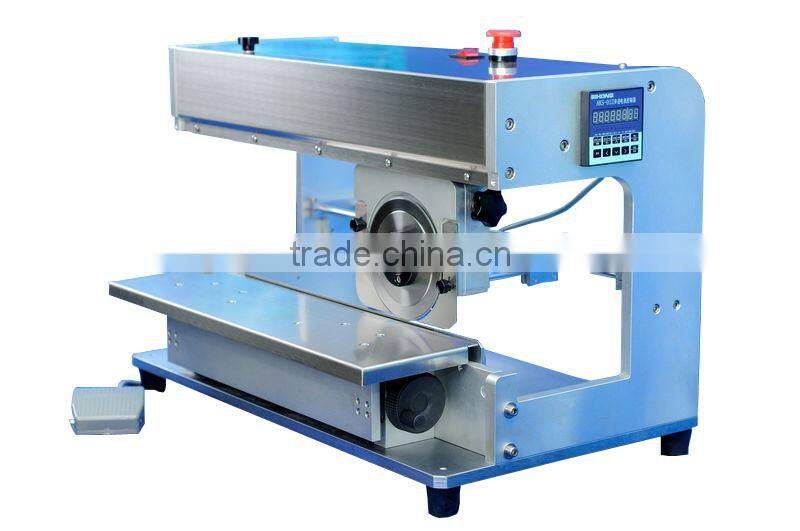

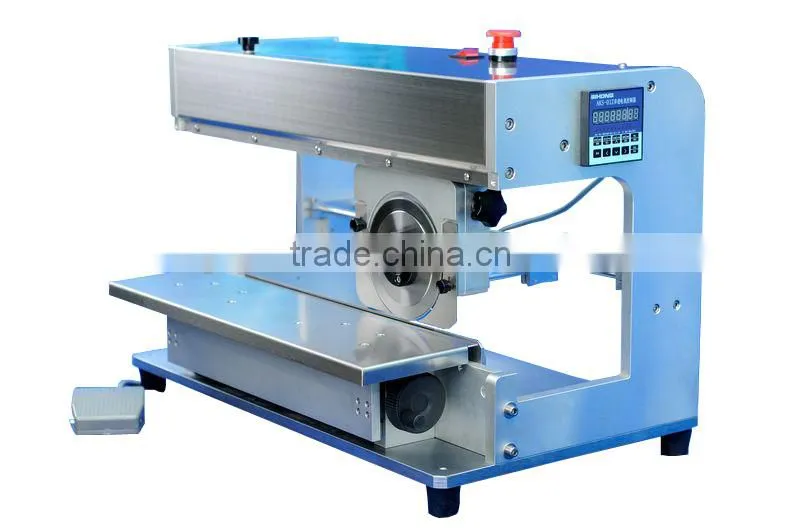

detailed picture:

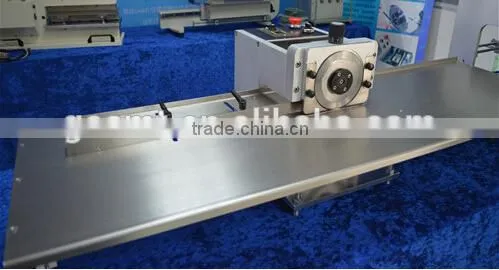

GPS-09 with 1.2 meter platform

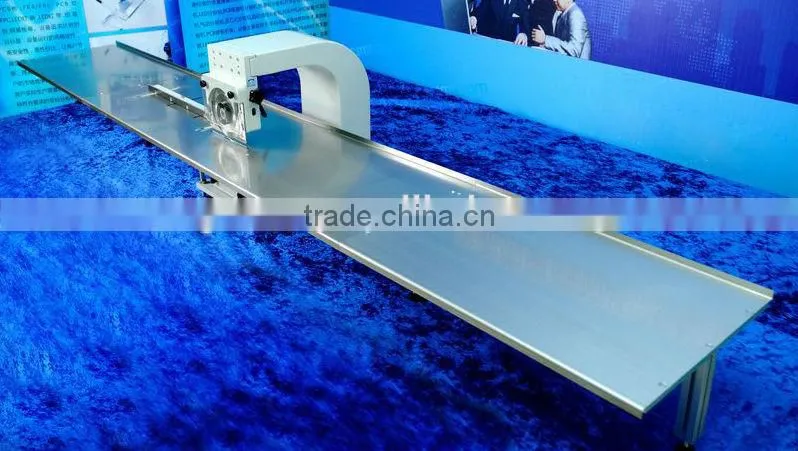

GPS-09 with 2.4 meter platform
GPS-15
GPS-16
GPS-04
