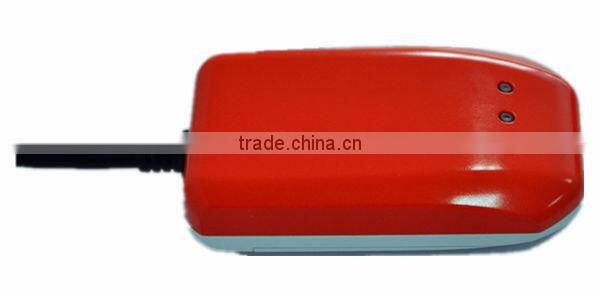

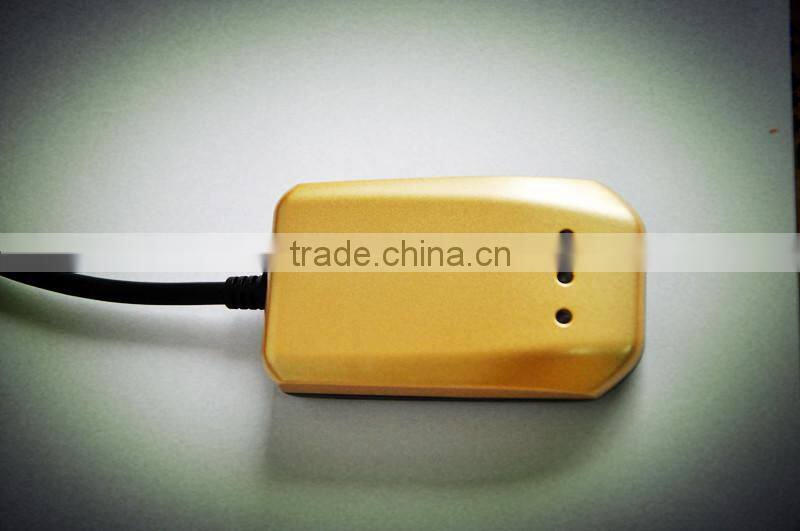

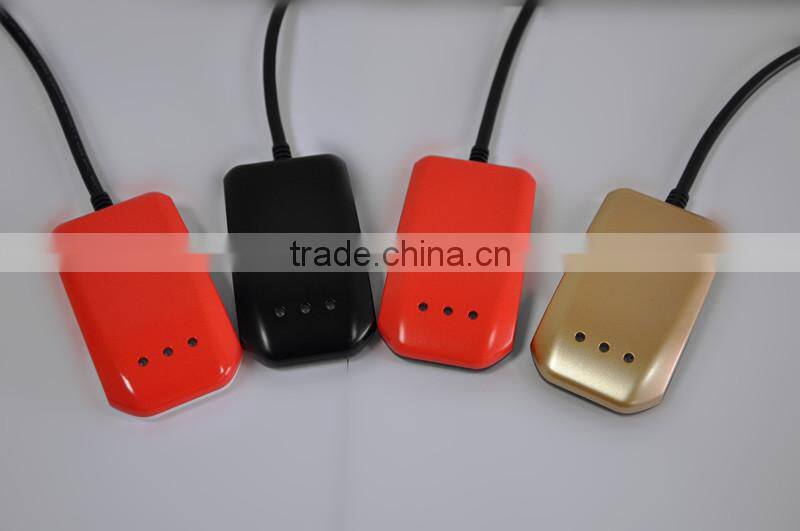

Hot Sale Colourful Built-in Antennas Motorcycle Gps/gsm Tracker

Specifications

built-in antennas
Parametrized operation (acquire & send)
Integrated scenarios
built-in Mini USB
Low energy consumption





   HSZ101 is light terminal with GPS/gprs and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars ,motorcycle etc) quickly and easily.

   In case of losing connection HSZ101 can store up to 10000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data (coordinates, sensors data and etc.).

   HSZ101 can perform tasks on remote objects, such as monitoring engine status, controlling truck's door etc.



TECHNICAL DETAILS:

GSM

• Quad-band 900/1800 MHz; 850/1900 MHz
• GPRS class 10 (up to 153 kbps);
• SMS (text/data)

Feature List



• Real Time tracking
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections (GPRS traffic saving)
• 1 geofence zones (rectangular)
• FOTA (firmware updating via GPRS)
• Internal motion sensor
• Small and easy to mount case
• Operation mode presets:

             Advanced overspeeding detection

             Immobilizer



• google link
• door detection











spec.

Content	Specs
Dim.	87.6* 50.8 * 19.6 (mm)
Net Weight	0.398kg
Network	SMS, GPRS (CMNET)
Band	850/900/1800/1900MHz
GPS chip	UBLOX six chip
GSM/GPRS Module	SIM800 or SIM840
GPS sensitivity	-159dBm
GPS accuracy	3-30 m
Location Query	Mobile phone or platform
Work Voltage	DC  9V-55V
Battery	changeable 3.7V / 750mAh Li-ion battery
Standby work current	< 50mA
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +70°C
Humidity	5%--95% non-condensing

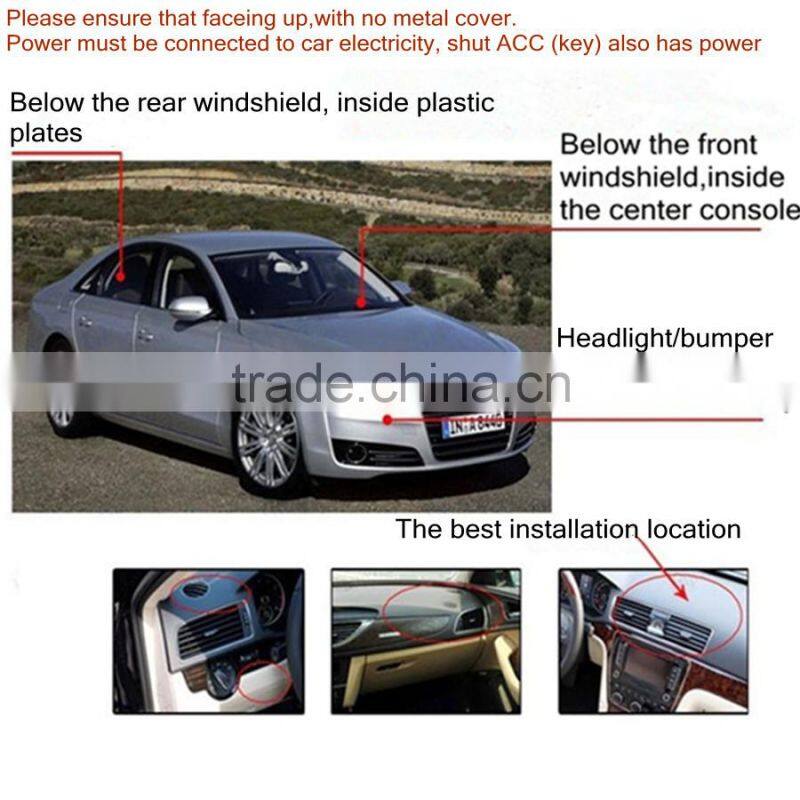

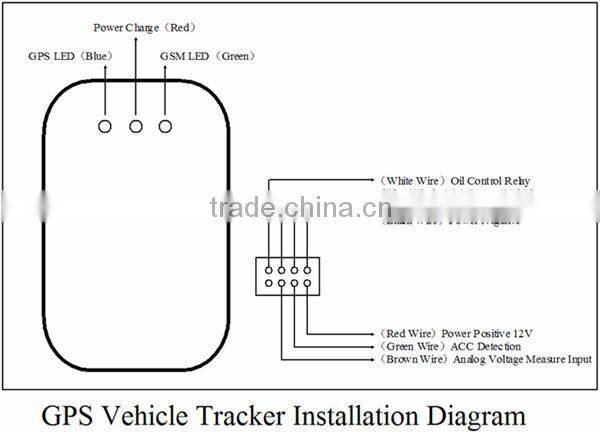

Installation diagram of The Tracker



















Application

• Track and trace
• Road assistance
• International logistics
• Personal car's and van tracking
• Fleet management













package including

 *1 bulk

 *1 user manual

 *1 power cord

 *1 battery

 *1 sos

 *1 relay
