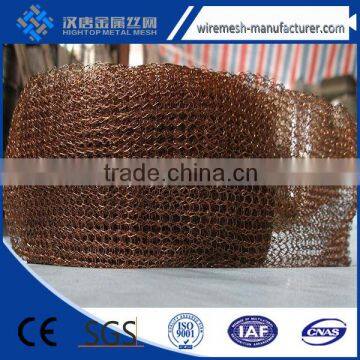

Alibaba Cheap Copper Knitting Wire Mesh Copper Knitted Wire Mesh

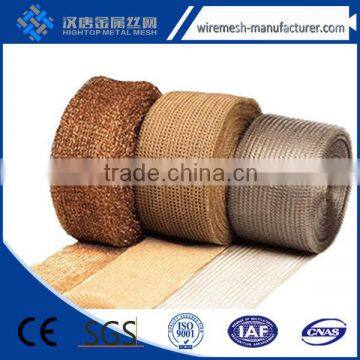

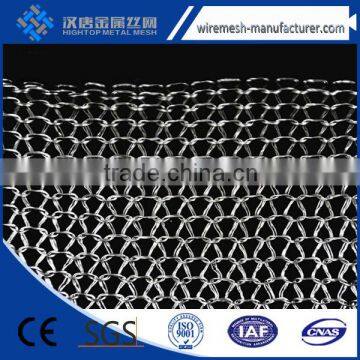

Knitted wire mesh -mesh type
| Typical wire diameter(mm) | Range of natural width(mm) |
|
| 0.2-0.35 | 30-100 | |
|
Typical number of stitches
|
Tyoical number of stitches
|
|
| 0.6 | 1.9 |
Coarse mesh | ||
| Typical wire diameter(mm) | Range of natural width (mm) |
|
| 0.2-0.35 | 30-550 | |
|
Typical number of stitches per cm om lengeh |
Typical number of stitches per cm across lasy flat |
|
| 1.6 | 0.74 | |
| Super-coarse mesh | ||
| Typical wire diameter (mm) | Range of natural width (mm) |
|
| 0.2-0.35 | 30-550 | |
Typical number of stitches per cm om lengeh |
Typical number of stitches per cm across lasy flat |
|
| 0.5 | 0.5 | |
Technical data of knitted wire mesh
A |
B | C | D | F | G |
| 60 | 60 | 55 | 36 | 2x4 | 54,24 |
| 120 | 15 | 100 | 34 | 4,5x4/2,5x4 | 64,54 |
| 140 | 150 | 120 | 40 | 4,5x5,5/2,5x5,5 | 65 |
| 200 | 205 | 180 | 56 | 4x3,5 /2,5x3,5 | 105,4 |
| 250 | 260 | 240 | 65 | 4x4/3x4 | 123,22 |
| 410 | 420 | 380 | 94 | 5,2x3,5/3x3 | 198 |
| 560 | 565 | 490 | 102 | 7,5x5/2x5 | 195,16 |
| 560 | 560 | 470 | 128 | 5x4/2,5x4 | 270 |
•A:It is the standard width of the mesh going out of the machine ,once flattened (flattened pipe)
•B:It is the maximum width the machine can deliver.
•C:It is the minimum width the machine can deliver.
•D:Number of machine needles.
•F:Mesh opening .Also included in the nominal width.Two mesh openings machines:
The first :opening is that between two needles.
The second:is that of the hole of the needle itself ,i.e,there is one opening of each altrnatively.
•G:Weight of 1linear m of flat mesh,in grammes,0.26 mm wire ,AISI 304 ,mesh at rest not drawn

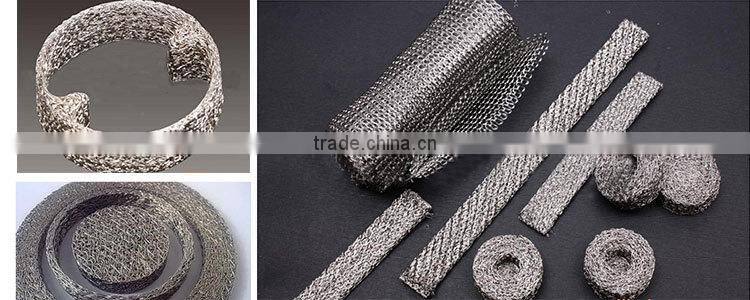

Application:
Packing details
Shipping
Why choose us?
