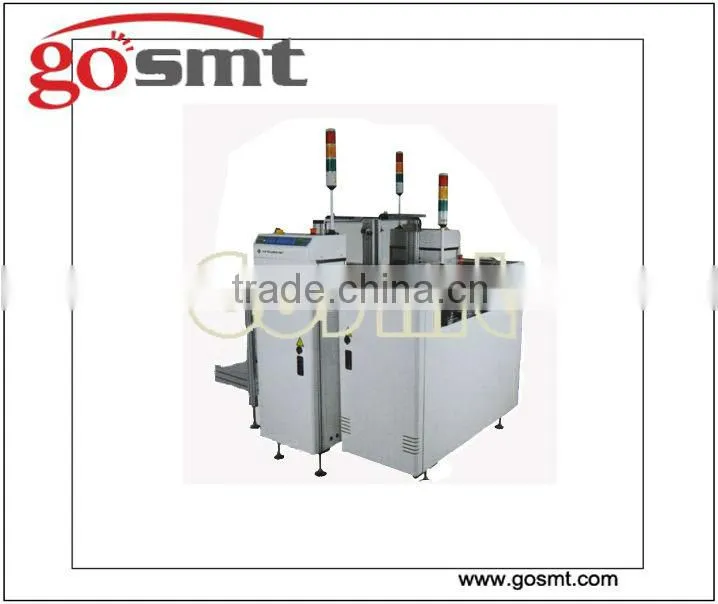

Help CenterTurn Buffer Stocker (First in First Out) SMT Machine
Related Products
Specifications
1.for stocking PCBs between reflow oven and AOI2.cycle time 20seconds.
3.PCB thick 0.6mm min
4.air pressure 4-6bar
5.230VAC
Features
1.Used for stocking PCBs between Reflow Oven and AOI
2.Five operation mode: loading, Unloading, FIFO, LIFO, Pass-through
3.PLC programming control
4.User friendly “soft touch” LED membrane control panel
5.SMEMA compatible
Technique Parameter
Description |
Used for loading & unloading of PCBs |
No. of Magazine |
Upper Conveyor:1 Lower Conveyor:2 |
Cycle Time |
Approx, 20 seconds |
Indexing Pitch |
10, 20 , 30 , 40mm or specify |
Power Source |
230VAC 1 ph 250VA max, (Option 100VAC) |
Air Pressure & Consume |
4-6 bar, 15 ltr/min max |
PCB Thickness |
0.6mm min |
Specification Parameter
Model |
Size |
Dimension L x W x H, mm |
Effective PCB Size L x W , mm |
Approximate Weight,kg |
Rack Size L x W x H,mm |
GP06-105M |
M |
1245 x 1175 x 1600 |
50 x 50—330 x 250 |
140 |
355 x 320 x 560 |
GP06-105L |
L |
1460 x 1258 x 1600 |
50 x 50---445 x 330 |
200 |
460 x 400 x 560 |
GP06-105LL |
LL |
1635 x 1450 x 1600 |
50 x 50---530 x 390 |
240 |
535 x 460 x 570 |
GP06-105XL |
XL |
1635 x 1530 x 1600 |
50 x 50---530 x 460 |
280 |
535 x 430 x 570 |

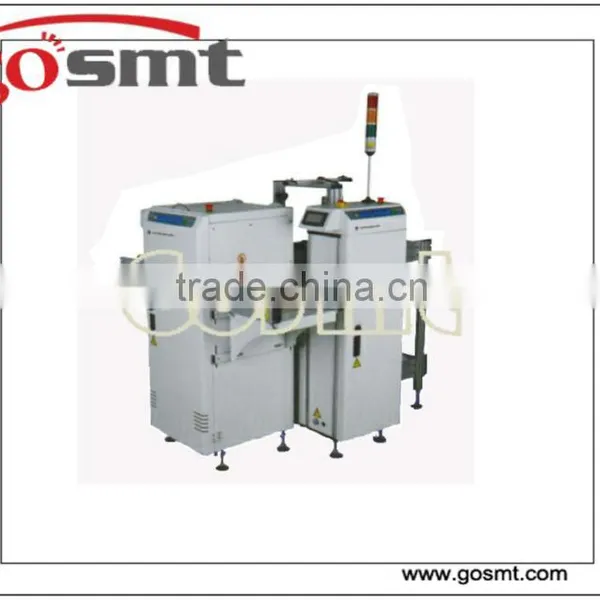

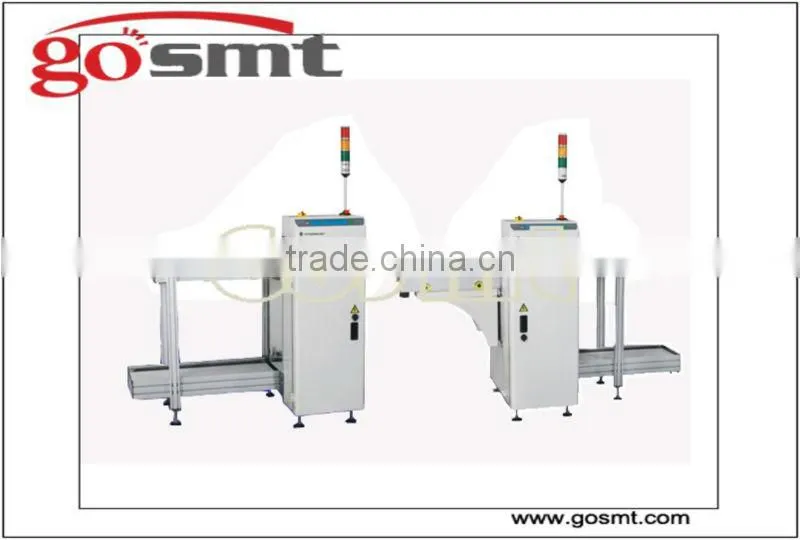

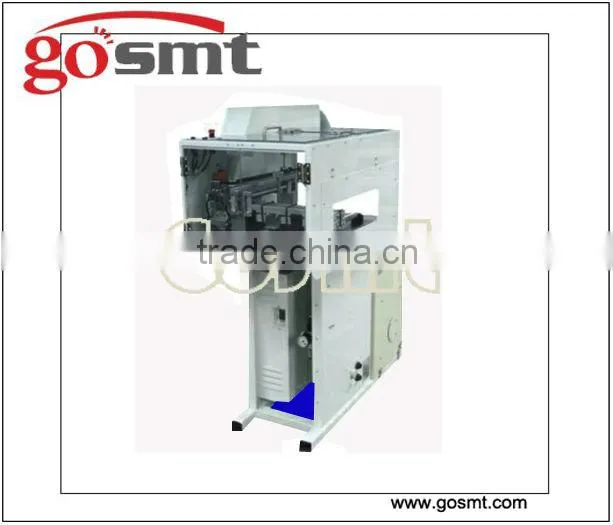

More relative picture
GP02 PCB Cleaning Machine
GP01 Automatic Multi Magazine Loader
GP03 NG/OK Multi Magazine Unloader
GP08 Turn Conveyor
GP09 PCB Invertor
