GSM 3G Range Extender Enhancer - High Quality From Manufacturer | Huaptec

•

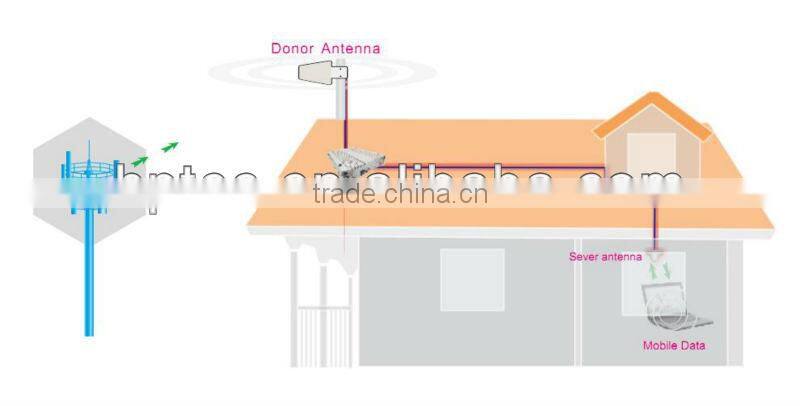

 Fast and easy installation in 4 steps

Extended phone battery life

Your phone does not need to put out as much power due to improved reception.

 •

Auto Shut Off Function
Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.

Intermediate IF SAW filter technology
for very sharp out of band rejection to amplify only specific operators' signals and reject all the others.

OMT and OMC functions
The repeater can be locally and remotely monitored and controlled through its integrated software circuit, remote control software of both OMT and OMC are available as per customer's request, and OMC can be connected with its upper level software through SNMP.(Optional)

SOHO solution for small area boosters

RF Parameter

Uplink

Downlink

­Frequency Range

GSM900&UMTS

890~915MHz

935~960 MHz

DCS*LTE

1710~1785MHz

1805~1880MHz

WCDMA

1920~1980MHz

2110~2170MHz

Max .Gain

F10F-G

55dB

60dB

F10F-D

55dB

60dB

F10F-W

55dB

60dB

Max .Output Power

F10F-G

10dBm

10dBm

F10F-D

10dBm

10dBm

F10F-W

10dBm

10dBm

MGC ( Step Attenuation )

≥15dB / 5dB step, dip switch control

AGC

Adjust automatic, with auto shut off function

V.S.W.R

Typical≤ 2

Electrical Parameter

Impedance

50 ohm

Power Supply

Input AC90~264V,output DC7V/0.8A

LED Alarm

Power LED

Power Indicator

ALC LED

Orange @ ALC 1~5 dB, Red @ ALC 15 dB ~20 dB, LED off after 5 seconds red color

Mechanical Parameter

Mechanical Parameter

I /O Port

N-Female

Dimensions

5.1*3.7*1.2inch/129*95*30mm

Weight

≤1.4Lbs/0.65KG

Environment Parameter

Operating Temperature

-25ºC~+55ºC

Relative humidity

5% - 95%

Barometric pressure

55 kPa -106 kPa

Environment Conditions

IP40

•
