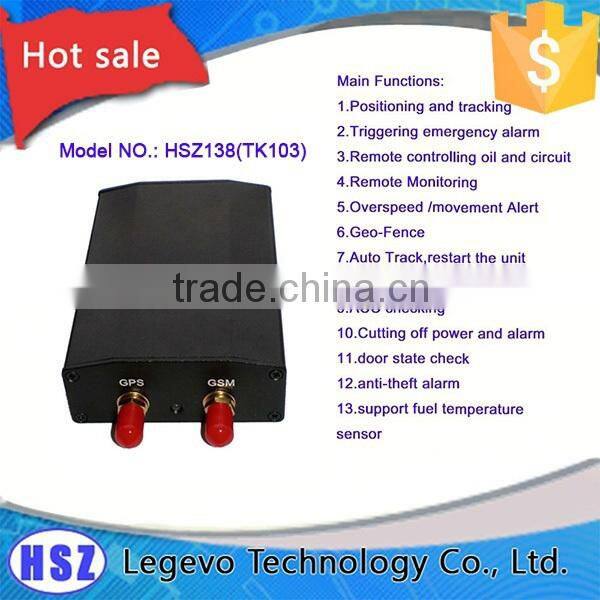

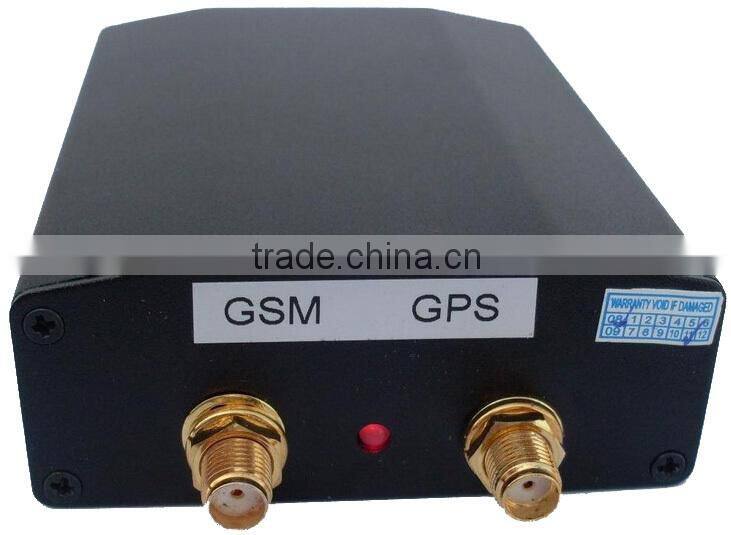

Anti-theft GSM GPS Car Tracker TK103

1. Aluminum housing, shockproof ,dustproof,anti-drop
2.Real-time tracking
3. burglar alarm, security accompanying
4.9V-55V wide voltage

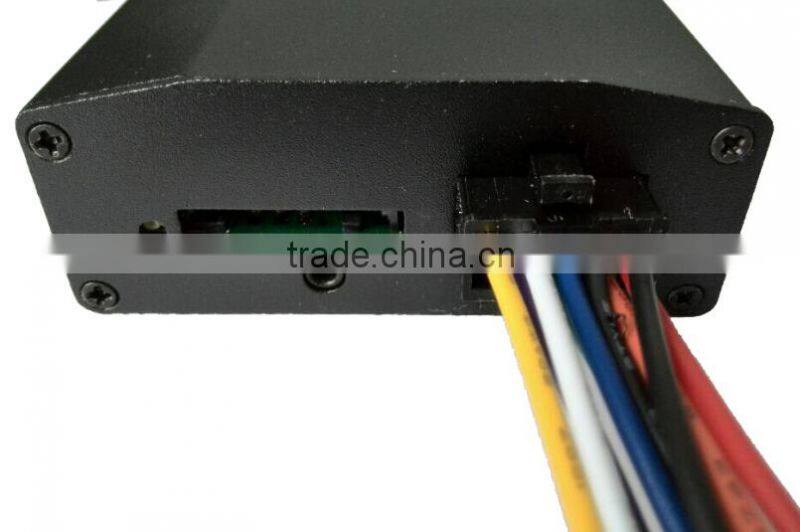

5. Do not change the original car lines, only three lines can be installed in parallel (12v or 24v power positive, negtive, ACC detection)

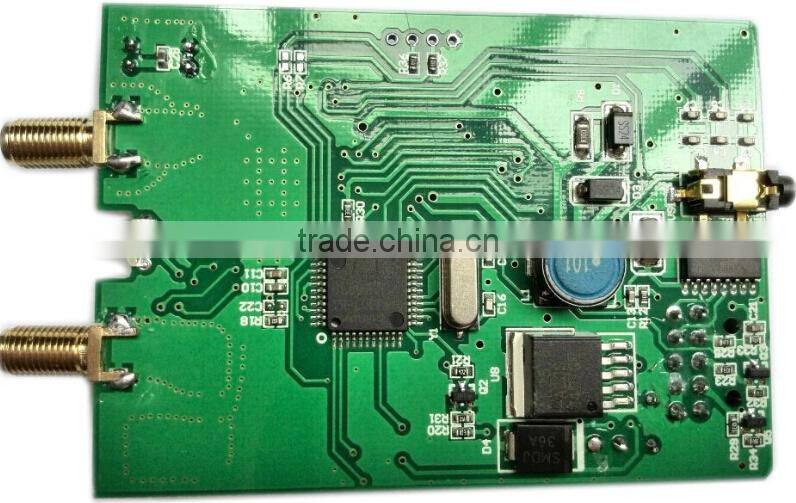

PCB Board

Design and use the highest 8 laminates in industry, Shell is made of  ABS+PC with  High strength, high temperature

Perfect host protection circuit
 To protect the host are not affected by abnormal voltage, causing burned host

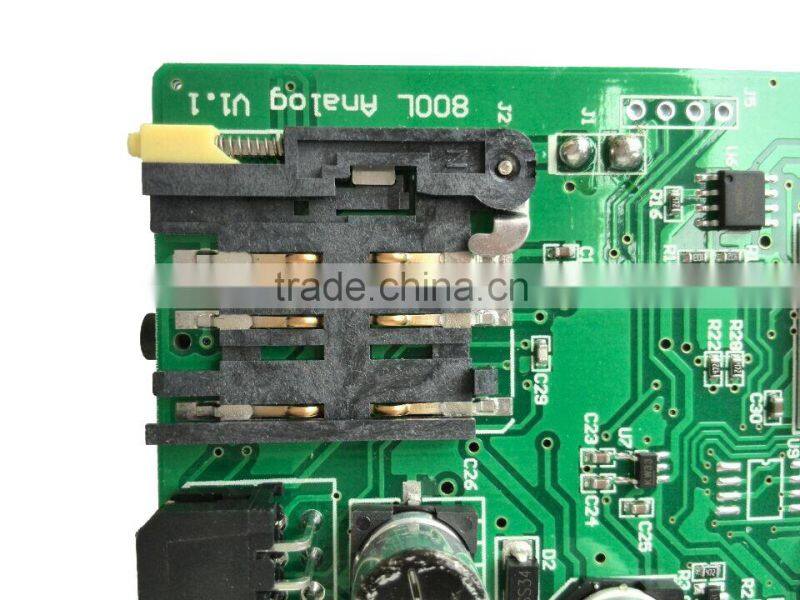

SIM card slot

Need insert SIM card with GPRS function

Content

Specs.

Dim.

87 * 64 * 26 (mm)

Weight

495g

Network

GSM/GPRS/GPS

Band

850/900/1800/1900MHz

GPS chip

HUA XUN or UBLOX chip

GSM/GPRS Module

SIM800L or SIM800W

GPS sensitivity

-159dBm

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s

 Cold status  45s

Warm status  35s

 Hot status  1s

Work Voltage

DC  9V-55V

Battery

 750Ah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing

1 Positioning and Tracking

2.Triggering Emergency Alarm

3 Remote controlling oil and circuit

4 Remote Voice Monitoring

5. Overspeed Alert

6. Movement Alert

7 Geo-fence

8. Auto Track

9.Mileage statistics; ACC checking; cutting off power and alarm.

10. Compatible with the original anti-theft alarm
