Home > Products > Construction mesh > Rib Lath/Galvanized Steel Rib Lath for Concrete Reinforcement for the Concrete Formwork
Rib Lath/Galvanized Steel Rib Lath for Concrete Reinforcement for the Concrete Formwork
US$ 1 - 6
/ Sheet
100 Sheets(Min. Order)
- xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Ribbed Formwork/Fast Ribbed Formwork/Template Formwork/Rib Lath(factory,low Price)
-
Galvanised Hi Rib Lath for Construction Use (high Quality Low Price)
-
High Quality Galvanized Sheet Concrete Rib Lath Supplier
-
China Expanded Rib Lath Used in Building Quality Choice
-
China 3.4 3/8'' High Rib Lath
-
HI-RIB Mesh(High Rib)/Expanded Rib Lath(direct Factory)
Product Details
| Place of Origin | Hebei, China | Brand Name | Rib Lath/Galvanized steel rib lath for concrete reinforcement | |
| Model Number | hightop-40 | Material | Galvanized Sheet |
Product Description
Rib Lath/Galvanized steel rib lath for concrete reinforcement
Product Description

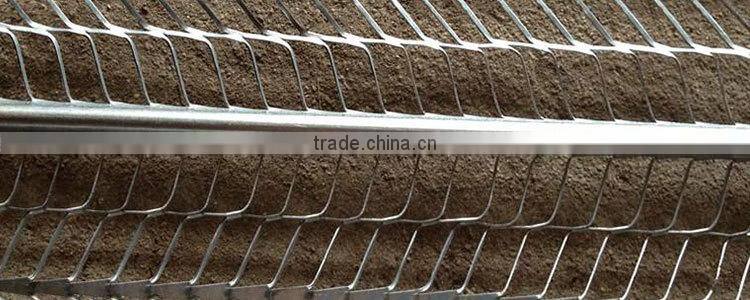

Rib Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength which offering excellent plaster base and reinforcement for all types of walls, ceilings, partitions and fireproofing of steel beam, and columns. Rib lath is ideal for providing a high degree key of mechanical bonding with render or plaster.
Material: Galvanized Steel Sheet and Stainless Steel Sheet
Specifications of rib lath
According to the opening size (Sw x Lw), rib lath can be divided into the following four kinds.
| Rib Distance | Rib Height | Opening size( Sw x Lw) | Width |
| 150mm | 5.0mm | 12.5*17mm | 600mm |
1 Sw x Lw: 12X8mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 12*8 | 5 | 100 | 1.2 | 610 |
| 0.35 | 12*8 | 5 | 100 | 1.4 | 610 |
| 0.40 | 12*8 | 5 | 100 | 1.6 | 610 |
| 0.30 | 12*8 | 8 | 100 | 1.2 | 610 |
| 0.35 | 12*8 | 8 | 100 | 1.4 | 610 |
| 0.40 | 12*8 | 8 | 100 | 1.6 | 610 |
2 Sw× Lw: 3.5x13mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 3.5*13 | 4 | 60 | 1.27 | 610 |
| 0.35 | 3.5*13 | 4 | 60 | 1.49 | 610 |
| 0.40 | 3.5*13 | 4 | 60 | 1.70 | 610 |
| 0.30 | 3.5*13 | 4 | 75 | 1.27 | 750 |
| 0.35 | 3.5*13 | 4 | 75 | 1.49 | 750 |
| 0.40 | 3.5*13 | 4 | 75 | 1.70 | 750 |
3 Sw× Lw: 20x9mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.35 | 20*9 | 8 | 75 | 1.00 | 610 |
| 0.40 | 20*9 | 8 | 75 | 1.13 | 610 |
| 0.45 | 20*9 | 8 | 75 | 1.27 | 610 |
4 Sw× Lw: 16x11mm
| Thickness(mm) | Sw*Lw(mm) | Rib Height(mm) | Rib Distance(mm) | Weight (Kg/m²) | Width(mm) |
| 0.30 | 16*11 | 8 | 150 | 0.88 | 610 |
| 0.35 | 16*11 | 8 | 150 | 1.18 | 610 |
| 0.40 | 16*11 | 8 | 150 | 1.46 | 610 |
Application:Partition wall,Tunnel / sewers project,Floor,etc
Packaging & Shipping
Packaging details: packing with steel belt,then put it on steel pallet.
