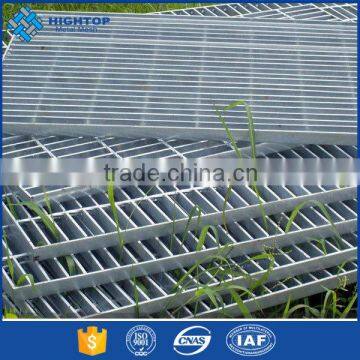

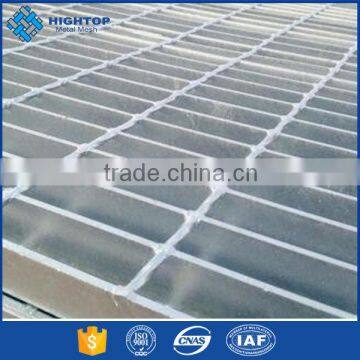

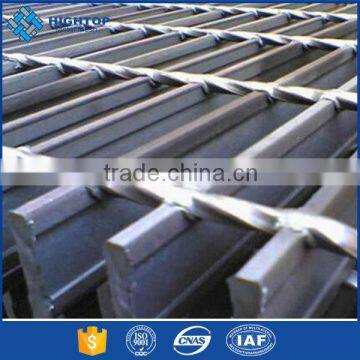

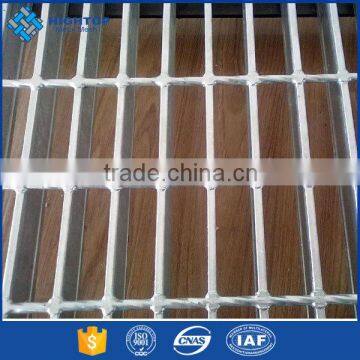

plain type steel grating
Steel Grating is known for its durability and surface hardness. The patented steel coating is applied to steel grating in a plasma spray random hatch matrix, resulting in peaks and valleys of slip resistance. The coating is applied at over 4,000 psi and hardened to between 55 – 63 on the Rockwell “C” scale.
From heavy duty to light duty, steel grating is offered in various styles of bar sizes and spacing. Whether you’re looking for a steel grating that can hold fork lift traffic or ADA compliance, we have a style of steel grating to meet your needs. Steel grating can be fabricated to detailed specifications or is available in stock sizes.
Material: Carbon Steel and Stainless Steel
Types of steel grating:
Specification List of Steel Grating
| mesh | size | strand | size | Quality Kg/m2 |
Standard inch France L*S(mm) Weight(kg/panels) |
|
| SW | LW | T | W | WEIGHT | 1000*2000 2.0M2 | 1219*2348 2.972M2 |
| 12 | 30.5 | 1.2 | 1.5 | 2.38 | 4.76 | 10.6 |
| 12 | 30.5 | 1.5 | 1.8 | 3.57 | 7.14 | 10.6 |
| 12 | 30.5 | 2.0 | 3.0 | 7.93 | 15.9 | 23.6 |
| 12 | 30.5 | 2.0 | 2.0 | 5.29 | 10.6 | 15.7 |
| 22 | 50.8 | 1.5 | 2.0 | 2.16 | 4.32 | 6.42 |
| 22 | 50.8 | 2.0 | 2.0 | 2.88 | 5.76 | 8.65 |
| 22 | 50.8 | 3.0 | 3.0 | 6.49 | 13.0 | 19.3 |
| 34 | 76.2 | 1.5 | 2.0 | 1.40 | 2.8 | 4.16 |
| 34 | 76.2 | 2.0 | 2.5 | 2.33 | 4.66 | 6.92 |
| 34 | 76.2 | 3.0 | 3.5 | 4.90 | 9.80 | 14.6 |
| 34 | 76.2 | 3.0 | 3.0 | 4.20 | 8.40 | 12.5 |
| 34 | 76.2 | 4.0 | 4.0 | 7.46 | 14.9 | 22.1 |
| 34 | 76.2 | 4.5 | 5.0 | 10.50 | 21.0 | 31.20 |
| 36 | 101.6 | 4.0 | 5.0 | 8.81 | 17.6 | 26.2 |
| 36 | 101.6 | 4.5 | 5.0 | 9.91 | 19.8 | 29.4 |
| 36 | 101.6 | 4.5 | 6.5 | 12.90 | 25.8 | 38.3 |
| 36 | 101.6 | 6.0 | 7.0 | 18.50 | 37.0 | 55.0 |
| 36 | 101.6 | 6.0 | 6.0 | 15.9 | 31.8 | 47.2 |
| 36 | 101.6 | 6.0 | 6.5 | 17.20 | 34.40 | 51.10 |
| 34 | 135.4 | 4.0 | 5.0 | 9.33 | 18.7 | 27.7 |
| 34 | 135.4 | 4.5 | 5.0 | 10.50 | 21.0 | 31.2 |
| 34 | 135.4 | 5.0 | 6.0 | 14.00 | 28.0 | 41.6 |
| 34 | 135.4 | 6.0 | 7.0 | 19.60 | 39.2 | 58.3 |
Recommended for free-standing Mezzanines or rack supported catwalks and walkways
Available in range of widths, lengths and finishes
Custom manufactured to suit your exact application
Exclusive 'Great Coat' powder coat paint finish available
Steel grating is prevalently used in applications where strength and durability are critical. Steel grating is utilized throughout industrial settings for trench covers, walkways, catwalks, stair treads and various other applications. From manufacturing plants to steel mills, steel grating remains slip resistant, even when covered in oil.
Production process
