Help Center6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3 Diesel Engine Repair Parts, Piston Kits, Ring Set, Liner, Engine Bearing
Related Products
-
6CT8.3 240HP Diesel Engine Parts Piston Kit 3919565 3802281 3923161 3923164US$ 108.6 - 114.6MOQ: 2 Sets -
Hot Sales 6CT PISTON KIT 3802281 3919565 3802281 3923161 3923164 3908750US$ 112.6 - 114.6MOQ: 3 Sets
-
ISC QSC PISTON 4933120US$ 104.6 - 114.6MOQ: 1 Set
-
4933120 , ISC ISCe QSC QSC8.3 Engine Parts Piston Kit 4933120US$ 104.6 - 114.6MOQ: 1 Set
-
QSC QSC8.3 PISTON KIT 4309095 4933120US$ 106.6 - 114.6MOQ: 5 Sets
Specifications For 6CT Piston
| Commodity: | Engine Piston |
| Model: | 6CT PISTON |
| Part No: | 3923164 |
| other models: | 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3 |
| Cylinder dia: | 114.0mm |
| Piston Pin Size: | 45.0 mm* 91.0mm |
| Length: | 120.3 mm |
| Remarks: | Alfin |
Features of 6CT Engine Piston Kit
1: AL109 piston
2: Top Quality, 2 year warranty
3: Fast Delivery & Good packing(harden cartons and plywood)
4: One-step service

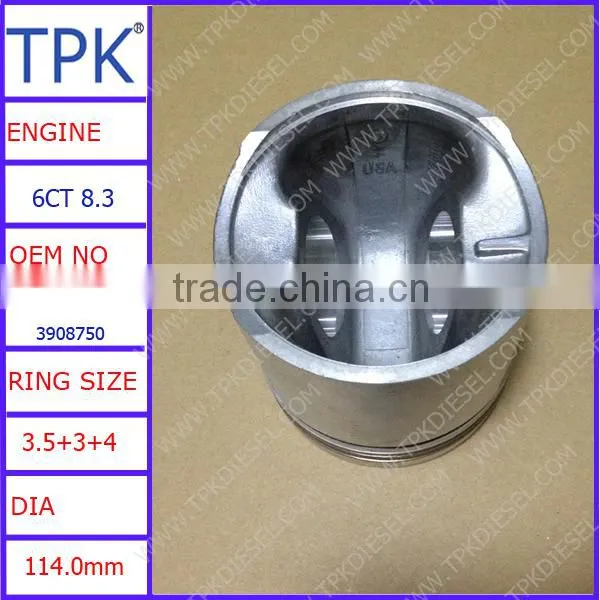

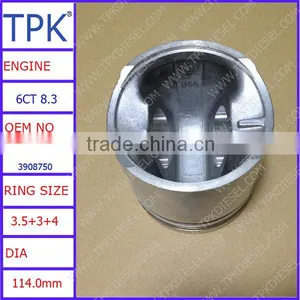

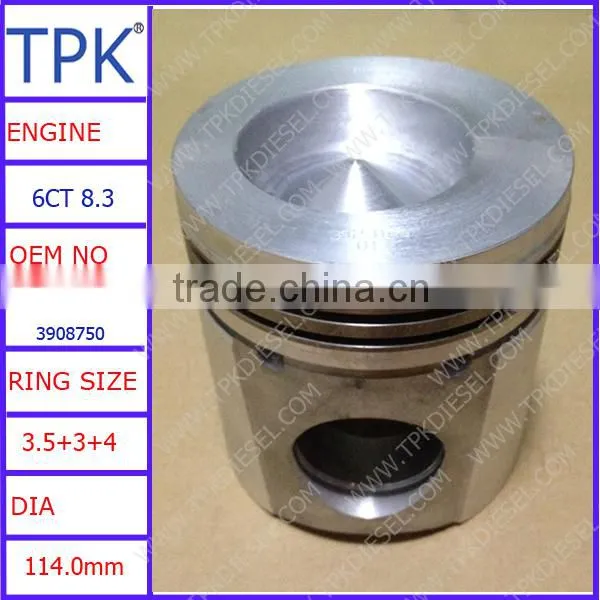

Reference Pictures of 6C 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
Engine Piston Kit
Shipping
(1): By sea
(2): By air
(3): By express (DHL, FEDEX, TNT, EMS... )
Packing:
(1): TPK packing or nuetral packing
(2): according to your requirments
Payment
(1): TT (30 % in Advanced, 70 % before Shipment)
(2): Western Union
(3): Cash
Warranty
All our parts warranty 1 years, If problems from our parts itself, we will take all responsibilty on the spare parts and service.
If the troubles come from human factors, should take responsible for it.
Guangzhou TPK Diesel Parts Co.,Ltd, Build in 1996, is a professional manufacturer on Diesel Piston, Piston ring, Cylinder Liner, Head Gasket & Overhaul Gasket Kit. TPK has been cooperating with OEM factory in China for several years, running business mainly in imported diesel engines . All products in TPK have passed the national quality supervision on combustion engines and obtained certificates from ISO9002.
Till now, TPK has four storehouses in Guangzhou, occupying an area of over 5,000 square meters. The number of employees in TPK reaches up to 100, among which include 20 sales personnel in China, 15 sales personnel outside China, 10 QC personnel. TPK products command a ready market in Europe, Middle East, South America, North America, and Southeast Asia and are well received.
With the principles of international brand, good quality, shared resources, and serving the world, TPK endeavors to provide perfect accessories replacement solutions for customers. TPK is ready to cooperte with you to reach a win-win future.
Q: Do you have any other engine parts?
A: yes, we have more than 10 kinds of engine repair parts like the followings:
1: Cylinder block, cylinder head, crankshaft, camshaft, connecting rod.
2: Liner Kits. Piston kits, piston ring set, cylinder liner (sleeve), Pin bush.
3: Full / Overhaul gasket kit, head gasket,Oil Seal.
4: Engine bearing, Main bearing, con rod bearing,Camshaft Bearing,thrust washer
5: Engine valve, valve seat, valve guide.
6: Oil Pump, water pump,
7: Starter, alternator
9: Oil cooler, radiator
10: Turbocharger
Q: Do you have Some Other excavator engine models?
A: yes, for CMS, we have the following models
(1): 4BT,4BT3.9,4BTA,6BT,6BT5.9,6BTA,6BTA5.9,
(2): 6CT,6CTA,6CTAA,6CT8.3,6CTA8.3,6CTAA8.3
(3): 6L,L375,NH220,N14,NTA14,L10,LT10,
(4): NT855,NTA855,NTC,K19,KTA19,KTAA19,K38,KTA38,KTAA38
(5): ISBE, ISB3.9,ISB5.9, ISB6.7,ISCE,ISDE,ISDE107,
(6): M11,ISM,ISM11,QSM, ISF2.8,ISF3.8
(7): ISL,ISLE,ISL340,ISL375,L375,T375,ISLE375,
(8): QSB,QSB6.7,QSC,QSL,ISX,QSX,ISX15,QSX15
Q: Do you have Some Online service?
A: yes, we have Whatspp, Wechat, Skype, YAHOO, QQ...
| 6CT,210HP | Piston | 3923163 3802397 (KIT) | 114.00 | 120.3 | 78.8-21.7 | 45*91 | Double Alfin | |
| 6CT,215HP | Piston | 3929161 3923367 | 114.00 | 120.3 | 45*91 | Double Alfin | ||
| 6CT,230HP | Piston | 3923537 | 114.00 | 120.5 | 45*91 | |||
| 6CT,240HP | Piston | 3923164 3802398 (KIT) |
114.00 | 120.4 | 78.9-21.3 | 45*91 | Double Alfin | |
| 6CT,260HP | Piston | 3925878 3802601 (KIT) | 114.00 | 120.3 | 78.8-23.9 | 45*91.1 | Double Alfin,ANODIZING | |
| 6CT, 300HP | Piston | 3917707 3802263 (KIT) 6743-31-2110 |
114.00 | 120.5 | 79 | 79.0-25.0 | 45*91.1 | Double Alfin,ANODIZING |
| 6CT, 325HP | Piston | 3926963 | 114.00 | |||||
| 6CT | Piston | 3923164 3802398 | 114.00 | 120.3 | 78.8 | 45*91.4 | Double Alfin | |
| 6CTA 8.3 | Piston | 3929161 3802657 (KIT) |
114.00 | 120.4 | 78.9-21.3 | 45*91 | Double Alfin |
3948095-F Cylinder liner 6 1/05/98 to Present (Previously 3944344) (.24" between bores, 5.15 flange OD, 3mm
shorter)
effective with esn 45636466; effective with esn 21301477
3907177-F Cylinder liner oring 6
3924445-F Shim cylinder liner 0.25mm Oversize (0.010 in.)
or 3800328 / 3948095 liner
3924446-F Shim cylinder liner 0.38mm Oversize (0.015 in.)
3924447-F Shim cylinder liner 0.50mm Oversize (0.020 in.)
3924448 Shim cylinder liner 0.75mm Oversize (0.030 in.) [OEM]
3924449 Shim cylinder liner 1.00mm Oversize (0.040 in.) [OEM]
Marine applications:
PK9566-F Piston kit Piston, rings, pin, retainers [3919566 piston]
3802280-F Piston kit Piston, rings, retainers [3919566 piston]
3919566-WP-F Piston kit Piston, pin, retainers [3919566 piston]
3919566-F Piston body
Non-turbo:
PK3165-F Piston kit Piston, rings, pin, retainers [3923165 piston]
3802396-F Piston kit Piston, rings, retainers [3923165 piston]
3923165-WP-F Piston kit Piston, pin, retainers [3923165 piston]
3923165-F Piston body
Charge Air Cooled, 1991:
PK9247-F Piston kit Piston, rings, pin, retainers [3919247 piston]
3802344-F Piston kit Piston, rings, retainers [3919247 piston]
3919247-WP-F Piston kit Piston, pin, retainers [3919247 piston]
3919247-F Piston body
Charge Air Cooled, 1991:
PK7707-F Piston kit Piston, rings, pin, retainers [3917707 piston]
3802263-F Piston kit Piston, rings, retainers [3917707 piston]
3917707-WP-F Piston kit Piston, pin, retainers [3917707 piston]
3917707-F Piston body
Non-emission, Turbo:
PK3163-F Piston kit Piston, rings, pin, retainers [3923163 piston]
3802397-F Piston kit Piston, rings, retainers [3923163 piston]
3923163-WP-F Piston kit Piston, pin, retainers [3923163 piston]
3923163-F Piston body
Non-emission, Turbo Aftercooled:
PK3164-F Piston kit Piston, rings, pin, retainers [3923164 piston]
3802398-F Piston kit Piston, rings, retainers [3923164 piston]
3923164-WP-F Piston kit Piston, pin, retainers [3923164 piston]
3923164-F Piston body
Emissions:
PK9161-F Piston kit Piston, rings, pin, retainers [3929161 piston]
3802657-F Piston kit Piston, rings, retainers [3929161 piston]
3929161-WP-F Piston kit Piston, pin, retainers [3929161 piston]
3929161-F Piston body
250HP Grade A-D:
PK5878-F Piston kit Piston, rings, pin, retainers [3925878 piston] Grade A
3802601-F Piston kit Piston, rings, retainers [3925878 piston] Grade A
3925878-WP-F Piston kit Piston, pin, retainers [3925878 piston]
3925878-F Piston body Grade A; 210-250 hp
PK5879-F Piston kit Piston, rings, pin, retainers [3925879 piston] Grade B
3802602-F Piston kit Piston, rings, retainers [3925879 piston] Grade B
3925879-WP-F Piston kit Piston, pin, retainers [3925879 piston]
3925879-F Piston body Grade B; 210-250 hp
PK5880-F Piston kit Piston, rings, pin, retainers [3925880 piston] Grade C
3802603-F Piston kit Piston, rings, retainers [3925880 piston] Grade C
3925880-F Piston body Grade C; 210-250HP
PK5881-F Piston kit Piston, rings, pin, retainers [3925881 piston] Grade D
3802604-F Piston kit Piston, rings, retainers [3925881 piston] Grade D
3925881-F Piston body Grade D; 210-250HP
300HP Grade A-D:
PK6961-F Piston kit Piston, rings, pin, retainers [3926961 piston]
3802460-F Piston kit Piston, rings, retainers [3926961 piston]
3926961-F Piston body Grade A; 275-300HP
PK6962-F Piston kit Piston, rings, pin, retainers [3926962 piston]
3802461-F Piston kit Piston, rings, retainers [3926962 piston]
3926962-F Piston body Grade B; 275-300HP
PK6963-F Piston kit Piston, rings, pin, retainers [3926963 piston]
3802462-F Piston kit Piston, rings, retainers [3926963 piston]
3926963-F Piston body Grade C; 275-300HP
PK6964-F Piston kit Piston, rings, pin, retainers [3926964 piston]
3802568-F Piston kit Piston, rings, retainers [3926964 piston]
3926964-F Piston body Grade D; 275-300HP
RINGS
3802210-F Bearing main set 1 std [when out use: 3945917]
3802211-F Bearing main set 1 0.25mm u/s [when out use 3945918]
3802212-F Bearing main set 1 0.50mm u/s [when out use 3945919]
3802213-B Bearing main set 1 0.75mm u/s
171825 Bearing main set 1 1.00mm u/s [3802214]
3945917-F Bearing main set 1 std (narrow); (6) 3944158, (7) 3944153, (1) 3944158
3945918-F Bearing main set 1 0.25mm u/s (narrow); (6) 3944159, (7) 3944154, (1) 3944164
3945919-F Bearing main set 1 0.50mm u/s (narrow); (6) 3944160, (7) 3944155, (1) 3944165
3901430-F Bearing rod half 12 std
3901431-F Bearing rod half 12 0.25mm u/s
3901432-F Bearing rod half 12 0.50mm u/s
3901433-F Bearing rod half 12 0.75mm u/s
3901434-F Bearing rod half 12 1.00mm u/s
3945329-F Bearing cam 7 [repl 3901685, 3943199]
3913990-F Bushing con rod 6 [replaced by 3970951]
GASKET & SEALS
4025271S-F Set in-frame 1 (repl 3802624S) Includes new style MLS exhaust manifold gasket
4025271-B Set cylinder head 1 Contains head gasket: graphite, steel core, molded seal areas
3800747-F Set cylinder head 1 .010 o/s head gasket; Includes new style MLS exhaust manifold gasket
3800748-F Set cylinder head 1 .020 o/s head gasket; Includes new style MLS exhaust manifold gasket
3800558-B Set conversion 1 Contains 3938160 pan gasket, 3938737 front gear housing gasket (edge molded rubber)
G1 UPPER GASKETS
3938267-B Gasket cylinder head 1 Contains head gasket: Graphite coated withsteel core, improved sealing areas [repl
3935585]
3935586-F Gasket cylinder head 1 .010 o/s head gasket
3935587-F Gasket cylinder head 1 .020 o/s head gasket
3905449-F Gasket valve cover 1 seal type
3910824-F Oring 6 Valve cover bolt, .070 thick [3910824]
3902466-F Seal oil filler 1 in valve cover
3936993-F Gasket intake 1 Long, 19 holes [repl 3914311]
3921440-F Gasket intake 1 Short, 15 holes
3932063-F Gasket manifold exhaus 6 New design Graphite coated, Multi-Layer Steel (MLS) [repl 3929012, 3911942]
G2 FRONT GASKETS
3979349-F Gasket front plate 1 Plate to block [replaces: 3938737, 3929253, 3281721, 3914303]
3917779-F Gasket front cover 1
sn -> 44500127
3917780-F Gasket front cover 1
sn 44500128 - 45075642
3916042-F Gasket air compressor 1
3918340-F Gasket hyd pump 1
3913994-F Oring timing pin 1
3915772-F Oring timing pin hsg 1 Rectangular ring (replaces 3914092)
3903475-F Oring tach drive cover 1 Rectangular ring
G3 CRANK SEALS
3353977-F Seal crankshaft front 1 Kit; 3921927 seal, installation sleeve (39804 seal) [3353977; replaces 3921927,
3908139]
4025270-F Seal crankshaft front 1 Kit; 3921927 seal, installation tool, (6) 4946714 lock nuts [4025270; replaces
3353977, 3908139]
3925343-F Seal crankshaft front 1 Seal kit: Seal with wear sleeve (3921928 seal, 3924986 sleeve, 3924987 dust shield)
[3925343]
