3 Phase Line Reactor compatible for 0.75kw Inverter
- 2000000 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | HSLEC | Model Number: | HKSG2-0.8 |
Product Description
3 Phase Line Reactor compatible for 0.75kw Inverter
1.This is DC reactor, which is compatible for frequency inverter. DC reactor that are specially designed for many series for frequency inverter, such as Stravert-iH, Stravert-iG5, and more.
2.For example, with the working voltage of 3AC 380~460V, our HSL119-L105, and HSL119-L106 For details about parameters of our compatible reactor to series for frequency converter, please visit HSLEC website.
Technical parameters
Source | Motor | for Frequency Inverter | 3-Phase Line Reactor | ||||||
Voltage | Power | Model | Output | Phase | Ref. No. | No. | Ref Price | ||
(V) | (kW) | Voltage (V) | Current A | Current (A) | LG | HSL | USD | ||
| 0.4 | 004iG- 4 | 380~460 | 1.3 | 1.4 |
| HSL119-L16 | 1 | 17.65 |
3AC400 | 0.8 | 008iG- 4 | 2.5 | 2.8 |
| HSL119-L17 | 1 | 17.65 | |
| 1.5 | 015iG- 4 | 4.0 | 4.4 |
| HSL119-L18 | 1 | 17.65 | |
| 2.2 | 022iG- 4 | 5.5 | 6.1 |
| HSL119-L19 | 2 | 22.06 | |
| 022S3- 4 | ||||||||
| 3.7 | 037iG- 4 | 8.0 | 8.8 |
| HSL119-L20 | 3 | 30.90 |
Features
1. The line reactor greatly reduces catastrophic drive failures due to transient over-voltage.
2. The low voltage reactor decreases nuisance over-voltage trips due to line transients, drastically:
(1)Utility power factor correction
(2)Switching large AC motor loads
(3)Switching large transformers
(4)High AC line conditions
3. Line-side fuse operation during unsymmetrical voltage sags is reduced to the minimum:
(1)Utility system line-to-ground faults
(2)Unbalanced phase currents
4. The line reactor can also prevent harmonics and effectively improve power factor.
Functions
1. A line reactor can be used for adding line impedance.
2. The inductor also serves to reduce harmonics.
3. It is able to compensate for a low inductance motor.
4. The low voltage reactor acts only as part of a filter to reduce reflected wave.
Data Required With Order Or For Bid Purposes
1. System Voltage (KV)
2. Frequency (Hz)
3. Basic Impulse Level (KV)
4. Reactance/Inductance (Ohms/Micro henries)
5. Continuous Current (A)
6. Short Circuit Levels (Ka) - Time Duration (Sec)
7. Fundamental/Harmonic Frequency levels (Hz)
8. Q Required For Filter Reactors
9. Insulators Supplied Or Not Supplied And TR No. Or Type To Be Used
10. Vertical or Horizontal Mounting
11. Three Phase Side By Side or Vertical Stack Mounting
12. Terminal Configuration
13. Dimensional Limitations
14. Number of Units
The Basic Program Of Testing Includes
1.Routine Tests
2.Impulse Tests
3.Thermal Current Calculation
4.Mechanical Strength Test
5.Impedance and Loss Test
6.Temperature Rise Test
7.Sound Level Test
8.Seismic Analysis
Standard export wooden packing.
Delivery Time
4-30 days after receive the payment
Service Conditions
1. Service Site: Indoor Or Outdoor
2. Ambient Temp.:-40~40 Degree( Or According To Customer's Requirment)
3. Altitude: <=10000m( If It Exceeding To 1000m, Pls Declare In Order).
4. Max. Wind Speed: 35m/S
5. Relative Humidity: <=90%
6. Earthquake Resistant Capability: Horizontal Direction 0.3g Verticle Direction0.15g (Or By Customer's Requirments)
Outline Drawing
Other Terms
1.Established in 1992, Huashenglong Electrical Equipment Company is an ISO9001:2008 certified low voltage inductor manufacturer in China.
2.We have one machining workshop, two wire winding workshops, complete special-use and
universal-use equipment, a complete set of inspection equipment, and large-scale winding
equipment.
3.With reliable quality and low prices, our dry type reactor and power transformer are sold well in
America, Turkey, India, Thailand, Saudi Arabia, Vietnam, Georgia, etc.
1.HSLEC offer a wide variety High Voltage and Low Voltage power products
2.including power transformers, distribution transformers,
3.air core reactors, iron core reactors and line reactors and output reactors compatible to variety
Frequecny Inverters and Governors.
4.In addition, we also can fulfill your OEM requests.
Certificate

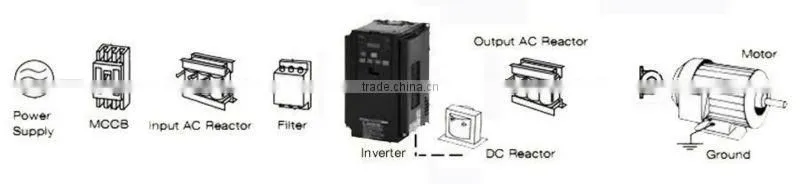

Application
Main product

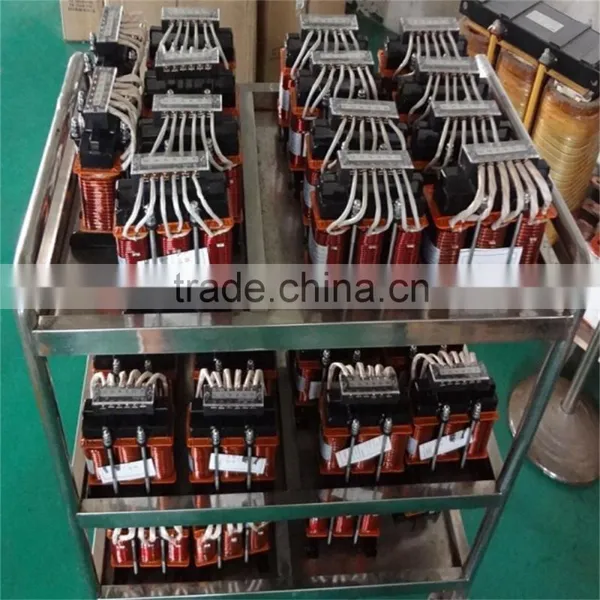

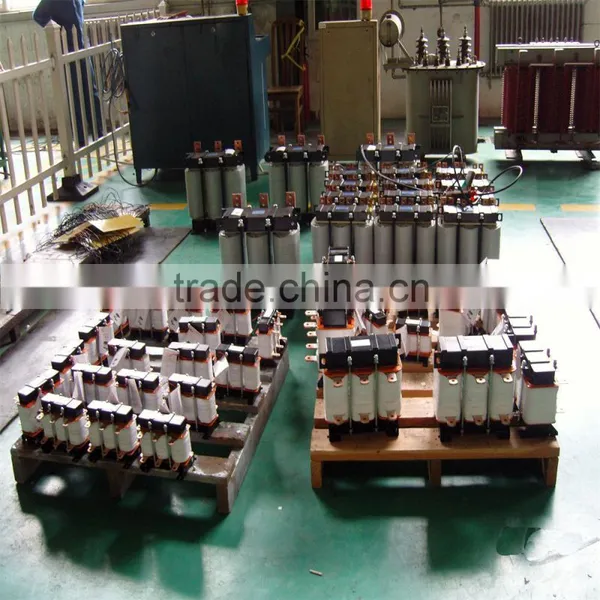

Product photos for 3 Phase Line Reactor compatible for 0.75kw Inverter

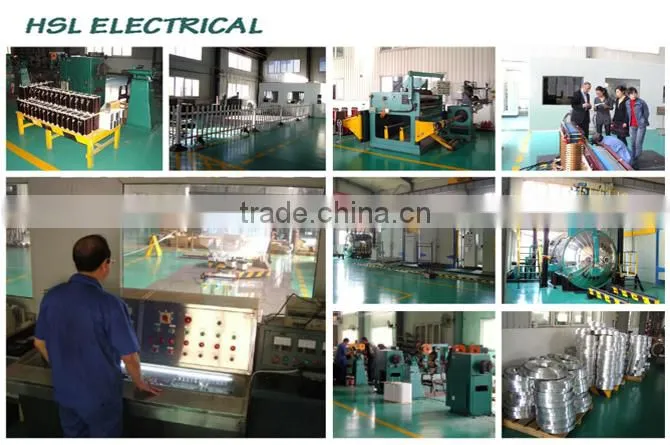

Company and workshop photos
Contact Us
- Qinhuangdao Huashenglong Electrical Equipment Co., Ltd.
- Contact nameMichelle Xu
- Phone86-0335-8560000 -110
- AddressNo. 3, Helanshan Road, Economy & Technology Development Zone
