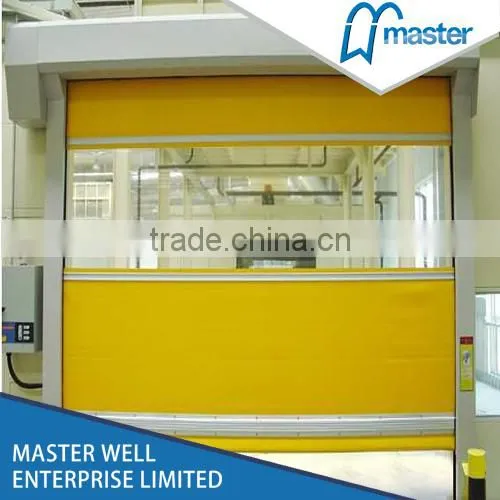

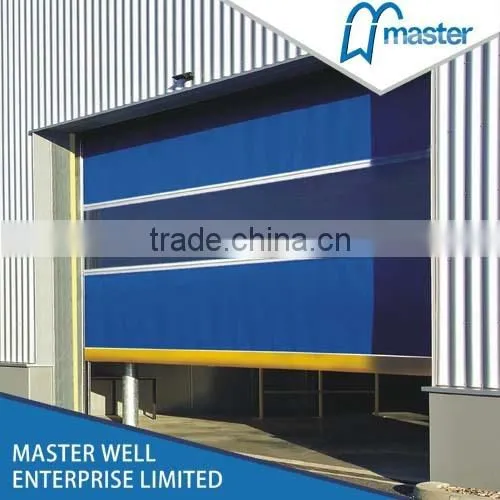

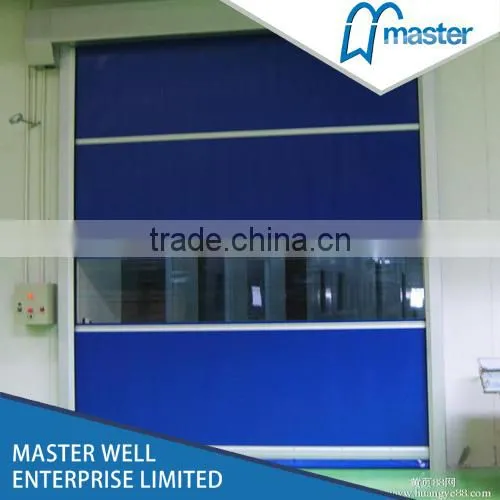

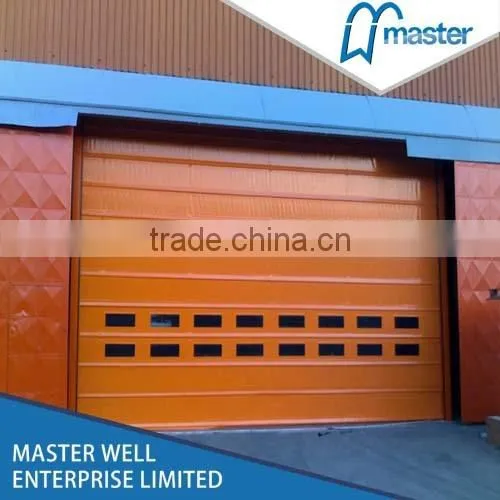

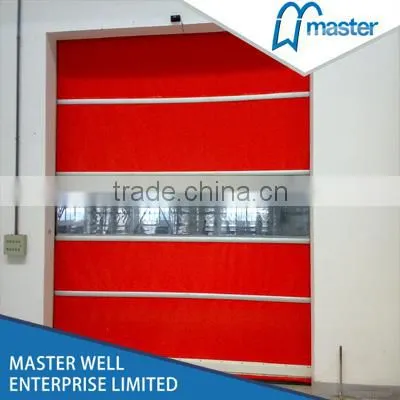

Help CenterPretty Pvc Fast Speed Rolling Door
Related Products
-
Industrial Pvc Profiles Doors and WindowsUS$ 498 - 950MOQ: 1 Set -
Industrial High Speed PVC DoorUS$ 1,299 - 1,999MOQ: 1 Set
-
Pretty Door Pvc DoorUS$ 799 - 999MOQ: 1 Set
-
China Supplier Of High Speed Fast Rolling DoorUS$ 1,999 - 2,599MOQ: 1 Set
-
Industrial PVC High Speed Shutter Doors/Fast Rolling Door Quality Choice Most PopularUS$ 2280.00 - 2680.00MOQ: 1 Set
Description
DESCRIPTION | |
Motor Brand: |
SNMA, SEW, BS |
Input Voltage: |
220V 50HZ / 380V 50HZ |
Motor Power: |
750W - 2200W |
Running Speed: |
0.7 - 1.2 M/S (Depends) |
PLC Control Panel: |
MITSUBISH, IDEC, KEWEI(China) |
Inverter / AC Driver: |
SHIHLIN |
Revolving encoder: |
TOFI |
Curtain Material: |
SIOEN high-strength polyster textile fiber, with bothside polyvinyl chloride coating |
Curtain Thickness: |
0.8mm, 1.0mm |
Curtain Color: |
Yellow, Red, White, Blue |
|
Wind Resistance Pressure: |
180 N/M2 |
Tolerancde Frequency: |
10 times/min, Inverter opening 800-1000 times/day |
Steel Construction: |
Made of 2.0mm cold-roll steel plate from BAO Steel, with painted treatment |
Safety Performance: |
Infrared beam protection system |
Standard Control mode: |
Touching type wall switch |
Emergency operation: |
Available |
Optional Control Mode: |
Geomagnetic right, Radar, Stretcing wire switch, Linkage interlock, Pull rope, etc |
Features:
1. High intensity fire insulation, sound insulation, spray the surface corrosion.
2. Install tamper device, effectively protect your property.
3. Bearing pulleys easy adjustment to ensure smooth lifting process without noise
4. Double security guards, fall protection + anti-fracture "
5. Using frequency: 2000 times a day
6. Convenient to operate
7. Visible window available
Overview:
1. φ140 Transmission shaft
2. motor housing and transmission system
3. door curtain
4. aluminum alloy reinforce rib
5. PVC transparent door curtain
6. infrared photoelectric switch
7. track cover
8. safety air bag
9. 220V/380V power
10. drive system
11. control power line
12. control box
13. shaft case
14. aluminum alloy reinforce rib
15. PVC transparent door curtain
16. PVC fabric curtain
For Motor
Industrial Sectional garage door

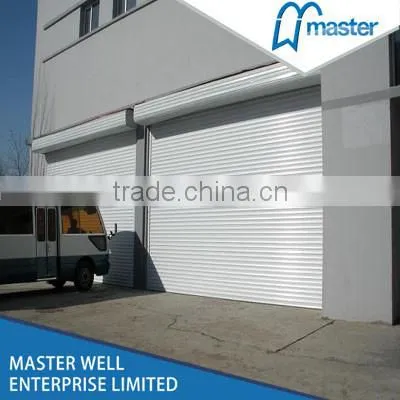

Aluminum Automatic Rolling shutter door
Advantage:
- Low MOQ: One set is available for checking our quality first conveniently.
- Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.
- Good Service: Our professional service before and after sale.
- The reasonable price
- Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
- OEM is welcome
About Master Well:
Master Well Enterprise Limited specializes in Automatic Doors & Windows. Relying on our excellent business performance and R&D, we have enjoyed a globally recognized reputation in successfully providing quality products at competitive prices and professional technical services to a wide range of clients worldwide.
We are the team, just contact us to have a win-win relationship!
We are always ready to support for you to provide the professional service for you.
