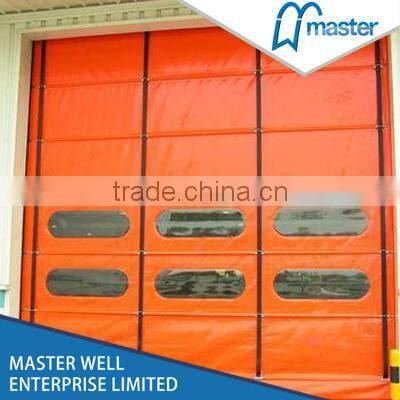

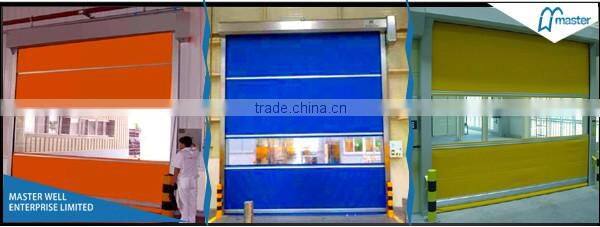

European Style High Quality High Speed PVC Roll up Door
Features:
1. High intensity fire insulation, sound insulation, spray the surface corrosion.
2. Install tamper device, effectively protect your property.
3. Bearing pulleys easy adjustment to ensure smooth lifting process without noise
4. Double security guards, fall protection + anti-fracture "
5. Using frequency: 2000 times a day
6. Convenient to operate
7. Visible window available
| Motor Brand: | SNMA, SEW, BS |
| Input Voltage: | 220V 50HZ / 380V 50HZ |
| Motor Power: | 750W - 2200W |
| Running Speed: | 0.7 - 1.2 M/S (Depends) |
| PLC Control Panel: | MITSUBISH, IDEC, KEWEI(China) |
| Inverter / AC Driver: | SHIHLIN |
| Revolving encoder: | TOFI |
| Curtain Material: |
SIOEN high-strength polyster textile fiber, with bothside polyvinyl chloride coating |
| Curtain Thickness: | 0.8mm, 1.0mm |
| Curtain Color: | Yellow, Red, White, Blue |
| Wind Resistance Pressure: | 180 N/M2 |
| Tolerancde Frequency: | 10 times/min, Inverter opening 800-1000 times/day |
| Steel Construction: | Made of 2.0mm cold-roll steel plate from BAO Steel, with painted treatment |
| Safety Performance: | Infrared beam protection system |
| Standard Control mode: | Touching type wall switch |
| Emergency operation: | Available |
| Optional Control Mode: | Geomagnetic right, Radar, Stretcing wire switch, Linkage interlock, Pull rope, etc |
Products:
1 With stronger anti-load wind bar for wind load.
2 Wireless safety edge for shoulder protection during the door
operation.
3 Viewing windows or transparent stripe will provide the convenience
during the door operation.
4 Build-in Photo cell provide the unnecessary opening and closing
caused by the wind pressure.
5. Locker equipped with main Switch for unnecessary opening of the
control box.
6. Emergency handle to meet the power off status.
7. Free maintenance on the door.
Safe Systems
Photoelectric sensor-------installed on the side tracks, with emergency stopping reaction when sensing obstacles
Safe edge bottom-------when the people or vehicle touch the bottom edge of falling door,it bound up automatically
Emergency stop protection------with emergency stop buttom on control panel
Benefits
1.The safest, fastest, best sealing high speed doors with the lowest maintenance cost in the industry.
2.Designed for exterior use with storm force wind exposure.
3.Our doors are built to handle your ups and downs when it comes to keeping business operating, and have been tested without failure opening 8,000 times per day. The reason for this incredible reliability lies in the engineering and construction of the door itself. With few moving parts and with the inclusion of ultra-high quality components, our doors are virtuallmaintenance free.
4. Crash forgiving and automatically re-inserting fabric rapid roll-up doors.
5. Our all purpose, interior and exterior use, high speed roll-up doors
Q1: What is your MOQ?
A: Our min order is one 20ft container. Sample order is available but we need to use wooden cases package for protection during shipment.
Q2: What is the Max available size of the panels?
A: The max length of panels can be 11.9M to suit the 40ft container. The max width of panels is 550mm.
Q3: Do you have CE certification?
A: Yes, we do have CE certification. We have CE for our complete automatic garage doors.
Q4: Can I get a sample of garage door for quality check?
A: Sample is available.
Q5: How can I get a price of needed garage door?
A: 1. Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q6: Which kinds of payment you accept?
A: We usually accept T/T in advance, L/C for large sum, Western Union, etc. If you prefer other payments terms, please discuss with us.
Advantage:
- Low MOQ: One set is available for checking our quality first conveniently.
- Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.
- Good Service: Our professional service before and after sale.
- The reasonable price
- Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
- OEM is welcome.
About Master Well:
We have been in garage door for years, including the panel and accessories, such as torsion spring, top bracket, bottom bracket, central bearing bracket, roller ( nylon, plastic or steel roller), lift handle, cable drum, tube shaft, flag bracket and so on. Also we provide the service of garage door installation, hope we can be helpful in your business.
We are the team, just contact us to have a win-win relationship!
We are always ready to support for you to provide the professional service for you.
