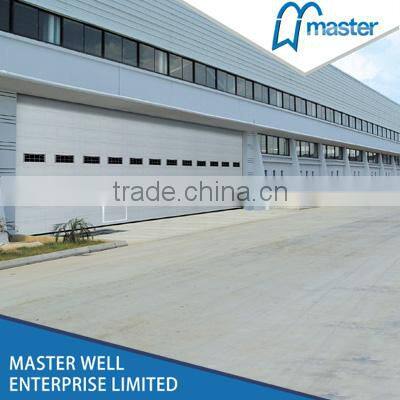

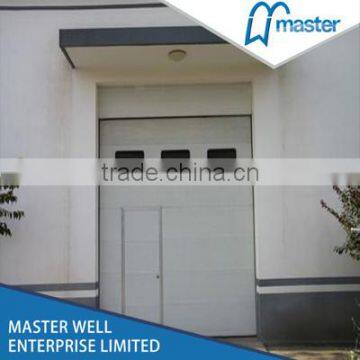

CE Certificate Industrial Garage Doors with Pedestrian Door
Product
Operate smoothly and quietly

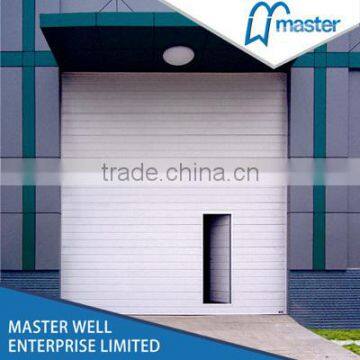

With windows or passing door
With more than 8 years experience
Been exported to many overseas countries
Full complete garage door drawing
Please contact us, we are glad to show our technical details of accessories as the garage expert.
We here provide the double track garage door drawing.
Specifications of industrial garage door
a.Material: Galvanized steel with PU foaming inside
b.Material Construction: Steel-foam-steel, sandwich panel
c.Thickness of the steel plate: 0.35/0.45mm both available
d.Thickness of the panel: 40mm or 50mm
e.Section style: Non-finger protection (SN40)
Finger protection (SF40S,SF40)
f.Section size range: 430mm-550mm in height, Max 12000mm in width

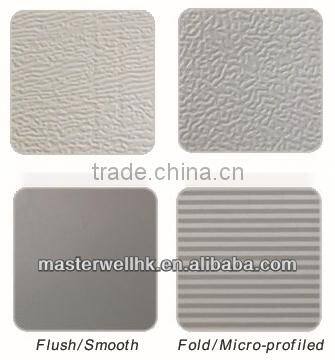

g.Section surface finish: Wood grain, orange peel, flush
h.Front-side design: Wood grain, with Rectangle/stripes design
i.Backside design: Wood grain, with Stripe design
j.Accessories: Single Track with min headroom for 350mm;
Double Track with min headroom for 150mm
k.Door Openers: AC220V or 110V; DC Motor; 800-1500N
l.Opening Way: Electrical control and Manual operation
m.Color: White (RAL9016), other colors can be customized
Specifications of industrial garage door
a.Material: Galvanized steel with PU foaming inside
b.Material Construction: Steel-foam-steel, sandwich panel
c.Thickness of the steel plate: 0.35/0.45mm both available
d.Thickness of the panel: 40mm or 50m
e.Section style: Non-finger protection (SN40)
Finger protection (SF40S,SF40)
f.Section size range: 430mm-550mm in height, Max 12000mm in width
g.Section surface finish: Wood grain, orange peel, flush
h.Front-side design: Wood grain, with Rectangle/stripes design
i.Backside design: Wood grain, with Stripe design
j.Accessories: Single Track with min headroom for 350mm;
Double Track with min headroom for 150mm
k.Door Openers: AC220V or 110V; DC Motor; 800-1500N
l.Opening Way: Electrical control and Manual operation
m.Color: White (RAL9016), other colors can be customized
General Information of Industrial Garage Door Panel
a.Galvanized steel garage door with rectangle wood grain design
b.Energy saving & thermal insulation
c. With PU foam inside, superior R-value
d. Steel-foaming-Steel, sandwich construction
e. Rust-resistant and color retention
f. Hardware system of EU safety standard
g. Many trend colors offered at favorable prices
h. Reliable performance & years of service
Panel Drawings
For your reference, we will provide the panel you want and match the full complete accessories for you:
Orange with 3 Wide Line Garage Door Accessories for Garage Door

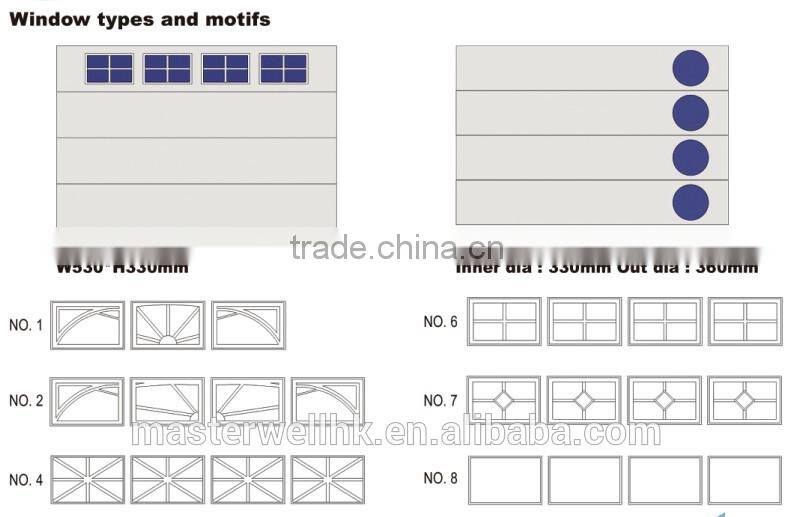

1.The panel can be inserted the windows to allow daylight to enter your garage, provide it with further uses,
e.g. as a workshop or hobby room. Just see the following pictures.

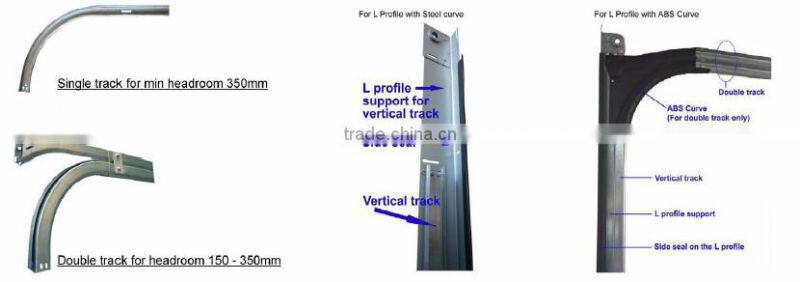

2.Orange with 3 wide line garage door Different Tracks
A. Standard equipment (Junior equipment)
a.Standard Single Track (SST): 1 pair vertical track and 1 pair horizontal track with jamb bracket, for min headroom 350mm
b.Standard Double Track (SDT): 1 pair vertical track, 1 pair horizontal track and 1 pair LHR horizontal track, with jamb bracket, for min headroom 150mm
B. L profile support (Senior equipment)
c.L profile with Single track L(LST): 1 pair vertical track, 1 pair horizontal track with L profile support, for min headroom 350mm
d.L profile with Double track (LDT): 1 pair vertical track, 1 pair horizontal and 1 pair LHR horizontal track with L profile support, for min headroom 200mm
C.Superior equipment
e. L profile support with Double track (SLDT): 1 pair vertical track, 1 pair horizontal track and 1 pair LHR horizontal with L profile support for min headroom 200mm
ABS Curve instead of steel curve
Plus Spring Anti-break device
3. For the automatic motor use, we can provide the wireless wall switch, photocell, wireless pin code lock and others. Any optional you would like, just contact us.

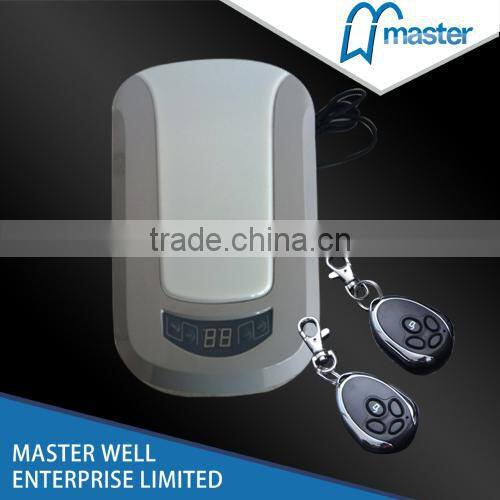

Garage door opener
Specifications
Rolling Code
Input Power: AC220V, 50HZ/ AC110V, 60HZ
Motor Power: DC 24V
Radio Frequency: 433.92MHz
Output Torque: 8N.M, 10N.M, 12N.M, 15N.M
Max Lifting height: 3.6m
Working Environment: -20°C to +70°C
Protection Class: IP20
Standard Equipment: 2 transmitters, steel guide and other mounting brackets
Options: Wall switch, photocell
Our innovation
Best Service At Master Well Enterprise, our #1 priority has always been providing our clients with great quality products and superior customer service.
Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.
Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings over to you!
Unbeatable Quality We always supply good quality also leading products to our VIP customers.
Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your customers.
Special Offers In order to maintain our competitive edge, we are constantly running special offers on our products, consumer goods, and design services. Contact our sales team to see how we can help you save a lot of money.
Special support We have a policy term to support our VIP customers for products also payments.
What you want is what you get.
