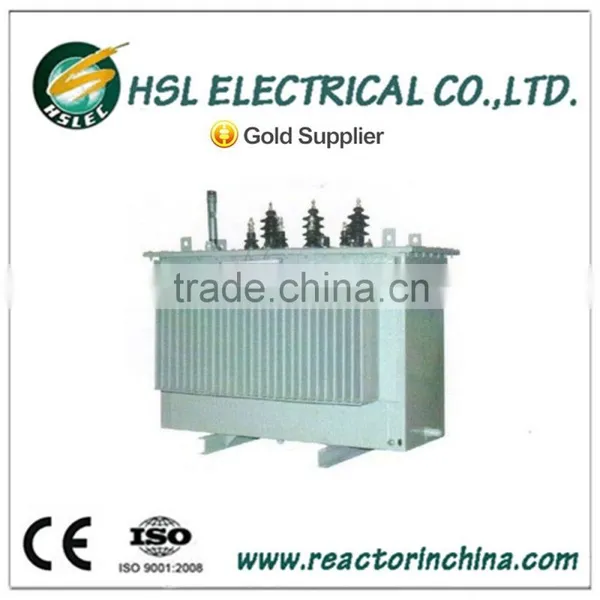

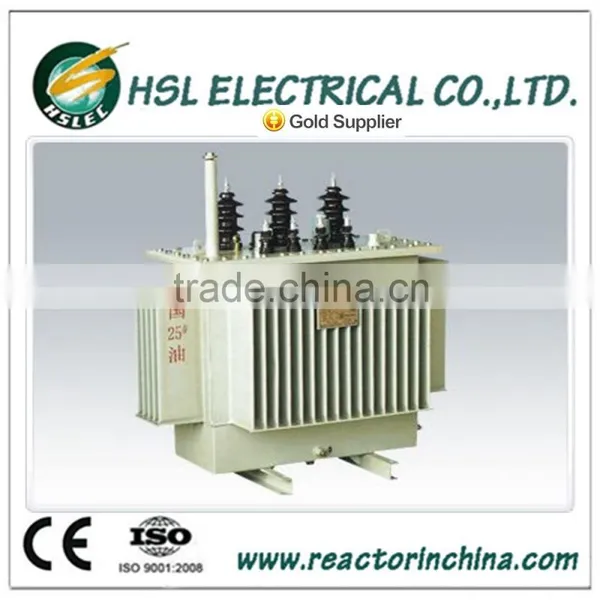

10KV Sealed Type Amorphous Core Oil Transformer Three Phase

10KV Sealed Type Amorphous Core Oil Transformer Three Phase thumbnail-1
10KV Sealed Type Amorphous Core Oil Transformer Three Phase thumbnail-2
10KV Sealed Type Amorphous Core Oil Transformer Three Phase thumbnail-3
10KV Sealed Type Amorphous Core Oil Transformer Three Phase thumbnail-4
10KV Sealed Type Amorphous Core Oil Transformer Three Phase thumbnail-5
10KV Sealed Type Amorphous Core Oil Transformer Three Phase thumbnail-6
10KV Sealed Type Amorphous Core Oil Transformer Three Phase photo-1

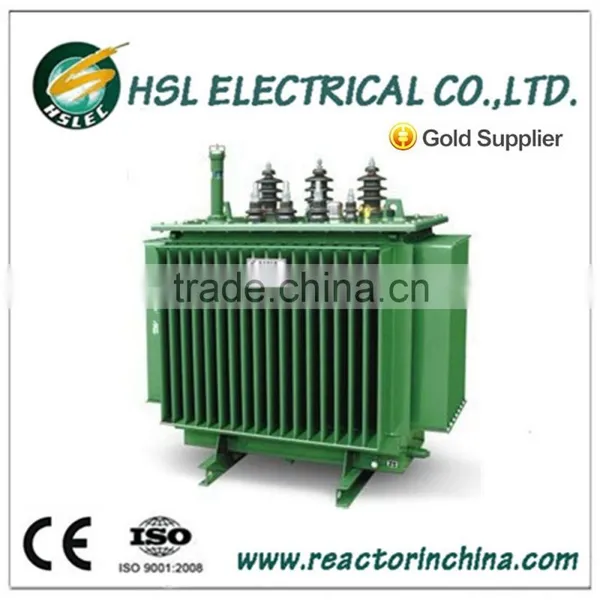

10KV Sealed Type Amorphous Core Oil Transformer Three Phase photo-2

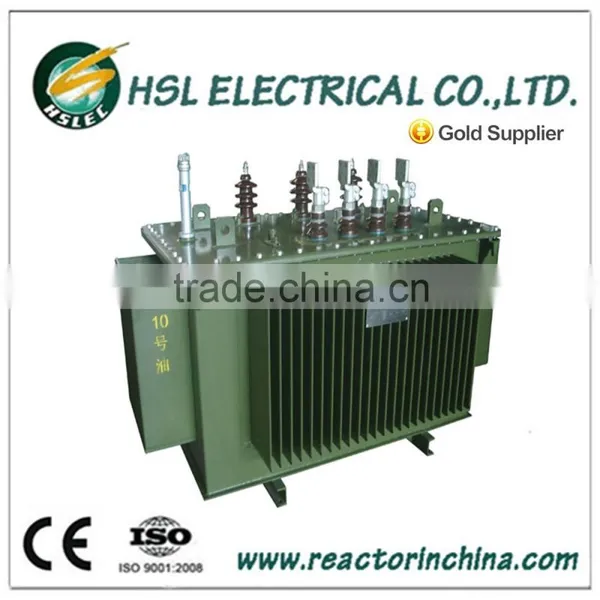

10KV Sealed Type Amorphous Core Oil Transformer Three Phase photo-3
10KV Sealed Type Amorphous Core Oil Transformer Three Phase photo-4
10KV Sealed Type Amorphous Core Oil Transformer Three Phase photo-5

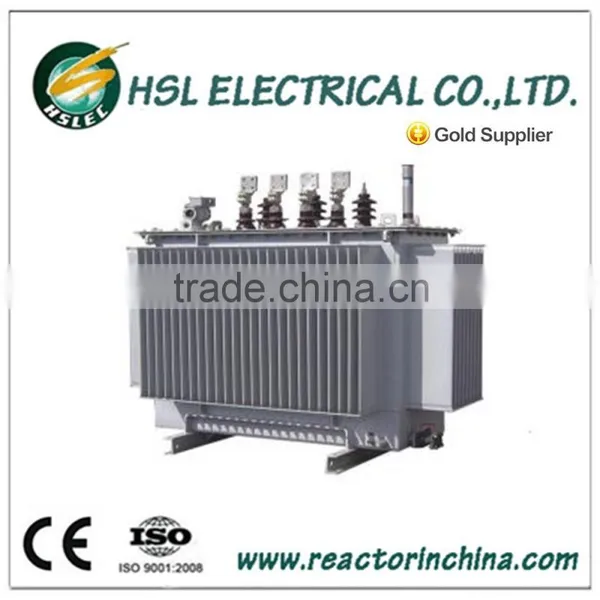

10KV Sealed Type Amorphous Core Oil Transformer Three Phase photo-6
US$ 2,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HSLEC
Model Number:
S(B)H15-M
Contact Supplier Request Quote Chat Now
Qinhuangdao Huashenglong Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HSLEC
Model Number S(B)H15-M
Usage Power
Phase Other, Three, Three
Coil Structure Toroidal
Coil Number Other, other





    10KV sealed type amorphous core oil transformer three phase





Product Overviews



 Brief Introduction:



1.Full-filled sealed



2.Based amorphous alloy elements are iron, nickel,cobalt,silicon,boron,carbon and other components,is a soft magnetic material to the same sex,magnetic power is small,there is no domain wall movement impede structural defects,the thickness of very thin,only 0.027mm,the corresponding filling factor smaller,only 0.75 to 0.8,resistivity is high,is the silicon steel plates 3 to 6 times,5 times the hardness of the silicon steel,amorphous alloys areparticularly sensitive to stress.



3. S(B)H15-M-30~2500/6~10 series

load less products based on the standard value in the GB/T6451 down 15%,no-load loss in GB/T6451 based

on the standard set of 1 values decreased by 70%.Implementation of standard JB/T10138-2002”

oil-immersed distribution transformer amorphous alloy core technical parameters.



  10KV sealed type amorphous core oil transformer three phase 10KV sealed type amorphous core oil transformer three phase



Benefits:



1. Ultralow no-load loss, reduce about 80% of no-load loss of S9 series;



2. Energy saving and great power consuming efficiency;



3. Copper foil winding, strong short circuit resistance ability;



4. Dyn11 coil connection would bring down the influences of harmonic wave on electric network and increase the efficiency of power grid;



5. Fully sealed structure, maintenance free;



6. Environment-friendly amorphous core, less manufacturing electricity comsumption and pollution gas;



7. Low running temperature, slow insulation aging, longer serving life, great reliability;



8. Vacuum oil filling , high stability of insulation.





Application:



The product has been widely used in places with high fireproof&explosionproof requirements, such as power transmission and transformation system, commercial street, sport  stadium, petrochemical enterprise, metro, railway station, airport and etc.

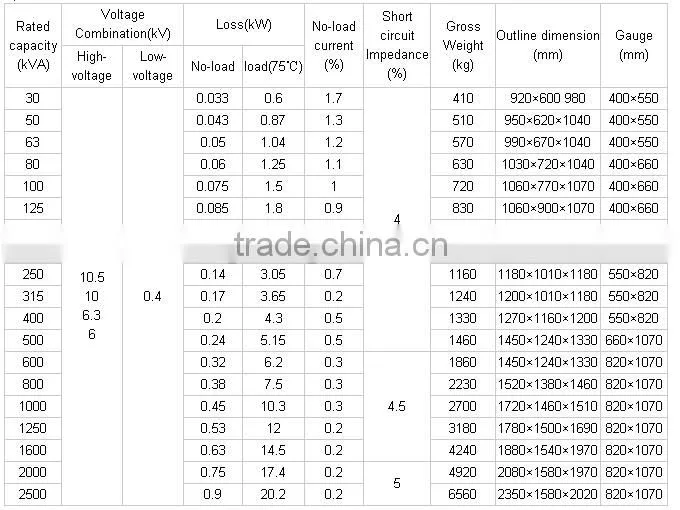

 Main Technical Specifications



10KV sealed type amorphous core oil transformer three phase



NOTE: the above parameter is only for reference.



1. Connection symbol:  DYn11
2. Tapping range of high-voltage:±5% or ±2×2.5%
3. Frequency:50/60Hz

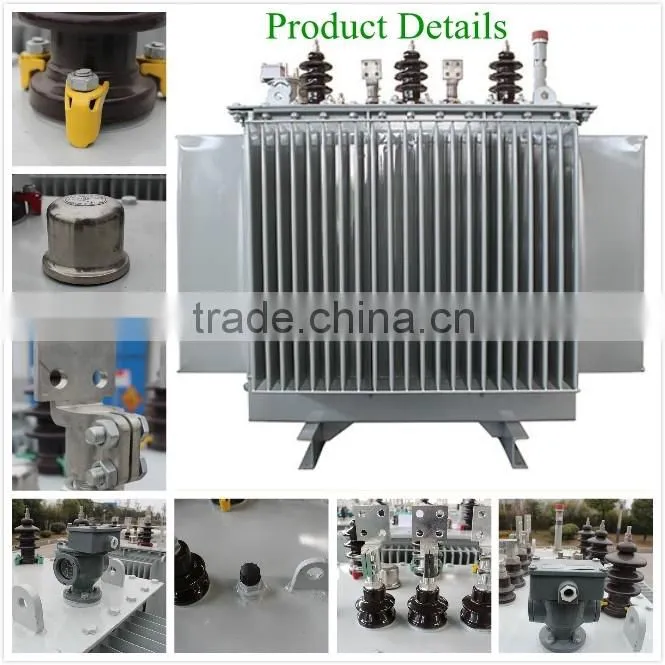

Detailed Images





10KV sealed type amorphous core oil transformer three phase

10KV sealed type amorphous core oil transformer three phase





You May Like

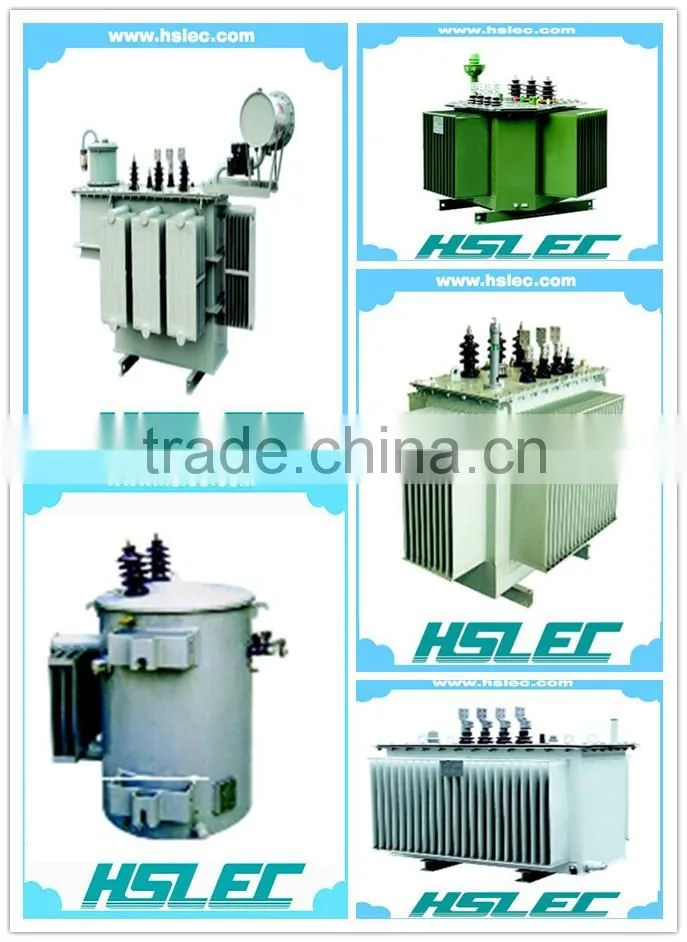

More Oil Immersed Transformers To Choose





S11 S13 Oil type transformer:10-3150KVA,6-33KV,50/60HZ,off load tape changer



SZ11 oil type transformer:10-3150KVA, 6-33KV,50/60HZ, On load tape changer



SCBH15 11KV amorphous alloy dry type transformer:F grade insulation



10KV single phase oil immersed distribution transformer



Other types of oil immersed transformer

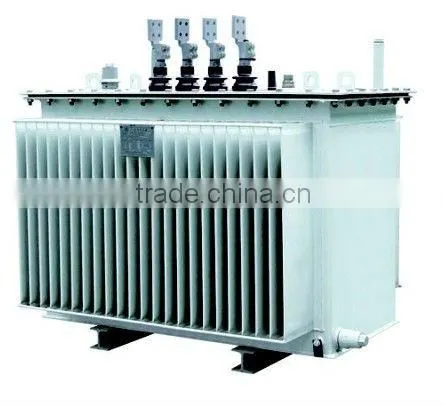

10KV sealed type amorphous core oil transformer three phase











Packaging & Shipping





1.Packing detail:  Main body in nude and the accessories packing in seaworthy standard wooden case or

according to the requirement of customers.

2.Delivery time: usually within 10-30 days after the deposit

3.Delivery by sea, by train, by air and by express



10KV sealed type amorphous core oil transformer three phase

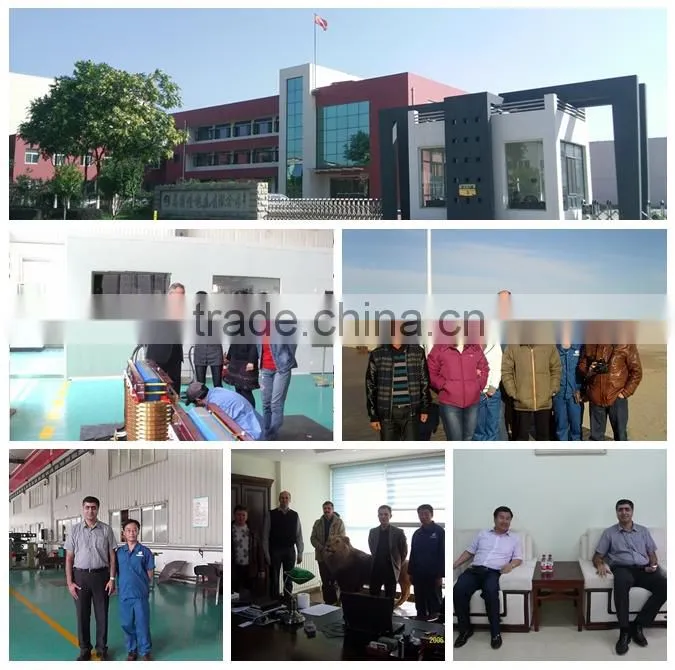

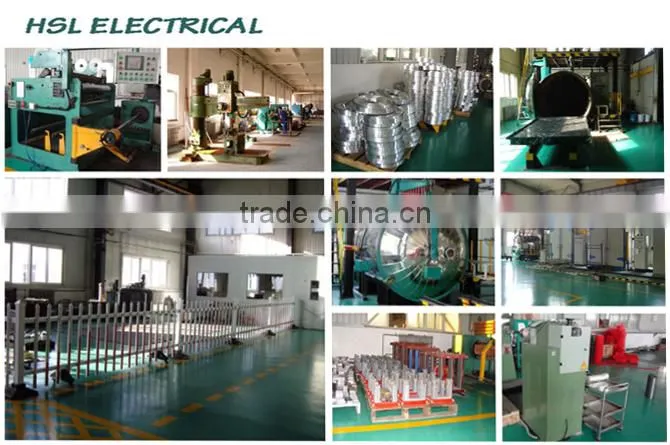

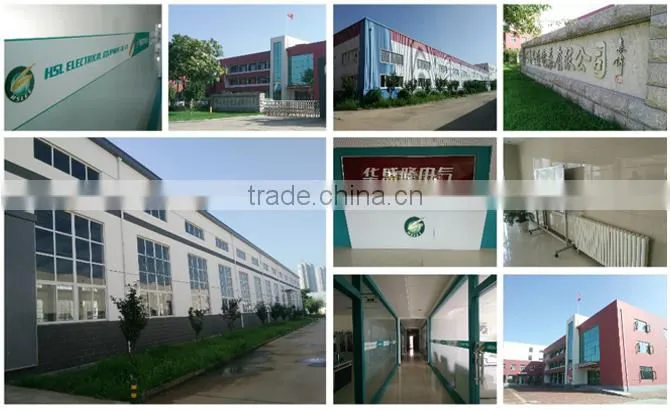

Company Information





HSLEC PROFILE

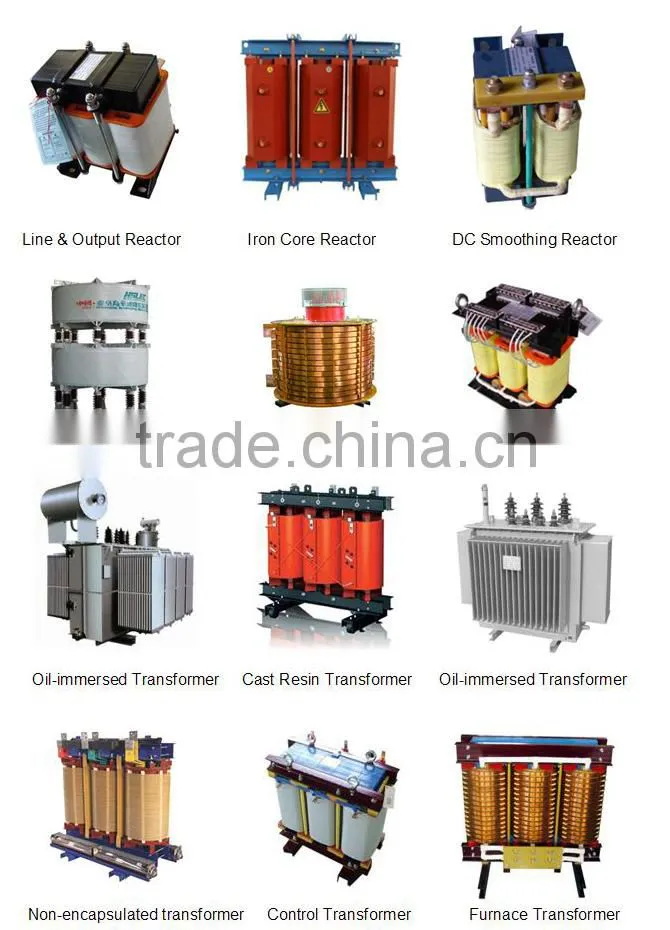

1.Founded in 1992,Huashenglong Electrical Equipment Co.,Ltd.(HSLEC)is a mamufactuer of dry type transformer and dry type reactor,located in Qinhuangdao,a beautiful coastal city of China.



2.We are able to research,develop,and produce many types of dry type transformer and dry type reactor,high and low voltage transformers ,air core reactor,line reactor and so on.



10KV sealed type amorphous core oil transformer three phase

10KV sealed type amorphous core oil transformer three phase





Main Market

As long-term suppliers of many foreign companies such as ABB,Siemens,GE,LG,Fuji,etc.and also supply for many  large domestic corporations such as Wuhan steel,  Shougang , Anshan steel ,Liugang, Taiyuan steel and so on. Our productrs have been sold nationwide and exported to America, India, Thailand, Sigapore,etc.





10KV sealed type amorphous core oil transformer three phase10KV sealed type amorphous core oil transformer three phase10KV sealed type amorphous core oil transformer three phase





Our Services



Best Sevice for you
  • Quality Assurance--From the very beginning, HSLEC ensures quality in every step to achieve the best quality.
  • Experience Sharing--With over 23 years’ experience in power industry, HSLEC brings you an optimized solution.
  • Quick Response--In response to your needs without delay, HSLEC knows the value of your time
Trade Terms

1.Payment: TT 30% in advance, balanced 70% to be paid before dispatch, PayPal, Western Union.etc.

2.Port of loading: Tianjin or Dalian port

3.Discounts: offered based on order quantity
4.Delivery time: 10-30 days according to order quantity

5.Trade terms: FOB CIF EXW



Feedback

We appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help.





10KV sealed type amorphous core oil transformer three phase



FAQ





1.Q: Are you manufacturer or trading company?

   A:  Manufacturer

2.Q: What is your minimum order quantity?

   A: 1 set.

3. Q:What is your normal wanrranty period?



     A: 12 months after goods shipped.
