500 kva hermetically sealed oil transformer S9 S11
General Description
Application: The product has been widely used outdoor , such as power transmission and transformation system for agriculture, village, communities, mining, petrochemical enterprise, light industry area and etc.
Standards: GB1094 GB/T6451 IEC 60076-11
Parameters: Rated Voltage: 6KV 6.3KV 10KV 10.5KV 11KV or as customized
Rated Capacity: 10-3150kVA.
Benefits: 1.High security and reliability in operation.
2.Economic and efficient to reduce network loss and working cost.
3.Low temperature rise.
4.Low noise.
5.Operation in moist place with high moisture-proof capability.
6.Customized transformers are available on your requirement
We produce the following transformers
Oil immersed transformers:
S11 S13 Oil type transformer:10-3150KVA,6-33KV,50/60HZ,off load tape changer
SZ11 oil type transformer:10-3150KVA, 6-33KV,50/60HZ, On load tape changer
SCBH15 11KV amorphous alloy dry type transformer:F grade insulation
10KV single phase oil immersed distribution transformer
Other types of oil immersed transformer
Dry type transformers:
SC(B)9,SC(B)10 cast resin dry type transformer: F grade insulation, 30-3150KVA,3-35KV, 50/60HZ
SGB10 10KV dry type transformer:H grade insulation
ZSSC series phase shifting rectifier dry type transformer
Rectifier transformer
Furnace transformer
Control Transformer
Other types of dry type transformers

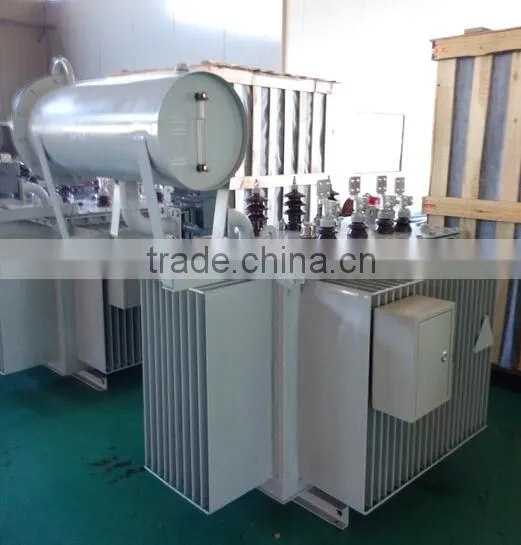

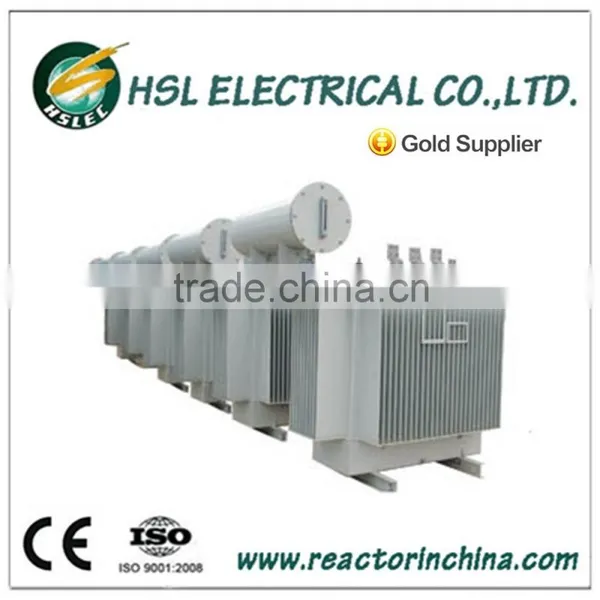

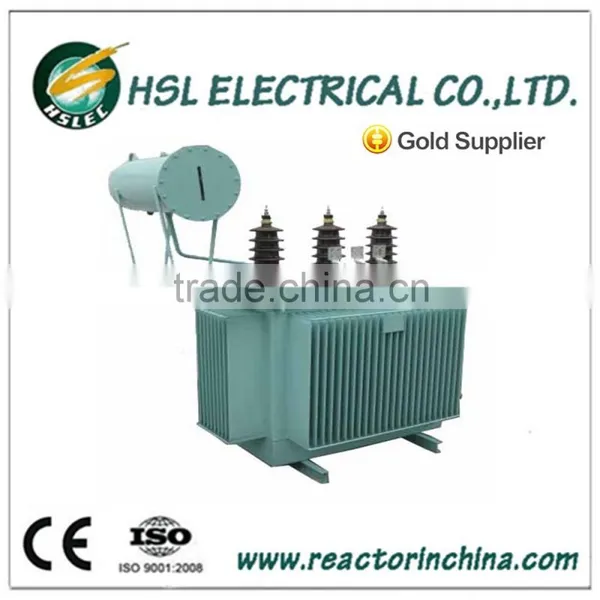

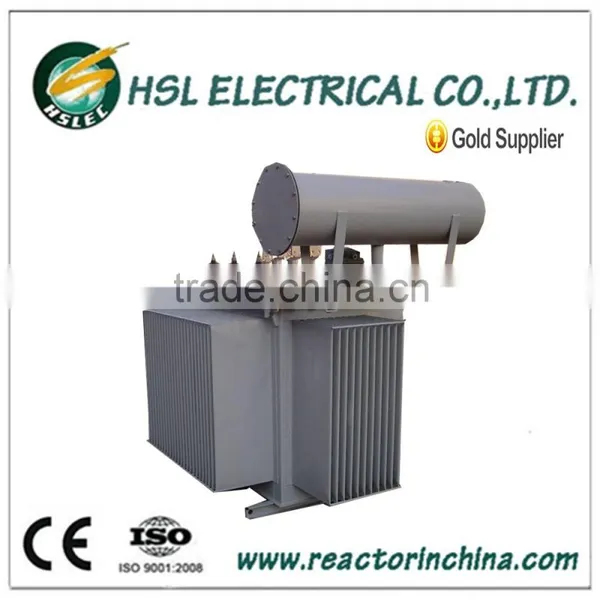

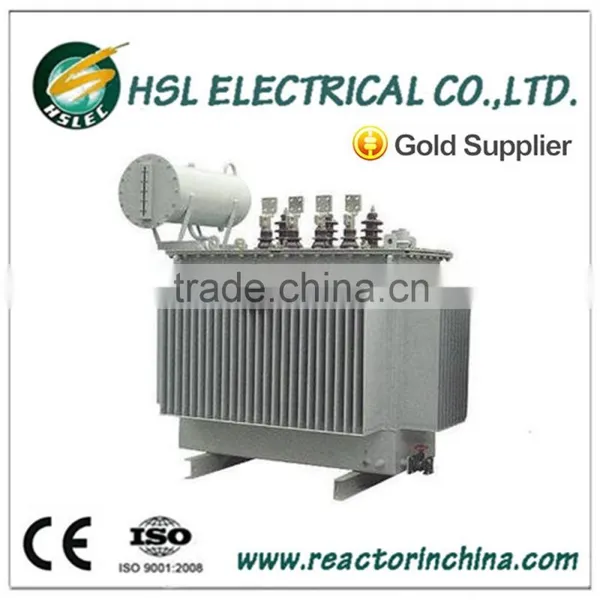

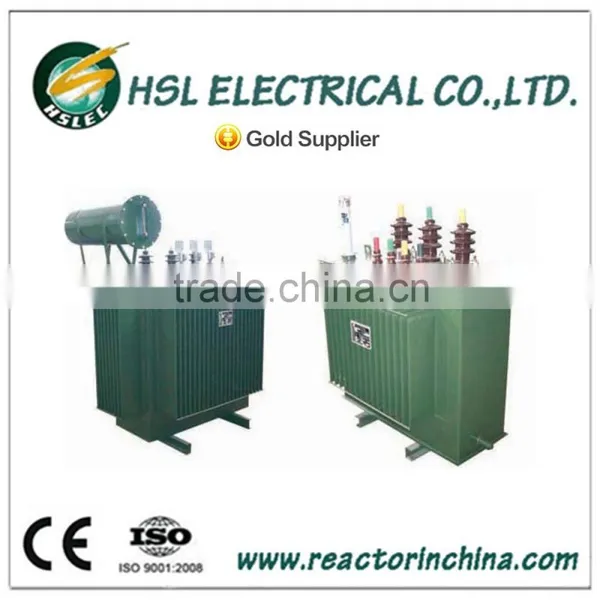

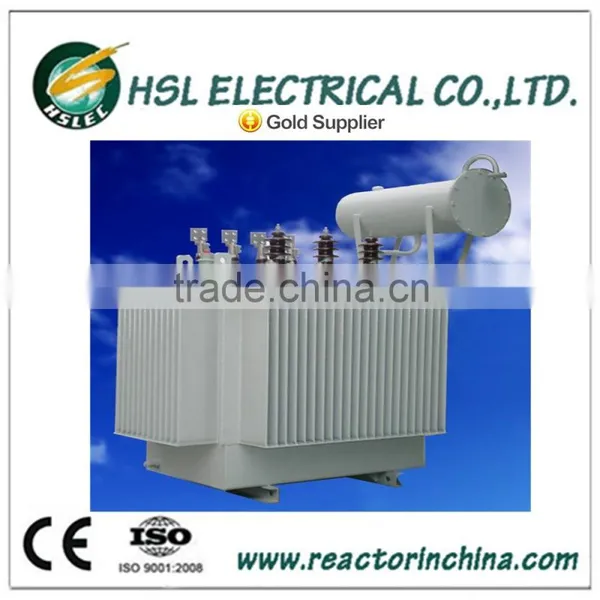

Product Photos of 500 kva hermetically sealed oil transformer S9 S11

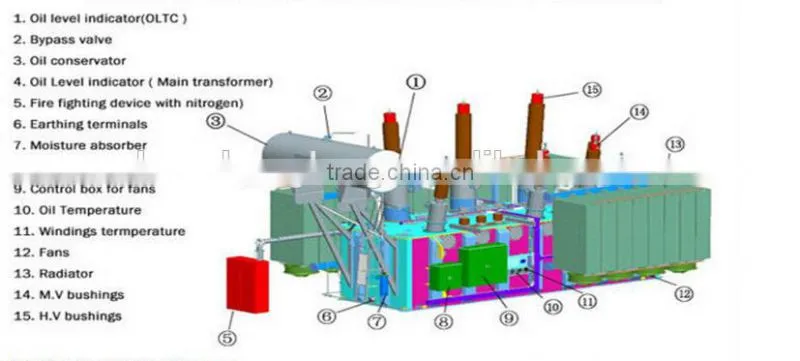

Product Features of 500 kva hermetically sealed oil transformer S9 S11
♦ Core
1. Power transformer core is made of high-permeable grain-orientated top quality cold-rolled silicon sheet
2. The material is cut with advanced Germany Geoge GmbH automatic shear line with the cut burrs controlled within 0.02mm.
3. Power transformer silicon sheet fabrication adopts “no-upper yoke-lapped’ technology and all lapped joints of the silicon sheet are 45 full-miters
4. Effectively improves no-load performance and reduces noises.
♦ Coil
1. The high-voltage(HV) coil adopts an interleaved-continuous structure to improve the voltage characteristics under impact voltage and make voltage evenly distributed.
2. All stays and pads are chamfered to keep highly reliable insulation.
♦ Oil tank and accessories
1. Power transformer tank wall adopts wide steel sheet
2. Which will be folded into corrugated structure without splicing
3. In this way welds aredecreased and mechanical strength is enhanced
4. The corrugated wall has diverging effect, and thus plays arole in decrease of noise.

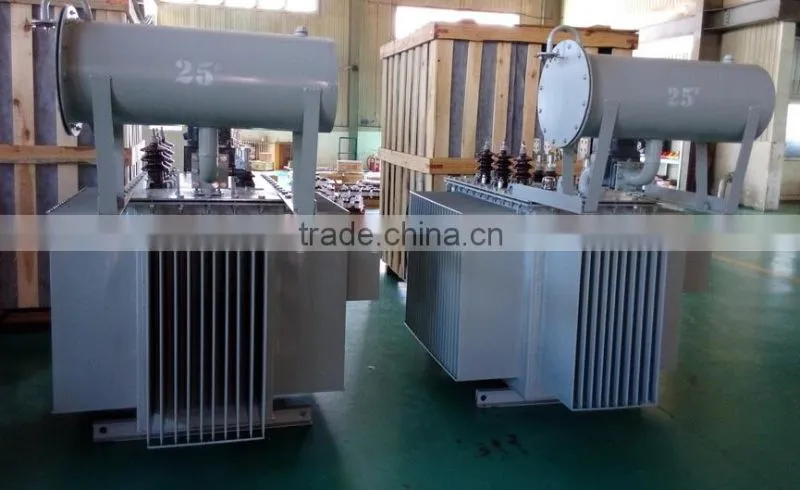

Production Show of 500 kva hermetically sealed oil transformer S9 S11
Note: The above parameters are just for your reference and we can do as customzied.
Packing:EXPORTED STANDARD NON-FUMIGATION WOODENCASE
Delivery Time: 10-30 days after the receipt of the payment
1. Pre sale service
a. make technical solution
b. send quotation, technical data sheet and drawing
c. make manufacturing plan, testing plan and shipping plan
2. In sale service
a. supervise the manufacturing schedule totally in accordance with the plan
b. send photos to customer during every manufacturing process(hold point)
c. inform the customer one week before testinng.
d. book hotel and ticket for customer if they will come do FAT.
3. After sale service
a. installation and commissioning
b. training the workers
b. quick response within 12 hours at any time
HSLEC PROFILE
1.Founded in 1992,Huashenglong Electrical Equipment Co.,Ltd.(HSLEC)is a mamufactuer of dry type transformer and dry type reactor,located in Qinhuangdao,a beautiful coastal city of China.
2.We are able to research,develop,and produce many types of dry type transformer and dry type reactor,high and low voltage transformers ,air core reactor,line reactor and so on.
Factory Overview
More Transformers and Reactors that you may like
Workshop Show
International Market
1.During the past 23 years, we have continued to upgrade and improve our equipment and our quality control system.
2.Now,HSLEC is a top ranked manufature in China's electrical equipment industry, and our power transformer,
current-limiting reactor,etc.,are exporeted to America,India,Thailand,Turkey,Georgia,and Sigapore,among others.
