50VA to 300KVA Inverter Transformer Used for UPS EPS System

50VA to 300KVA Inverter Transformer Used for UPS EPS System thumbnail-1
50VA to 300KVA Inverter Transformer Used for UPS EPS System thumbnail-2
50VA to 300KVA Inverter Transformer Used for UPS EPS System thumbnail-3
50VA to 300KVA Inverter Transformer Used for UPS EPS System thumbnail-4
50VA to 300KVA Inverter Transformer Used for UPS EPS System photo-1
50VA to 300KVA Inverter Transformer Used for UPS EPS System photo-2
50VA to 300KVA Inverter Transformer Used for UPS EPS System photo-3
50VA to 300KVA Inverter Transformer Used for UPS EPS System photo-4
US$ 50 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HSLEC
Model Number:
EI
Contact Supplier Request Quote Chat Now
Qinhuangdao Huashenglong Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HSLEC
Model Number EI
Usage Other, Power, lighting
Phase Three
Coil Structure Toroidal
Coil Number Other, 2

50VA to 300KVA inverter transformer used for UPS EPS system

Product Description







Brief specification







This product is suitable for UPS, EPS, power supply, power inverter, inverter, rectifier products such as three-phase power transformer,



the requirements of a variety of products were targeted for research, testing and a unique concept design, advanced manufacturing process.



High flux of the original factory electrical steel, high-strength and high-temperature magnetic wire imported special high temperature and long



life of the insulation material, sound detection equipment to ensure that the product is suitable rate, pre-qualified rate of 100% customer satisfaction



95 % the above. This product has a small size, low noise, appearance, high temperature resistant, self-cooling, and other characteristics.













Working conditions



1.Ambient temperature: -15°C~+40°C



2.Altitude: <1000m



3.Relative humidity: <90%



4.Environment exists without gas, steam, chemical deposition, dust or dirt that will affect transformer’s insulation seriously,



  also explosive or corrosive medium is not allowed.



5.If any special working conditions that are not in line with the above stipulations, user shall negotiate with us.









Data Required With Order Or For Bid Purposes



1. System Voltage (KV)



2. Frequency (Hz)



3.Rated capacity(kva)



4.Single or three phase



5.Quantity







Main technical characters



Input voltage:15V~400VA



The output voltage:100V~400VAC



Rated Power:50/60HZ



Power rating:0.5KW~100KW



Cooling:Self-cooling or forced air cooling air



Ambient temperature:-5~+40℃



Dielectric strength:2500V/I min



Insulation class:B/F/H





Transformer techenical sheet







Capacity ASize BSize CSize DSize ESize FSize GSize HSize The maximum external dimensions
1KVA 165±2 100±1 125±2 95±5 65±2 8±1 18±1 197±5 165×150×200
2KVA 180±2 110±1 145±2 110±5 75±2 8±1 18±1 212±5 180×170×215
3KVA 180±2 110±1 160±2 125±5 90±2 8±1 18±1 221±5 180×190×230
4KVA 200±2 120±1 170±2 130±5 90±2 10±1 25±1 232±5 200×200×240
5KVA 215±2 135±1 175±2 135±5 95±2 10±1 25±1 267±5 215×205×270
6KVA 230±2 135±1 175±2 135±5 95±2 10±1 25±1 285±5 230×205×290
7KVA 230±2 135±1 185±2 145±5 105±2 10±1 25±1 293±5 230×210×295
8KVA 230±2 135±1 190±2 150±5 110±2 10±1 25±1 305±5 230×215×310

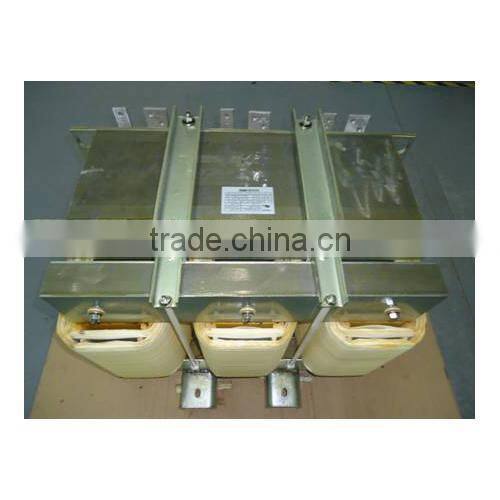

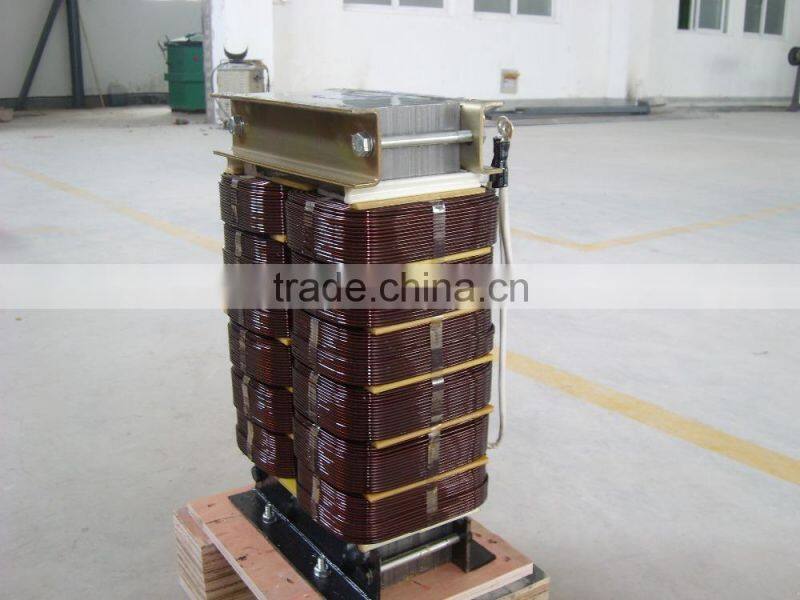

  Pictures for  transformer

50VA to 300KVA inverter transformer used for UPS EPS system
50VA to 300KVA inverter transformer used for UPS EPS system





Quality guarantee





Testing before delivery



50VA to 300KVA inverter transformer used for UPS EPS system





































































Certificates



 50VA to 300KVA inverter transformer used for UPS EPS system





Packaging





Wooden case or as the customer's requirment



50VA to 300KVA inverter transformer used for UPS EPS system

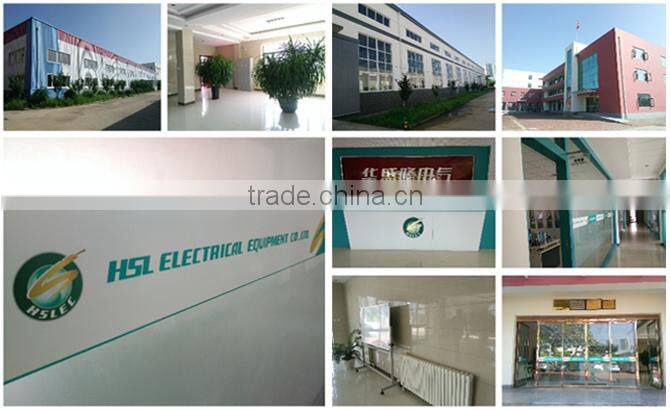

Company profile

About HSLEC



1.Founded in 1992,Huashenglong Electrical Equipment Co.,Ltd.(HSLEC)is a mamufactuer



of dry type transformer and dry type reactor,located in Qinhuangdao,a beautiful coastal



city of China.



2.We are able to research,develop,and produce many types of dry type transformer and dry type



reactor,high and low voltage transformers ,air core reactor,line reactor and so on.





International Market



1.During the past 18 years, we have continued to upgrade and improve our equipment and our quality control system.

2.Now,HSLEC is a top ranked manufature in China's electrical equipment industry, and our power transformer,

current-limiting reactor,etc.,are exporeted to America,India,Thailand,Turkey,Georgia,and Sigapore,among others.

50VA to 300KVA inverter transformer used for UPS EPS system

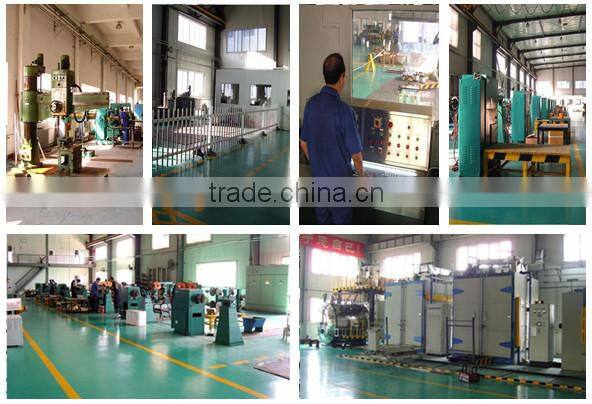

Workshop





50VA to 300KVA inverter transformer used for UPS EPS system



Customer visit

 50VA to 300KVA inverter transformer used for UPS EPS system
