solar panel ups system transformer 10kw 20kw 30kw
Brief specification
This product is suitable for UPS, EPS, power supply, power inverter, inverter, rectifier products such as three-phase power transformer,
the requirements of a variety of products were targeted for research, testing and a unique concept design, advanced manufacturing process.
High flux of the original factory electrical steel, high-strength and high-temperature magnetic wire imported special high temperature and long
life of the insulation material, sound detection equipment to ensure that the product is suitable rate, pre-qualified rate of 100% customer satisfaction
95 % the above. This product has a small size, low noise, appearance, high temperature resistant, self-cooling, and other characteristics.
Working conditions
1.Ambient temperature: -15°C~+40°C
2.Altitude: <1000m
3.Relative humidity: <90%
4.Environment exists without gas, steam, chemical deposition, dust or dirt that will affect transformer’s insulation seriously,
also explosive or corrosive medium is not allowed.
5.If any special working conditions that are not in line with the above stipulations, user shall negotiate with us.
Data Required With Order Or For Bid Purposes
1. System Voltage (KV)
2. Frequency (Hz)
3.Rated capacity(kva)
4.Single or three phase
5.Quantity
Main technical characters
Input voltage:15V~400VA
The output voltage:100V~400VAC
Rated Power:50/60HZ
Power rating:0.5KW~100KW
Cooling:Self-cooling or forced air cooling air
Ambient temperature:-5~+40℃
Dielectric strength:2500V/I min
Insulation class:B/F/H
Transformer techenical sheet
| Capacity | ASize | BSize | CSize | DSize | ESize | FSize | GSize | HSize | The maximum external dimensions |
| 1KVA | 165±2 | 100±1 | 125±2 | 95±5 | 65±2 | 8±1 | 18±1 | 197±5 | 165×150×200 |
| 2KVA | 180±2 | 110±1 | 145±2 | 110±5 | 75±2 | 8±1 | 18±1 | 212±5 | 180×170×215 |
| 3KVA | 180±2 | 110±1 | 160±2 | 125±5 | 90±2 | 8±1 | 18±1 | 221±5 | 180×190×230 |
| 4KVA | 200±2 | 120±1 | 170±2 | 130±5 | 90±2 | 10±1 | 25±1 | 232±5 | 200×200×240 |
| 5KVA | 215±2 | 135±1 | 175±2 | 135±5 | 95±2 | 10±1 | 25±1 | 267±5 | 215×205×270 |
| 6KVA | 230±2 | 135±1 | 175±2 | 135±5 | 95±2 | 10±1 | 25±1 | 285±5 | 230×205×290 |
| 7KVA | 230±2 | 135±1 | 185±2 | 145±5 | 105±2 | 10±1 | 25±1 | 293±5 | 230×210×295 |
| 8KVA | 230±2 | 135±1 | 190±2 | 150±5 | 110±2 | 10±1 | 25±1 | 305±5 | 230×215×310 |

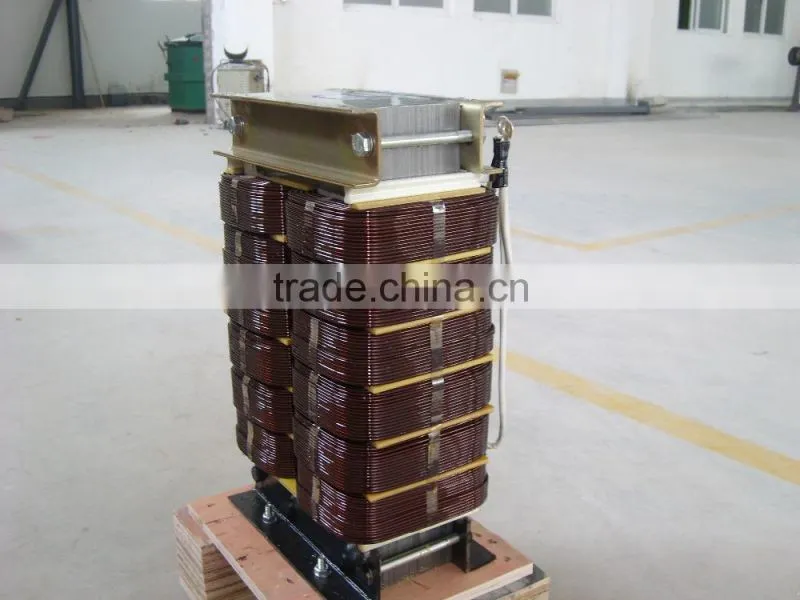

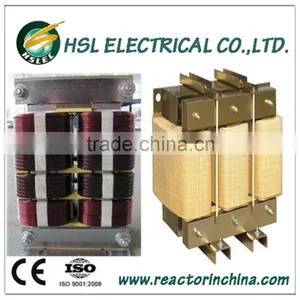

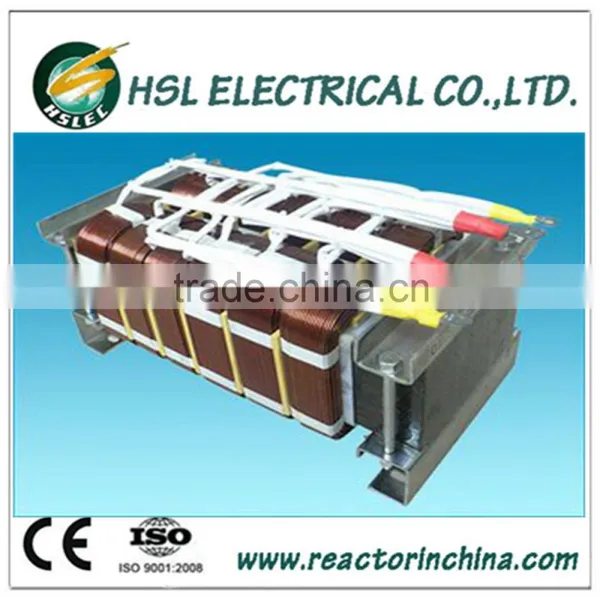

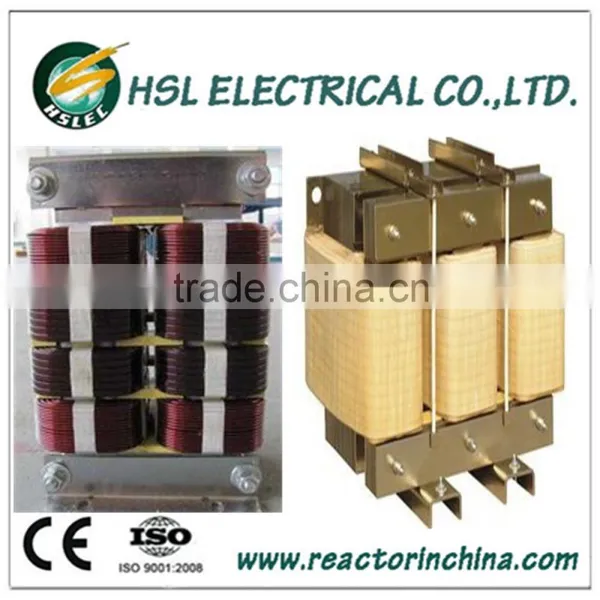

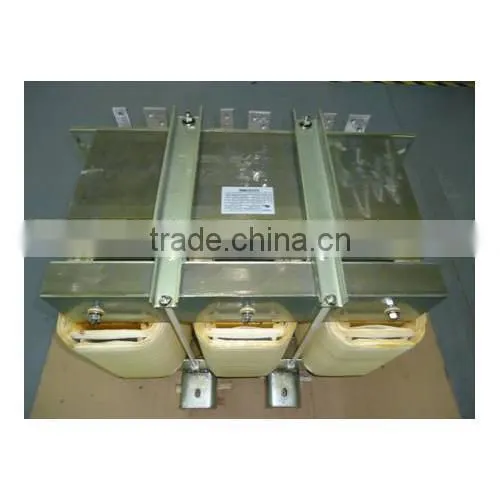

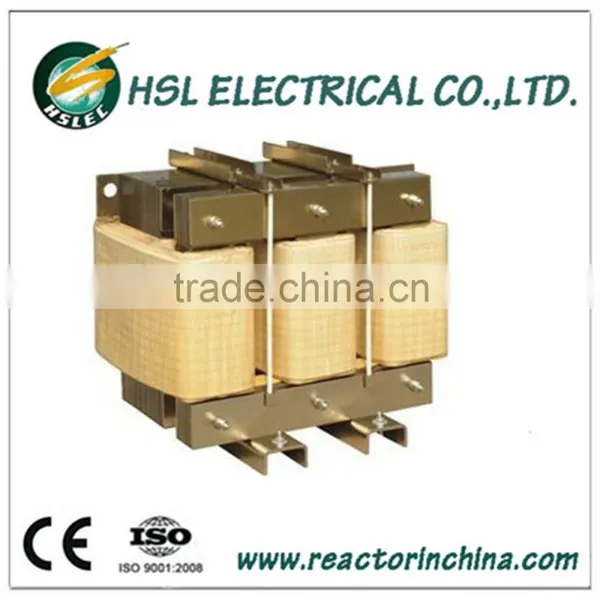

Pictures for transformer
Testing before delivery
Certificates
Wooden case or as the customer's requirment

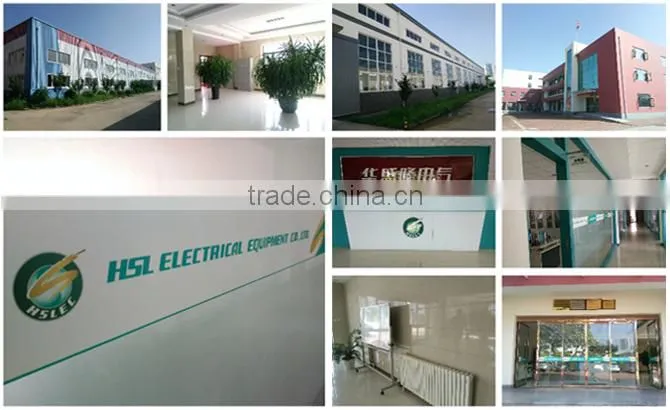

About HSLEC
1.Founded in 1992,Huashenglong Electrical Equipment Co.,Ltd.(HSLEC)is a mamufactuer
of dry type transformer and dry type reactor,located in Qinhuangdao,a beautiful coastal
city of China.
2.We are able to research,develop,and produce many types of dry type transformer and dry type
reactor,high and low voltage transformers ,air core reactor,line reactor and so on.
International Market
1.During the past 18 years, we have continued to upgrade and improve our equipment and our quality control system.
2.Now,HSLEC is a top ranked manufature in China's electrical equipment industry, and our power transformer,
current-limiting reactor,etc.,are exporeted to America,India,Thailand,Turkey,Georgia,and Sigapore,among others.

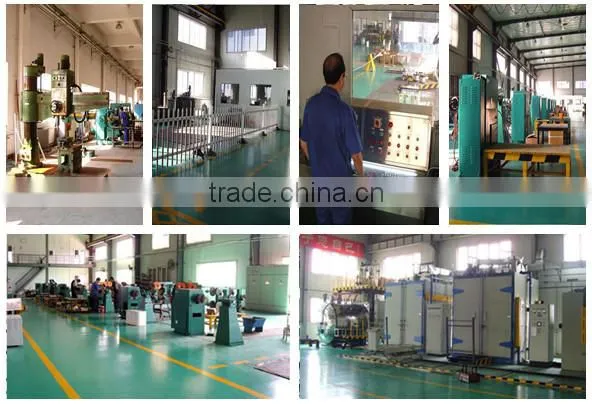

Workshop
Customer visit
