| Product Code | Base | Voltage | Current | Watts (Typ.) | LED Q'ty | LED Encapsu-lation | CCT(K)/ Color | Lumens (Typ.) | MOQ(PCS) |
| 15SC-13DCW-30D | BA15s | 10-30VDC | 158mA | 1.9 | 13 | SMD2835 | 6300-6700K | 208 | 100 |
| 15SC-13DWW-30D | BA15s | 10-30VDC | 153mA | 1.9 | 13 | SMD2835 | 2700-3100K | 190 | 100 |
| Y15C-13DCW-30D | BAY15d | 10-30VDC | 158mA | 1.9 | 13 | SMD2835 | 6300-6700K | 208 | 100 |
| Y15C-13DWW-30D | BAY15d | 10-30VDC | 153mA | 1.9 | 13 | SMD2835 | 2700-3100K | 190 | 100 |
| 15DC-13DCW-30D | BA15d | 10-30VDC | 158mA | 1.9 | 13 | SMD2835 | 6300-6700K | 208 | 100 |
| 15DC-13DWW-30D | BA15d | 10-30VDC | 153mA | 1.9 | 13 | SMD2835 | 2700-3100K | 190 | 100 |

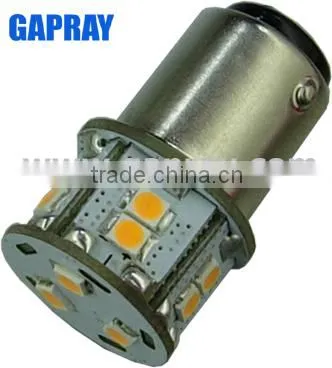

These very bright high output (HO) lamps use the latest 3528 High output LEDs. They are suitable for replacing incandescent lamps fitted in Aqua Signal, Hella Marine and many other popular navigation lights. The lamps are also suitable to upgrade older first generation LED lamps and is ideal for both 12 Volt & 24 Volt systems.
These lamps are designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference).
The cool white LED lamp can be used for stern, steaming and mast head anchor light elements of Tri-colour lights for boats up to 20 metres. Do not use cool white lamps behind separate red or green lens or combined bi colour lights as the output colours will not be correct.
In warm white it can be used in bi and tri colour lights for boats up to 12m.
In red and green the lamp is suitable for installation in port and starboard lights respectively for all boats up to 20m.
Regulated from 10-30V DC
Bay15d cap (15mm diameter, double pole with offset pins)

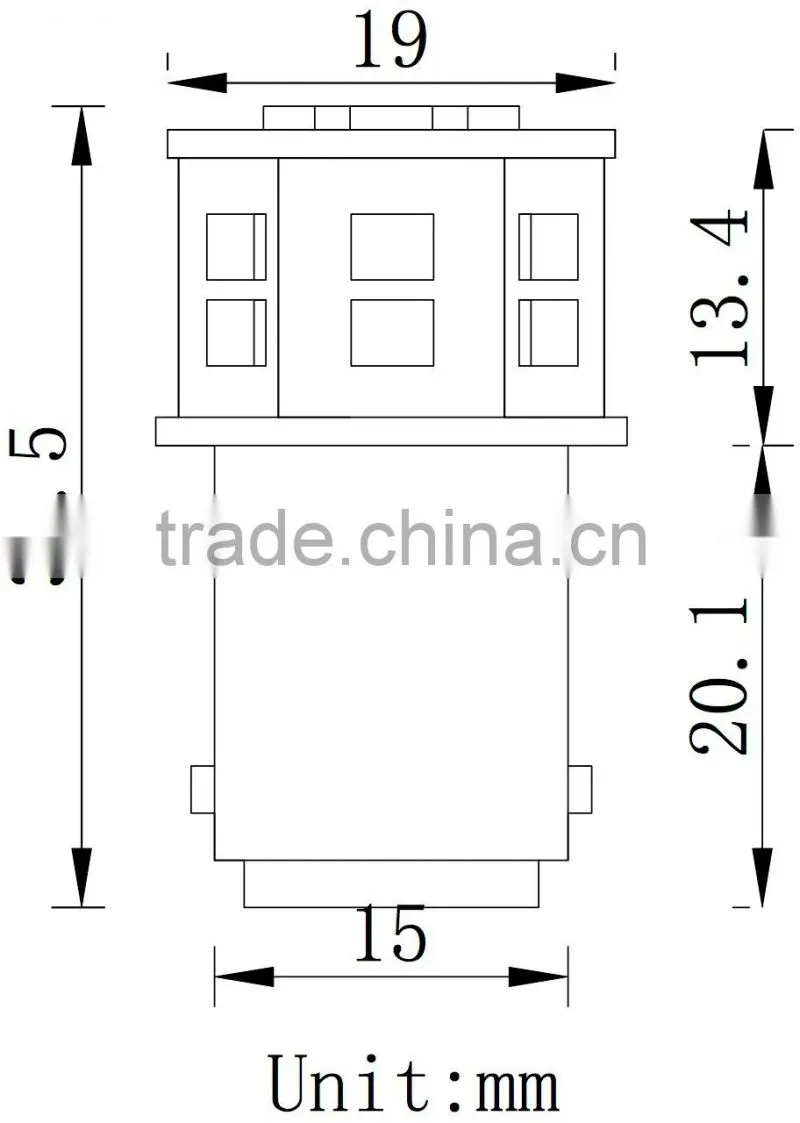

Diameter - 19mm, length - 23mm ( include cap)
1.9W power consumption
2 year guarantee
These lamps are not polarity concious as they are fitted with a diode bridge rectifier and can therefore be connected either way without damage.
OFFSET PINS
These lamps will provide a higher efficiency light output for use on your boat. It is important to ensure that the replacement selected is correct for the application. Ensure the wattage is within the limit of the equipment, and that light output/bulb spec meets the specified requirement.
certificates:
All of our products have CE RoHS certification
