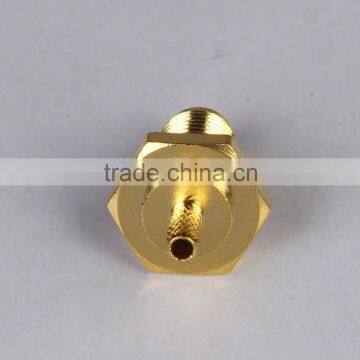

Best Price Gold Plated RPSMA-C-JY1.5-M-1, Fmale Cable Coaxial Connector
US$ 0.1 - 1
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
RPSMA-C-JY1.5-M-1
Payment & Shipping
Payment Methods:
Port of Shipment:
HK port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N-C-J7 RF Coaxial Cable Connector for Male PinUS$ 0.1 - 1MOQ: 100 Pieces -
Female BNC Right Angle Conector for PCBUS$ 0.1 - 1MOQ: 100 Pieces
-
SMA-K, Female Coaxial Connector for PCBUS$ 0.1 - 1MOQ: 100 Pieces
-
RF SMA, Male, Right Angle Coaxial Cable ConnectorUS$ 0.1 - 1MOQ: 100 Pieces
-
N Male, Right Angle, Crimp Tpye for Cable RG213, SYV-50-7-1US$ 0.1 - 1MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
RPSMA-C-JY1.5-M-1
Type
SMA
Application
RF
Gender
Male
Product Description
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |||
| Vibration | 98m/S²(10-2000Hz)10g | |||
| Impedance | 50Ω | |||
| Frequency range | DC-12.4GHz(Semi-Rigled Cable DC-18GHz) | |||
| Working voltage | 335V r.m.s at sea level | |||
| Withstanding voltage | 1000V r.m.s at sea level | |||
| Contact resistance | ||||
| Center contact | ≤3mΩ | |||
| Outer contact | ≤2.5mΩ | |||
| Insulation resistance | ≥5000MΩ | |||
| Center conductor retention force | ≥0.28N | |||
| Coupling nut retention force | ≥180N | |||
| Insertion loss | ≤0.15dB/6GHz | |||
| Voltage Standing Wave Ratio | ||||
| Straight flexible cable | ≤1.10+0.02f | |||
| semi-rigid cable | ≤1.07+0.018f | |||
| Right angle flexible cable | ≤1.20+0.03f | |||
| semi-rigid cable | ≤1.17+0.02f | |||
| Durability(mating) | ≥500(Cycles) | |||
Our Services
Customization advantages Reliable performance Perfect production management system (ISO9001,ISO14001) we have experienced about RF components more than 9 years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
