Specifications
new big sugarcane loader, sugar cane loader1. Motor: 44KW
2. Max loading weight: 1000KG
3. Max. Height of loading: 4.2

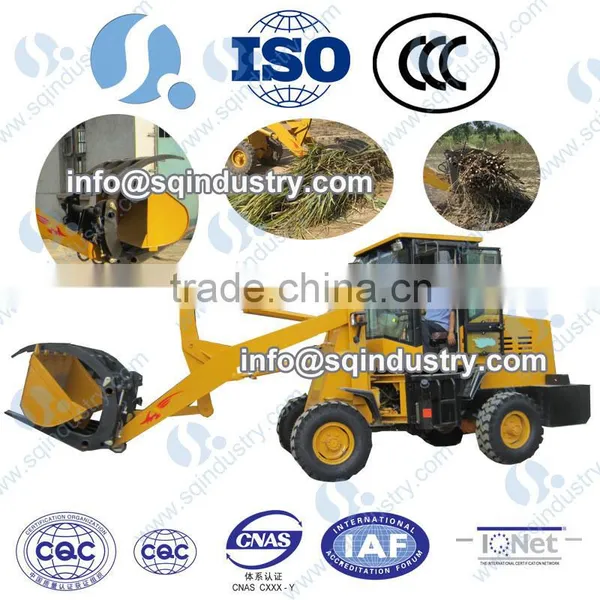

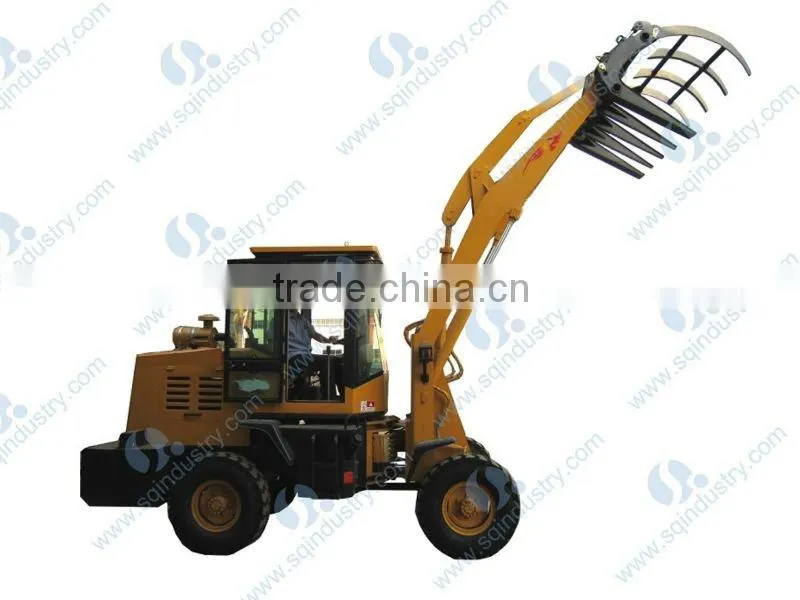

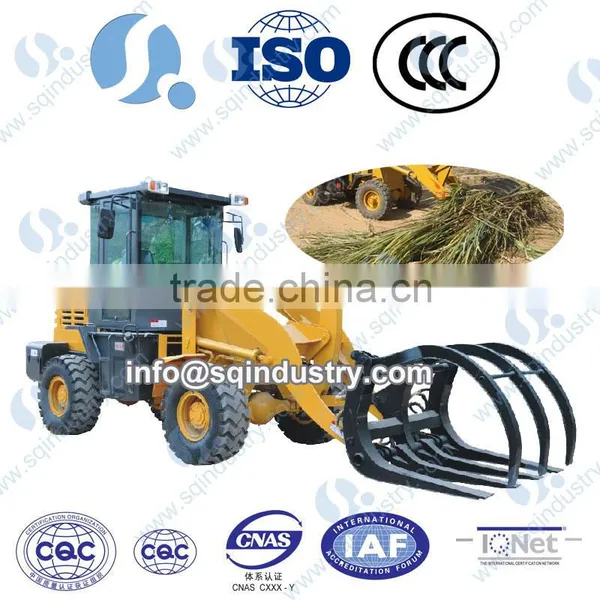

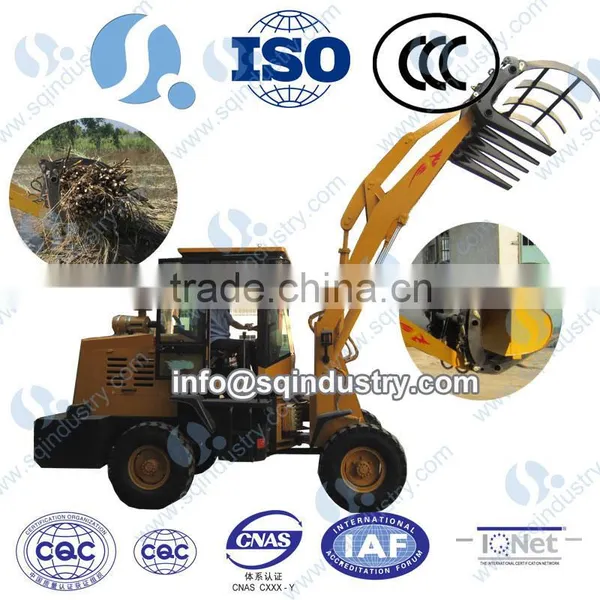

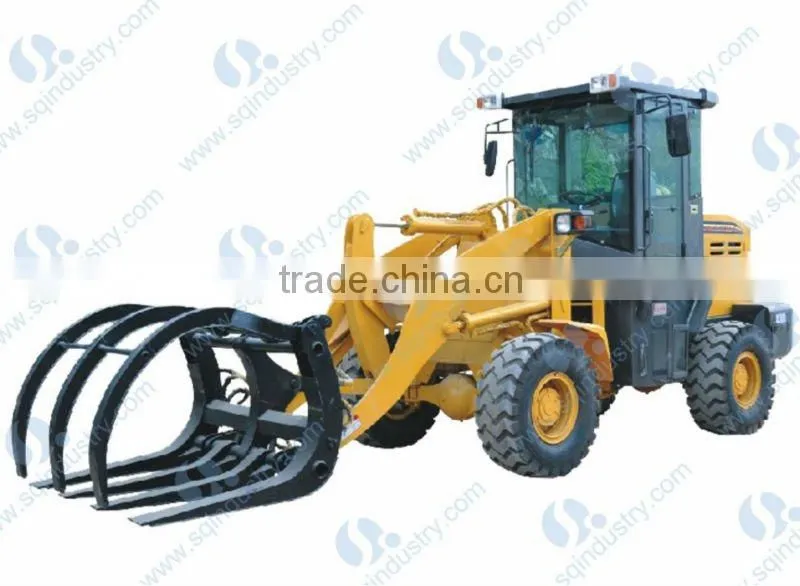

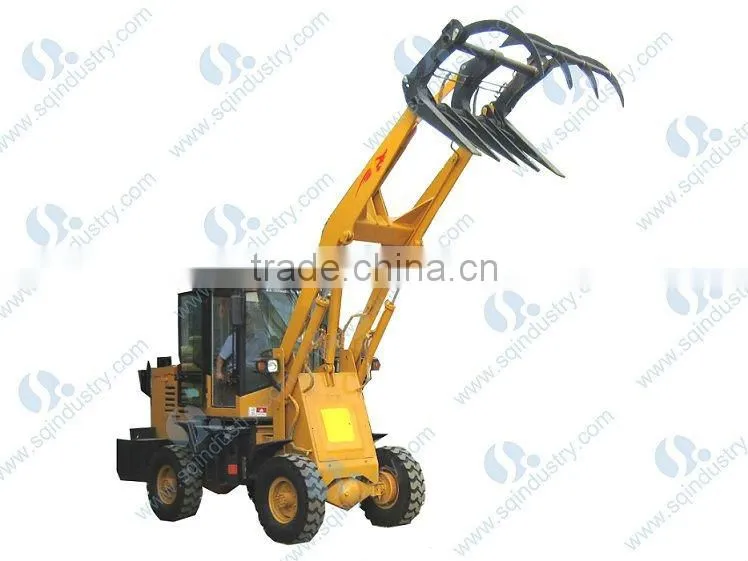

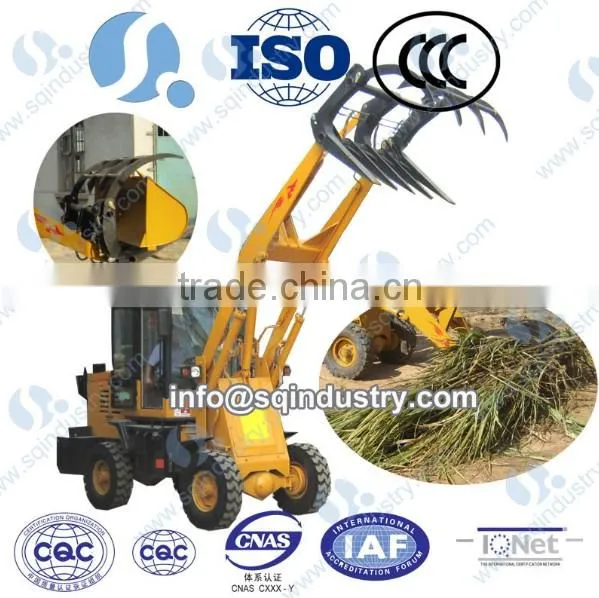

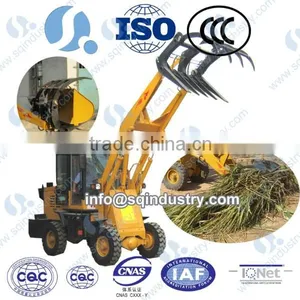

new big sugarcane loader, sugar cane loader
(Model: SQCL03, grab type, 44KW diesel engine)
If you need any quotation, pls contact us: 0086-15901791005, you can also send email to me.
Range of application: plane filed,mountain area,dry land,hills.
Function: 1. Loading sugar cane and wood. 2. Loading stone and sandy soil.
The machine has five characteristics:
1. For high arm, loading sugarcane height is 4.25 meters
2. High-capacity with four cylinder 44KW engine
3. Flexible to operate, it has widen and bigger tire, adopts hydraulic steering and braking

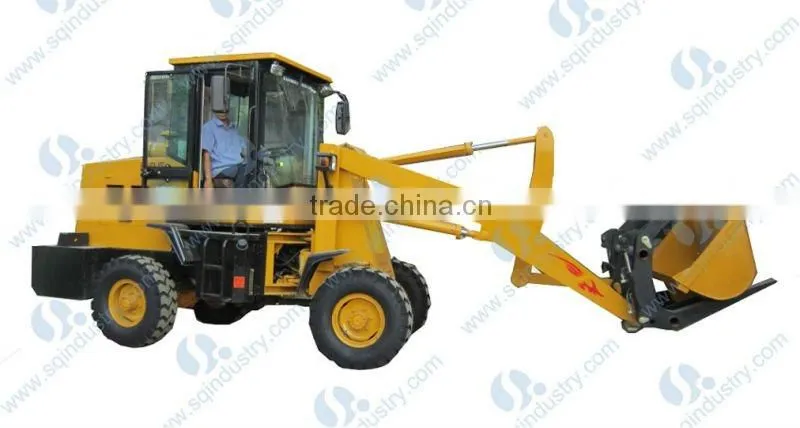

4. More function, it is furnished with fork and bucket, it is easy to change so the machine can be used for loading sugar cane, log, rock, sands and so on
5. More efficiency,only 50-70 minutes can fill up 12ton truck, the effectiveness is eight times than manual work and the cost of filling up can reduce 5 RMB each ton
1 |
Gross weight(kg) |
4100 |
2 |
Dimension(mm) |
6300×2200×3000 |
3 |
Engine model |
ZH4100J |
4 |
Power(kw) |
44 |
5 |
Loading mass(kg) |
1000 |
6 |
Max. Height of loading(mm) |
4250 |
7 |
Max. Power of digging up(kN) |
16 |
8 |
Min. loading distance(mm) |
1250 |
9 |
Max. loading angle(°) |
≥ 20 |
10 |
Time of lifting(s) |
5 |
11 |
Min. steering semi diameter(mm) |
5500 |
12 |
Wheel tread(mm) |
1800 |
13 |
Wheelbase(mm) |
2290 |
14 |
Container |
1 set/40 HQ |
Free Spare Parts
Item |
Part No. |
Name |
Qty |
Notes |
1 |
|
Engine parts |
1 |
|
2 |
DL-15-L-2 |
Multi-valve combination pad |
2 |
22 |
3 |
DL-15-L-2 |
Valve pole O-ring |
2 |
|
4 |
BZZ1.3E250 |
Hydraulic steering gear combination pad |
2 |
20 |
5 |
CB-FC50 |
Gear pump combination pad |
1 |
27 |
6 |
CB-FC50 |
Gear pump combination pad |
1 |
33 |
7 |
Gear box oil seal |
65X40X12 |
3 |
|
8 |
Gear box oil Seal |
56X35X12 |
1 |
|
9 |
200cm |
Lever type grease gun |
1 |
|
