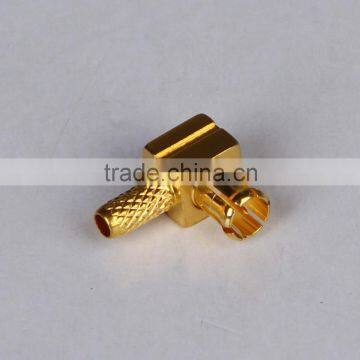

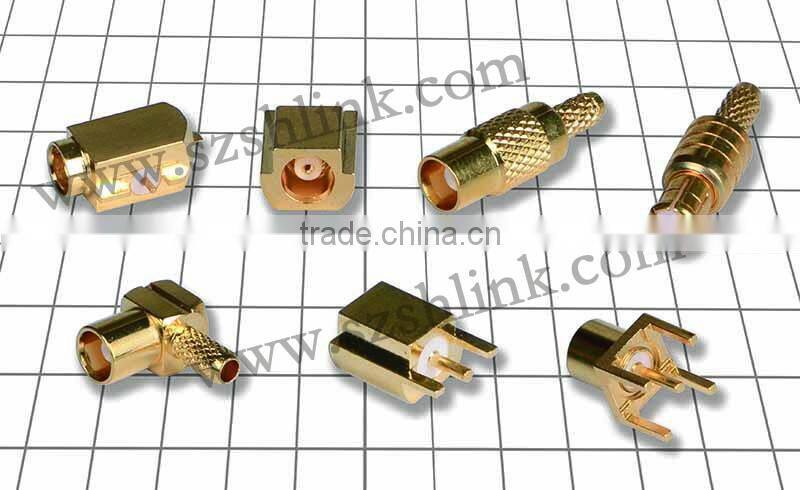

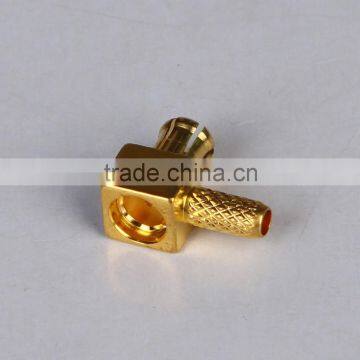

MCX series are snap-lock coupling micro-miniature coaxial connectors which can operate at impedances of 50 ohms and 75 ohms. With small size, less weight, compact structure and easy fit, they are used in small sized communication equipment, PNC, GPS, WLAN, radio instruments and other miniaturized electrical equipment. MCX connectors, particularly for PCB connection, are 30% smaller in size than SMB connectors.
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
| Impedance | 50Ω,75Ω | |
| Frequency range | DC-6GHz | |
| Working voltage | 250V(50Ω) 170V(75Ω) at sea level | |
| Withstanding voltage | 250V(50Ω) 170V(75Ω) at sea level | |
| Contact resistance | ||
| Center contact | ≤5mΩ | |
| Outer contact | ≤2.5mΩ | |
| Insulation resistance | ≥1000MΩ | |
| Center conductor retention force | ≥0.28N | |
| Insertion loss | 0.18dB/1GHz | |
| Engagement force | ≤20N | |
| Disengagement force | ≥8N | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.20/1GHz | |
| Right angle | ≤1.45/1GHz | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | gold plated |
| pin contact | tin bronze | gold plated |
| socket contact | beryllium-copper | gold plated |
| resilient contact | beryllium-copper | gold plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel or gold plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | CECC 22220 | |
| IEC 61169-36 | ||
