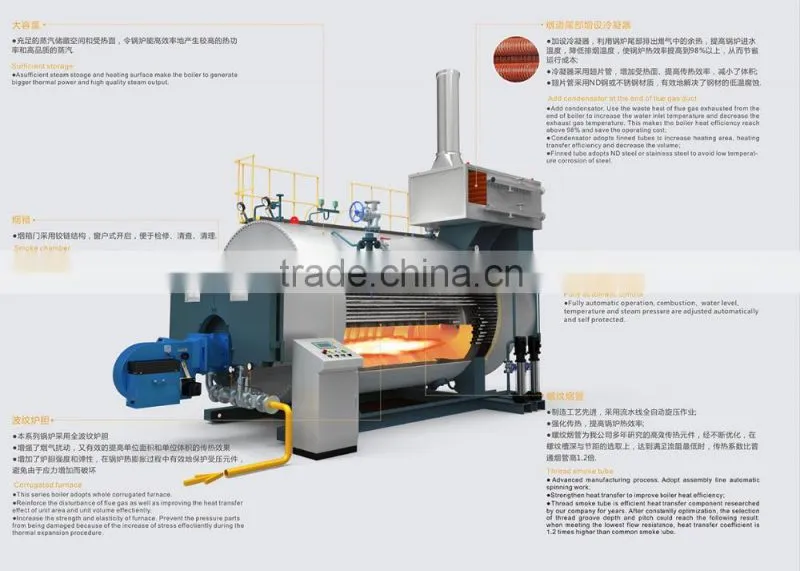

Horizontal type tri-backhauling corrugated furnace, whole wet back structure
1 First backhauling is corrugated furnace combustion chamber
2 Secondary backhauling is thread smoke tubes which are placed in both sides of furnace
3 Third backhauling is smoke tubes which are placed above the furnace
4 Scientific and reasonable structure ensures the boiler operates safely, reliably and efficiently
Corrugated furnace
1 This series boiler adopts whole corrugated furnace
2 Reinforce the disturbance of flue gas as well as improving the heat transfer effect of unit area and unit volume effectiently
3 Increase the strength and elasticity of furnace. Prevent the pressure parts from being damaged because of the increase of stress effectiently during the thermal expansion procedure
Thread smoke tube
1 Advanced manufacturing process. Adopt assembly line automatic spinning work
2 Strengthen heat transfer to improve boiler heat efficiency
3 Thread smoke tube is efficient heat transfer component researched by our company for years. After constantly optimization, the selection of thread groove depth and pitch could reach the following result: when meeting the lowest flow resistance, heat transfer coefficient is 1.2 times higher than common smoke tube
