Various Color Outdoor LED Matrix Displays

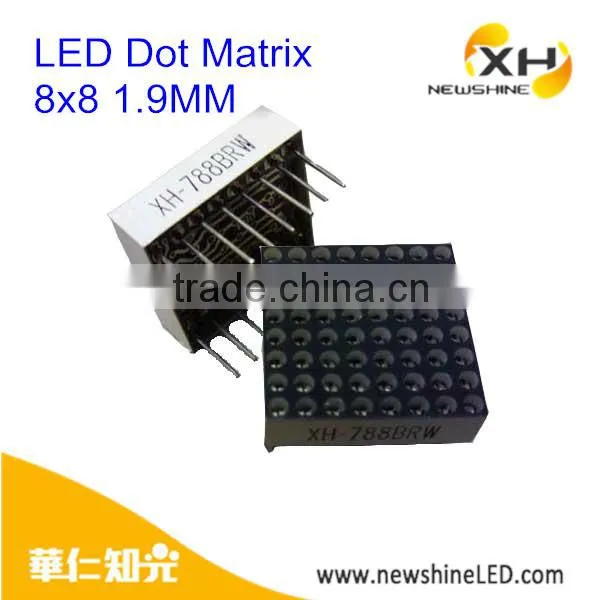

NEWSHINE XH-7088 Various Color Outdoor LED Dot Matrix 8x8
Specification/Parameter:
1) Size Available: Φ1.9mm , Φ3.0mm, Φ3.7mm, Φ5.0mm, Φ7.62mm, Φ10mm
Lens/Epoxy: Water Clear, Diffused color, Red color, Green color etc.
2) Emitted Color Available
Single: Red, Orange, Yellow, Green, Blue, Yellowish-Green, White color LED
Bi-color: Red & Green, Red & Blue, Red & Orange, Green & Yellow etc.
RGB: Red & Green & Blue, Red/Yellow/Green etc. or other customized combination
3) Characteristics:
- High luminous intensity output
- Low voltage and current operation
- Ultra-low power consumption, Solid-state lighting chips inside, SSL.
- IC compatible, easy mounting & installation on PCB/sockets
- Meet TUV ROHS certifications
- Providing free sample for testing for common models
1.Feature
High luminous intensit
y output
·High efficiency
·Low power consumption
·Extremely low current
·Luminous evenly distributed on each segment
·Emitting color: various
2.Hot Selling Dual Digit 7 Segment LED Display
**Size of digital LED display:0.28 inch to 5 inch;
**Digital LED display Emitting color: Red/Blue/Yellow/White etc;
**Voltage:1.8V;
**Electric Current:5-10mA.
3.Main Export Market:
**South America, Southeast Asia,
**Africa, Mid East, Eastern Asia,
**Western Europe
(Parameter) |
(Symbol) |
(Maximum Rating) |
(Unit) |
(Power Dissipation) |
Pd |
|
mW |
(Peak Forward Current) |
Ifp |
150 |
mA |
(Continuous Forward Current) Forward )Current |
Ifm |
20 |
mA |
(Reverse Voltage) |
VR |
5 |
V |
(Operating Temperature Range) |
Topr |
-40 → +85 |
°C |
(Storage Temperature Range) |
Tstg |
-40 → +100 |
°C |
(Static Voltage) |
Var |
|
V |

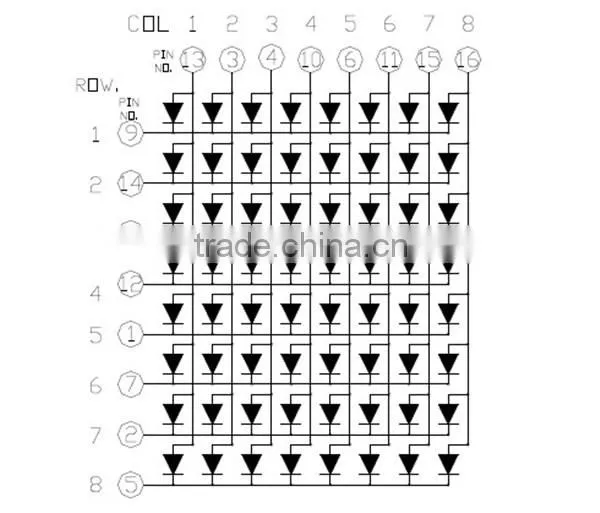

4.Pins Layout & Circuit Diagram
Welcome to our website,please kindly contact us if you have any need.
