SHD630 hydraulic PE pipe joint welding machine from 315mm to 630mm;
SHD630 PE pipe welding machine for welding HDPE pipe from 315mm to 630mm with CE certified; plastic pipe butt fusion welding machine for welding pipes from 315-630mm
Shengda/BADA SHD630/315 HDPE hydraulic welding machine from 315-630mm;
PE Welding machine; Butt fusion welding machine; PE Welder
Application and features:

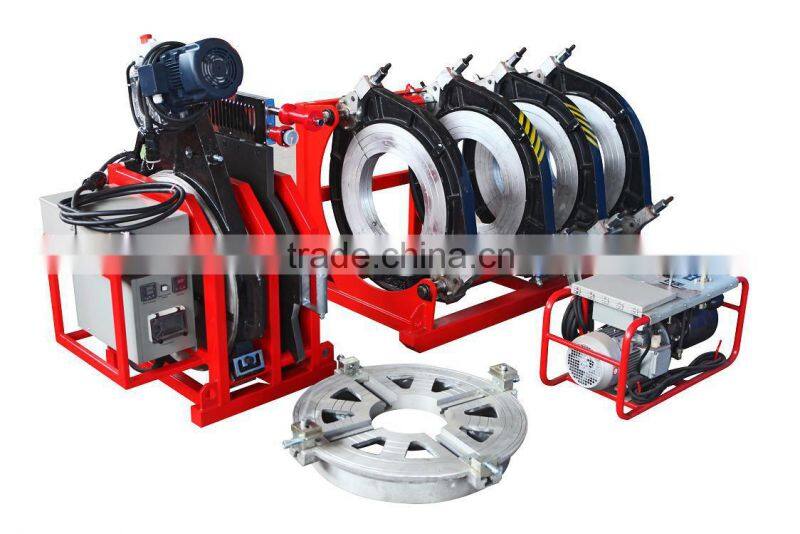

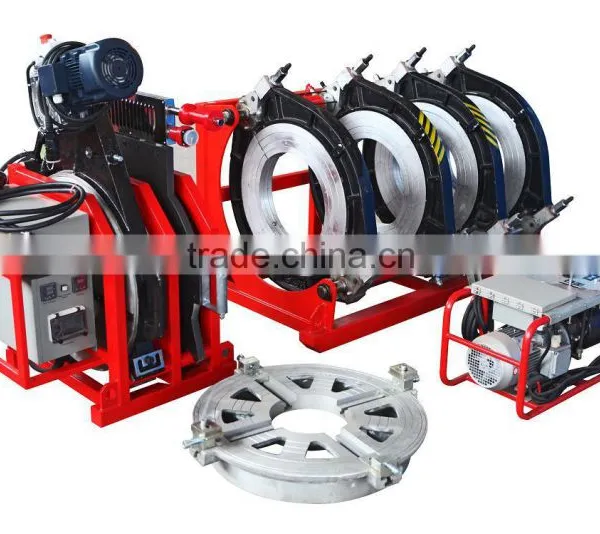

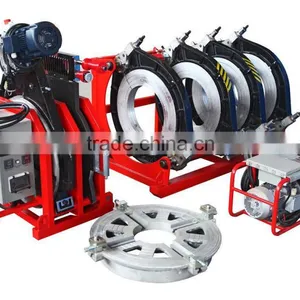

1. Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts
2. Removable PTFE coated heating plate with high accurate temperature control system
3. Electrical planing tool with safety limit switch
4. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
5. Low starting pressure ensures reliable welding quality of small pipes
6. Changeable welding position enables to weld various fittings more easily
7. High accurate and shockproof pressure meter indicates clearer readings
8. Separate two-channel timer records time in soaking and cooling phases
9. Suitable for butt welding of plastic pipes and fittings made of PE,PP and PVDF in worksite or workshop,
cannot be used to weld material without description
The main parameters:
Model |
SHD630 |
|
Pipe Size (mm) |
315,355,400,450,500,560,630 |
|
Heating Plate Max. Temp. |
270°c |
|
Temp. deviation in surface (170~250 degree) |
±7°c |
|
Pressure adjustable ranges |
0˜6.3MPa |
|
Working voltage |
380V,50Hz |
|
Heating plate power |
9.35KW |
|
Planing tool power |
1.5 KW |
|
Hydraulic unit power |
1.5 KW |
|
Total power |
12.35 KW |
|
Weight |
780Kg |
|
Packing dimension |
Basic frame |
1680×1280×1240mm |
Support |
860×1160×1480mm |
|
Hydraulic unit |
740×490×620mm |
|
Cases |
4 Plywood Cases |
|
Volume |
4.43CBM |
|
Option parts:
Stub end device for short flang
Data Logger
Trolley

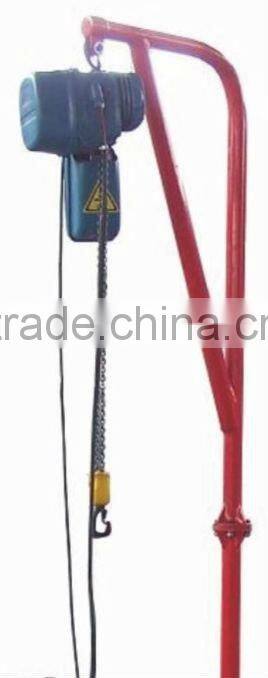

Crane
Alternative similar series of products:
SHD450/200 plastic pipes welding machine from 200mm to 450mm
SHD500/250 hdpe pipes hydraulic welding machine from 250mm to 500mm

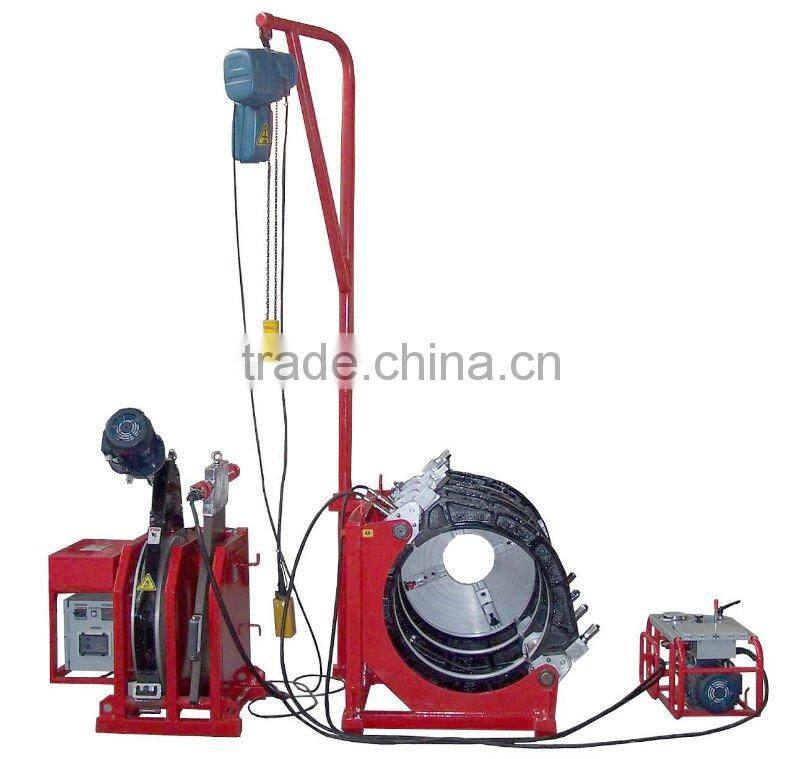

The same principle of welding, match crane
Our exhibition in Shanghai and Gaungzhou
We have good after-sale service and we have a group of experienced engineers, available to help you solve any difficult problems!
Wuxi Shengda, your best and wise choise.
Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment including field welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. And companies from the site moved to focus on economic development zone of jiangsu province - wuxi hudai industrial zone - joint road (north) 9 D building, with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
