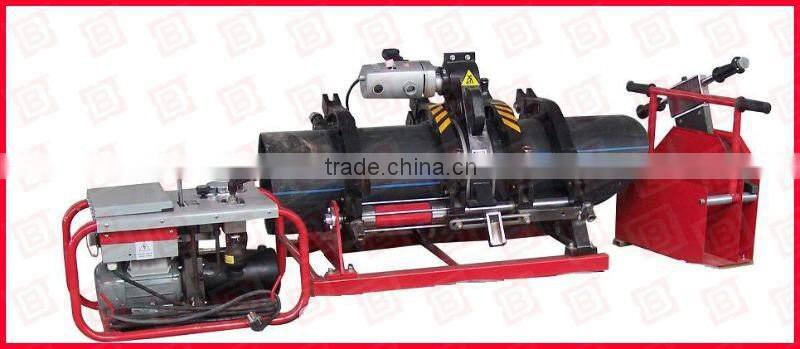

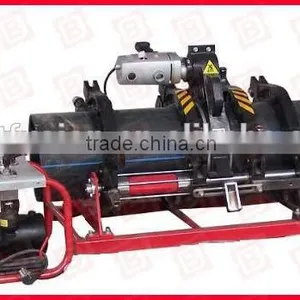

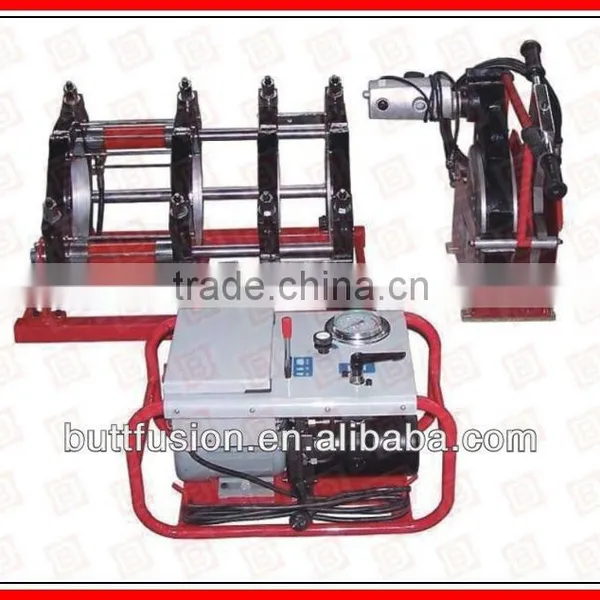

SHD315 PE pipe welding machine for welding HDPE pipe from 90mm to 315mm with CE certified
Application and features:
♦ Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop

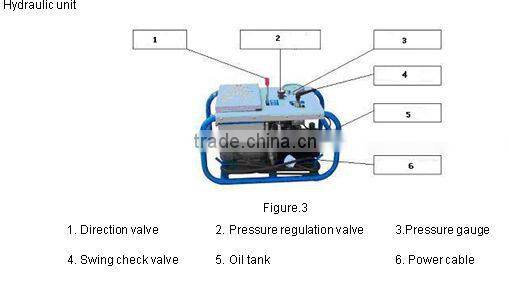

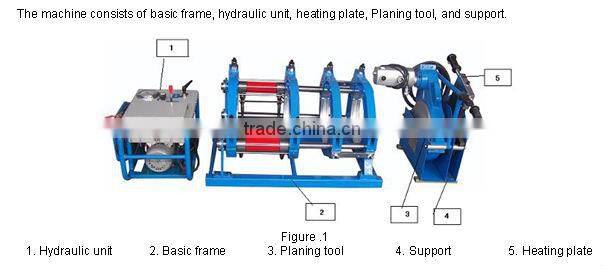

♦ Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional part
♦ Removable PTFE coated heating plate with high accurate temperature control system
♦ Electrical planing tool
♦ Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
♦ Low starting pressure ensures reliable welding quality of small pipe

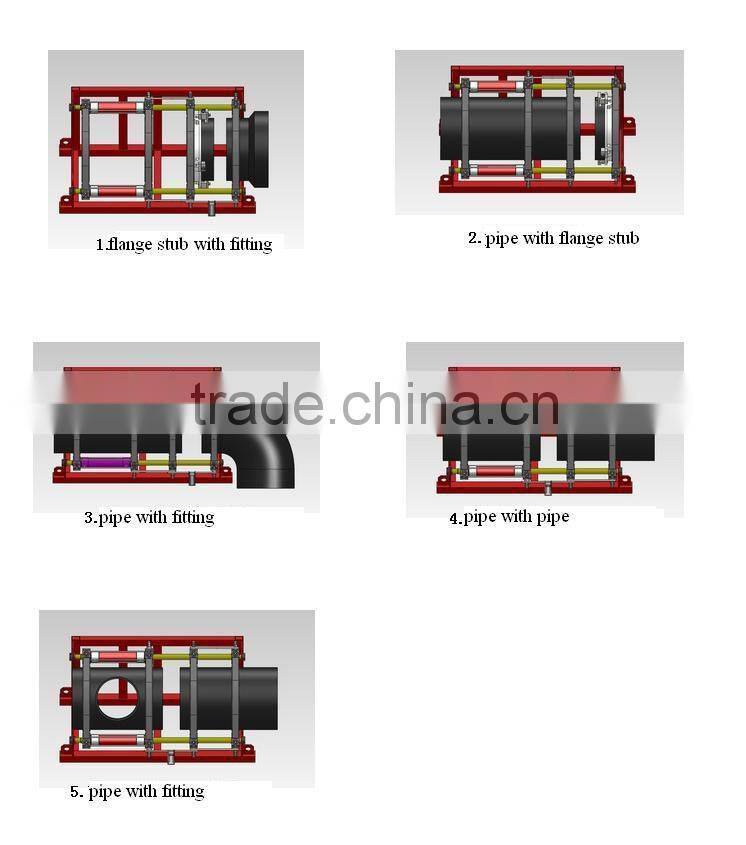

♦ Changeable welding position enables to weld various fittings more easily
♦ High accurate and shockproof pressure meter indicates clearer readings
♦ Separate two-channel timer records time in soaking and cooling phase
Optional parts:

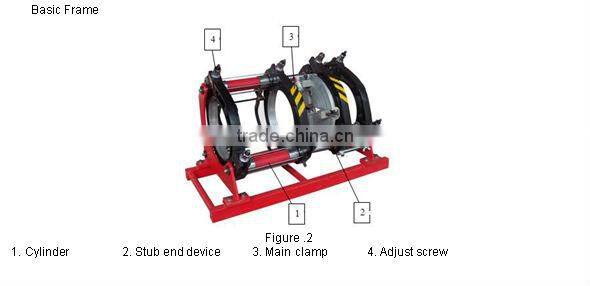

Stub end device for short flange stub
Data logger
The main parameters:
Model |
SHD315 |
Pipe size(mm) |
90,110,125,140,160,180,200,225,250,280,315 |
Heating plate Max. Temp. |
270°C |
Temp. deviation in surface(170~250°C) |
<±7°C |
Pressure adjustable ranges |
0-6.3Mpa |
Working voltage |
220V,50Hz |
Heating plate power |
3.5KW |
Planing tool power |
1.1KW |
Hydraulic unit power |
0.75KW |
Total power |
5.35KW |
Special Description:
Our Advantages:
Along with the property of PE material continuous perfecting and raising, PE pipes are extensively used in gas and water supply,
sewage disposal, chemical industry, mine and so on.
For more than ten years, our factory, WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD has been researching and developing SH series plastics pipe butt fusion machine that is suit for PE, PP, and PVDF.
We have fulfilled the techniques requirements of ISO12176-1. Our products have outstanding features in convenience, reliability, safety and lower price.
Today, our products include nine kinds and over than 20 types that can be applied to plastics pipe construction and make fittings in workshop
There are a group of excellent r&d staff constantly developing new products.
Our quality control people test each of detection device carefully and responsibly.
Our packing workers customize plywooden cases according to the size of each
piece of equipment. We have a group of outstanding business developers.If you
are unable to solve some technical problems,we can take professional technical
engineers to on-site guidence on your side.
WORKFLOW
These are our finished product:
After inspection the each parts of the machine is packed in plastic bags and then carefully packed in plywooden cases
*High quality with reasonable price.
*Twelve months warranty and good after-sales service.
*The customs all over the world accept our product.
*Engineers available to service machinery overseas
*We are international company joined German RITHENBERGER tools group and have further development of domestic and international market.
*Number 1 brand in China welding machine field.
