SHD500 HDPE pipes welding machinery manufacturing SHD500/250 HDPE hydraulic welding machine from 250-500mm;
PE Welding machine; Butt fusion welding machine; PE Welder
Application and features:
1. Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts
2. Removable PTFE coated heating plate with high accurate temperature control system
3. Electrical planing tool with safety limit switch
4. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
5. Low starting pressure ensures reliable welding quality of small pipes
6. Changeable welding position enables to weld various fittings more easily
7. High accurate and shockproof pressure meter indicates clearer readings
8. Separate two-channel timer records time in soaking and cooling phases
9. Suitable for butt welding of plastic pipes and fittings made of PE,PP and PVDF in worksite or workshop,
cannot be used to weld material without description
Technical specifications:
1. Welding range: 250_500mm in diameter
2. Maximum effective pulling force: 16142N
3. Facer power: 1500W 380V 50Hz
4. Heater power: 4500W 380V 50Hz
5. Hydraulic unit power: 1500W (0-63bar) 3800V 50Hz
6. Temp. Deviation in surface: 170-250° C ± 7° C

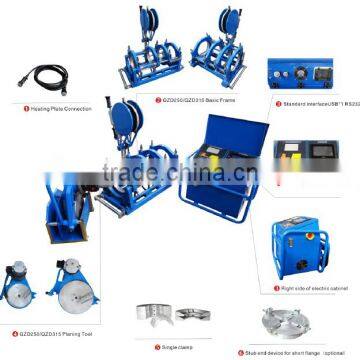

The whole machine consists of machine body, hydraulic unit, facer, heater, support for heater & facer.
Option parts:
Stub end device for short flang
Data Logger
Trolley
Crane
Our product series
Our excellent service
There are a group of excellent r&d staff constantly developing new products. Our quality control people test each of detection device carefully and responsibly. Our packing workers customize plywooden cases according to the size of each piece of equipment. We have a group of outstanding business developers.If you are unable to solve some technical problems,we can take professional technical engineers to on-site guidence on your side.
Our technical engineer and business specialist at home and abroad construction site, giving guidence and debugging
We have good after-sale service and we have a group of experienced engineers, available to help you solve any difficult problems!
Wuxi Shengda, your best and wise choise.
These are our certification and qualification
