Help CenterSHD250/90 Butt Fusion Machine
Related Products
CE passed by SGS
Welding ranges: plastic pipes: 90mm-250mm
(90mm-110mm-125mm-140mm-160mm-180mm-200mm -225mm -250mm)
Ranges of application: PE,PP and PVDF
Working voltage: -220V ±10%,50Hz
Total power: 4.85 kW, including: planing tool:1.1 kW, heating plate:3kW, hydraulic unit motor: 0.75kW
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±5°.
Environment temperature: -10° ~ 45°
Electronic count-down timer for heating and cooling time

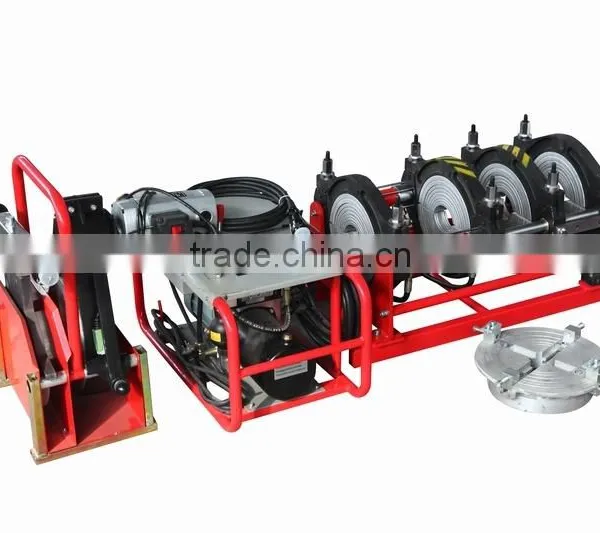

Whole machine consists of basic frame, heating plate, planing tool, hydraulic unit and support (for planing tool & heating plate)
Optional parts:
1. Stub end device
2. Data Logger
Packed in 3 plywood cases
Engineers available to service machinery overseas, 12 monthes guarrantee time.
Wuxi Shengda Plastic Pipe Welding Machine Co., Ltd is the best and biggest maufacturer of butt fusion machine in China. We succeeded in passing assessment of ISO9001 in 2003 and CE certificate in 2006. Now our machine are exported to more than 70 countries.
