Specifications
1 plastic pipe welding machine
2.Pipe size from 315mm to 630mm
3.ISO and CE certificate
4 No 1 brand in China
SHD630 Plastic pipe welding machine from 315mm to 630mm; PE Welding machine; Butt fusion welding machine; PE Welder
Application and features

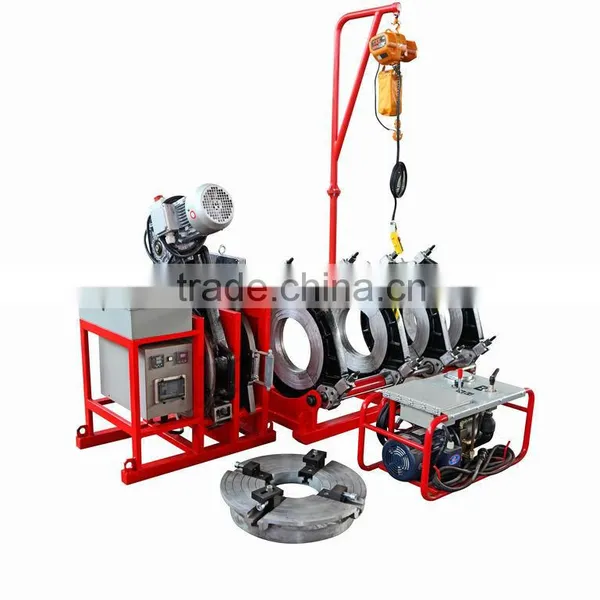

Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate, and optional part
Removable PTFE coated heating plate with high accurate temperature control system
Electric planing tool with safety limit switch
Be made of lightweight and high strength material; Specially designed with a clamp opening angle of 45°
Low starting pressure and high reliable seal structure

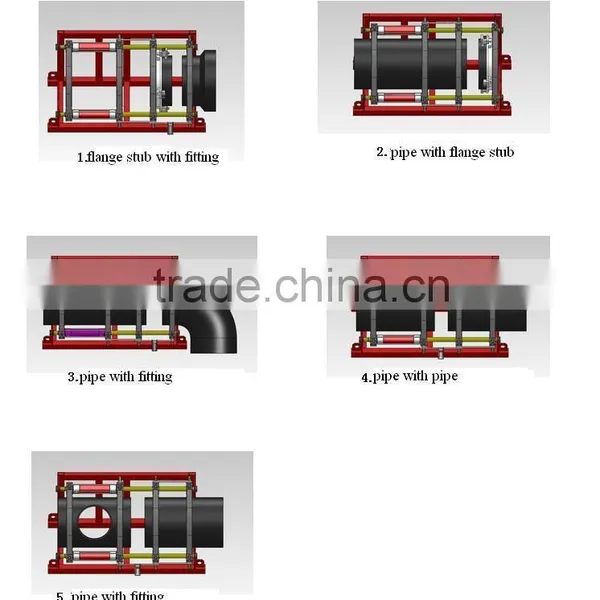

Changeable welding position brings more convenience while welding various fitting
Separate two-channel timer records times in soaking and cooling phases
High-accurate and shockproof pressure meter indicates clearer reading
Model |
SHD630 |
|
Pipe Size (mm) |
315,355,400,450,500,560,630 |
|
Heating Plate Max. Temp. |
270°c |
|
Temp. deviation in surface (170~250) |
±7°c |
|
Pressure adjustable ranges |
0˜6.3MPa |
|
Working voltage |
380V,50Hz |
|
Heating plate power |
9.35KW |
|
Planing tool power |
1.5 KW |
|
Hydraulic unit power |
1.5 KW |
|
Total power |
12.35 KW |
|
Weight |
617Kg |
|
Packing dimension |
Basic frame |
1680×1280×1240 |
Support |
860×1160×1480 |
|
Hydraulic unit |
740×490×620 |
|
Optional Parts

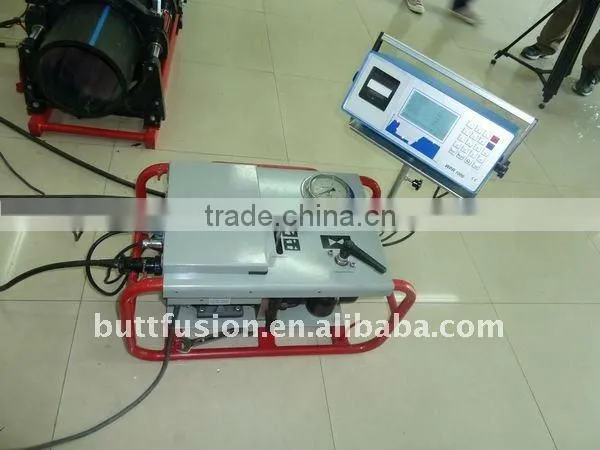

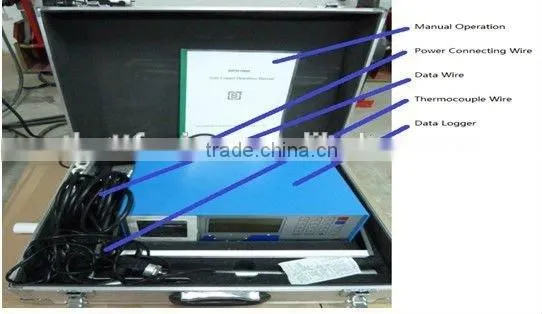

Data Logger System
Mainly used along with SHD series plastic pipes welding machine. It is used for instructing the welding process of PE plastic pipes fusion welding and monitor, record, assess the welding parameters during the welding process
WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of buttfusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
Our quality certificate:
Contact us:
1. Contact name is Nancy Wang (Export department manager)
2. Email is nancywang(at) buttfusion. cn
3. Telephone is +86-510-83217263
4. Mobile is +86-15052428866
