Plast pipe butt fusion welding equipment for plastic pipe from 450mm to 800mm
- 6 Set / Sets per Month
- Shanghai China
- T/T
- LIVTER Pneumatic Model Welder Machine Band Saw Welder For Welding Band Saw Blade
- LIVTER High Frequency Welding Machine Butt Welders Ubn Band Saw Welding Machine
- LIVTER High Frequency Saw Blade Welding Machine Butt Welding Machines For Band Saw Blades
- LIVTER 220v household saw blade welding machine UN-10 copper rod aluminum wire butt welding machine
- LIVTER Saw Blade Touch Welder Woodworking Welding Annealed Steel Butt Welder
- 0.2-32mm butt welding machine for welding stainless steel rib aluminum copper wire iron wire
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | BADA |
Model Number: | SHD800/450 | Input Voltage: | 380V 50Hz Three phase | Current: | 32A |
Power: | 18.2KW | Dimensions: | 450-800mm | Usage: | thermoplast pipe butt fusion welding machine |
Certification: | CE approved by SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Wuxi Shengda (BADA) SHD800/450 plast pipe butt fusion welding equipment for plastic pipe from 450 to 800mm.(crane included)
Application and Features:

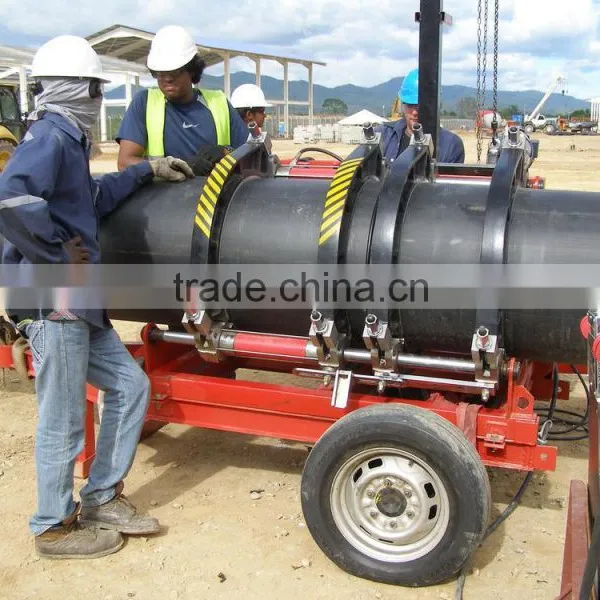

♦ Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop
♦ Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate, crane with hoist and optional parts
♦ Removable PTFE coated heating plate with high accurate temperature control system.
♦ Electric planning tool with safety limit switch enables to start it only when it is locked in operation position.
♦ Made of lightweight and high strength material.
♦ Low starting pressure and high reliable seal structure.
♦ Changeable welding position brings more convenience while welding various fittings.
♦ Separate two-channel timer records times in soaking and cooling phases.
♦ High-accurate and shockproof pressure meter indicates clearer readings.
♦ Labor saving and high efficient crane is available to lift planing tool and heating plate.
The main parameters:
Model | SHD800 |
Pipe size(mm) | 450,500,560,630,710,800 |
Heating plate Max. Temp. | 270°C |
Temp. deviation in surface(170~250°C) | <±7°C |
Pressure adjustable ranges | 0-16Mpa |
Working voltage | 380V,50Hz |
Heating plate power | 12.5KW |
Planing tool Power | 2.2KW |
Hydraulic unit power | 3KW |
Crane power | 0.5KW |
Total power | 18.2KW |
Optional parts:
Stub end device for short flange stub
Data logger
Trolley
packing list:
Item | Dimension with packing(mm) | N.W(kg) | G.W(kg) | Remark |
1 | 2160×1560×1580 | 780 | 860 | Basic frame, insert clamps(710~450mm) |
2 | 1390×1110×1730 | 340 | 440 | Heating plate,planing tool, support, attachments and fittings |
3 | 760×510×640 | 67 | 97 | Hydraulic unit and oil hose |
4 | 730×440×520 | 67 | 97 | Motor hoist |
5 | 1930×660×420 | 127 | 177 | lifter |
Total | 8.95CBM | 1314 | 1626 |
|
Company profile:

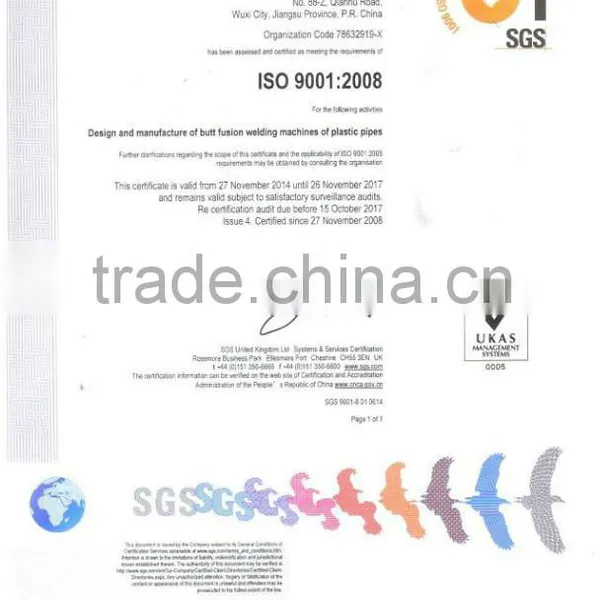

Our company WUXI SHENGDA PLASTIC PIPES WELDING MACHINE CO., LTD is the leader manufacturer of butt fusion equipment in China. We occupy the 70% domestic market and export to more than 45 countries. We specialize in producing a complete range of international standard butt fusion equipment includingfield welding machine, workshop fitting machine, pipe saw, all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS
Good quality and excellent after sale service
Contact us:
1. Contact name is Ms. Nancy Wang (Marketing and sales manager)
2. Skype is happy-nancy-wang
3. Telephone is +86-510-85522321
4. Mobile is +86-15052428866

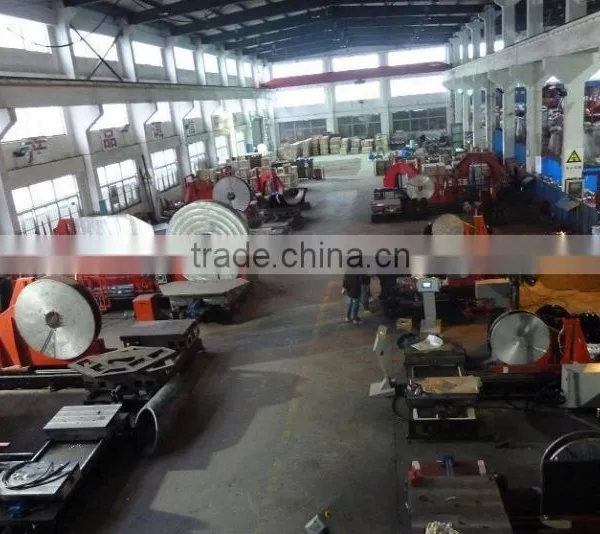

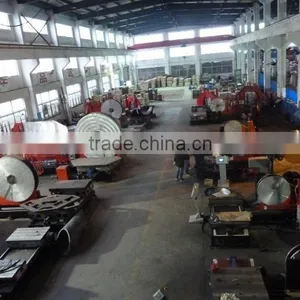

Our workshop:
Contact Us
- Wuxi Shengda Plastic Pipes Welding Machine Co., Ltd.
- Contact nameSteven Lu
- Phone86-510-85522321
- Address88-Z2, Qianyao road Wuxi,Jiangsu
