Wooden Color New Design Anti-baterial Handrails with Competitive Price
1. Description
Hospital Handrails (also called hand rail, guard rail, bumper guards, rash rail) are designed to provide high impact resistance and protect the wall from carts, chairs, beds or other objects, and support pedestrian and wheelchair traffic, Along hallways and in rooms that require a handrail suitable for pedestrian and wheelchair traffic. Handrails are used in hospitals, hotels, restaurants, schools, waiting lounges and shopping malls to offer people a support to hold while walking.
In fact most hospitalizations for fractured bones and other types of trauma in the senior years arises from falls. A simple measure like installing handrails in the home and hospital – at key spots like the staircase and bathroom, can play a major role in reducing the chances of falls in the elderly.
2. Feathers
a) Our hospital handrails and bumper guards are designed to provide pedestrian guidance and support;
b) Provide high impact resistance to protect the wall from carts, chairs, beds or other objects
c) Unique design eliminates the possibility of injuries to hands and arms.
d) The PVC covers are easy to clean and resistant to bacterial and fungal growth.
e) They all provide a smooth, not cold and comfortable hand grip for pedestrian as well as wheelchair traffic.
f) Meets ADA specifications for adequate knuckle space.
3. Specification
| Product name | PVC handrail |
| Structure | Vinyl cover + inner aluminum retainer + ABS elbow + Anti-crush rubber strip |

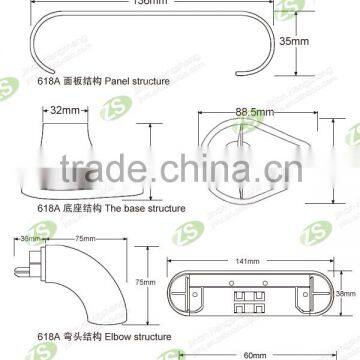

| Size | Width of Vinyl cover: 140mm |
|
Thickness of Vinyl cover: 2.0mm Thickness of Aluminum support: 1.2mm, 1.4mm, 1.6mm, 1.8mm | |
| Length: optional from 1 meter to 5 meters | |
| Weight | Panel:0.69kg/m |
|
Aluminum A:0.83kg/m(1.4mm)0.98kg/m(1.6mm)1.26kg/m(1.8mm)1.3kg/m(2.0mm) B:0.9kg/m(1.6mm);1.1kg/m(1.8mm) | |
| Elbow: 0.11kg/pc, Bracket: 0.0346kg/pc | |
| Color | Blue, yellow, pink, wood color, or as you request |
| Configuration |
1m handrail=1pc elbow, 0.5m handrail=1pc bracket, 1pc elbow=1pc screw, 1pc bracket=1pc screw |
3. Application
Handrails should be installed wherever vertical interior surfaces can be damaged by moving objects that result in gouges, scratches and scuffs.
All of our handrail systems are SGS approved & TUV standards which provide secure personal support and wall protection system for the corridors in hospitals, clinics, nursing/care homes, schools, airports, train stations and bus terminals; On walls and partitions in lobbies, hotels, retirement homes and sports centers, offices, hallways and other heavily trafficked areas of commercial buildings.

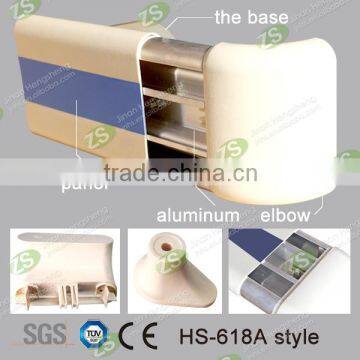

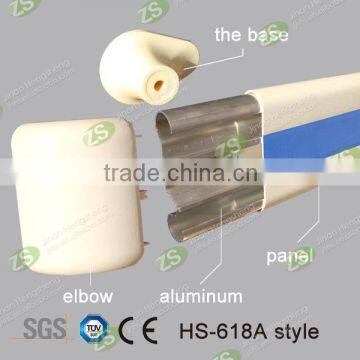

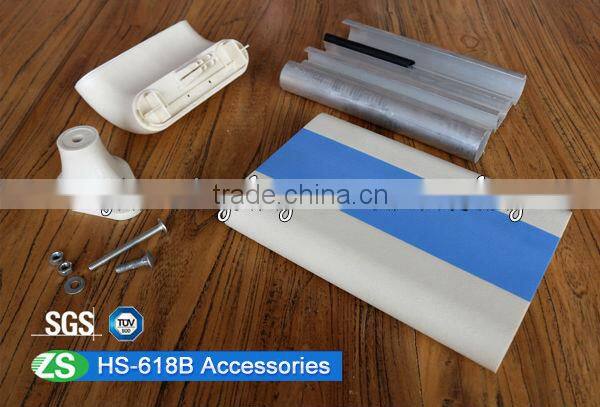

4.Accessories
1.PVC Cover: It is the surface part of the wall mounted plastic handrail. Material is Vinyl (PVC).
2. Aluminum Alloy Board: It is under the PVC cover, to support the covers.
3. ABS End Cap: One side is put into the wall mounted PVC handrails to cover the end;
4. ABS Elbow Corner: It is used to connect two pieces of wall mounted PVC handrails in 90°.
5. ABS Installing Bracket: It is fixed on the wall, to support the aluminum alloy boards.
6. Rubber Buffer Bar: To enhance the buffering function.

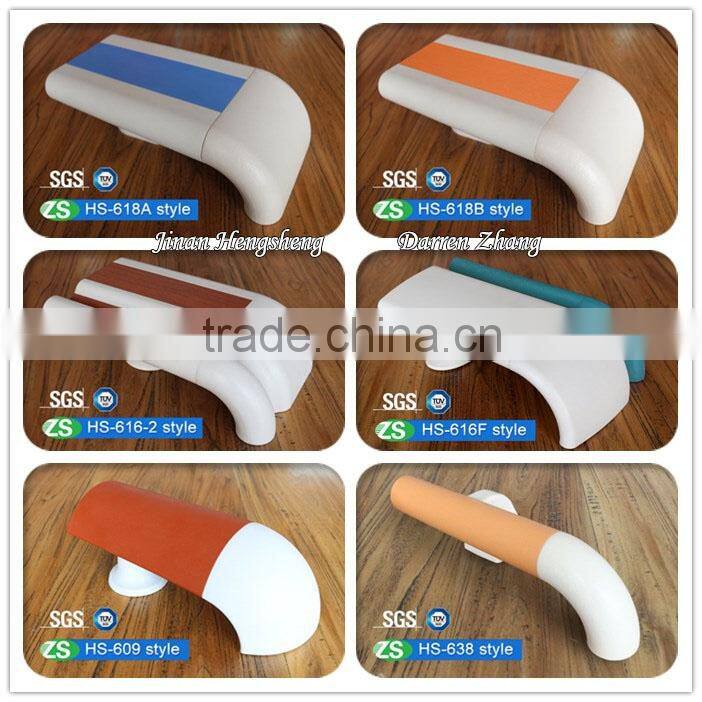

5.Handrail Other Models
More models can be provided with different sizes, shapes and colors. Any size and color can be customized.
Model No. |
Diemension/Size in mm |
Thickness (mm) |
Install Height (mm) |
Distance from Wall (mm) |
||
Width |
Length |
Vinyl Cover |
Al-alloy Retainer |
|||

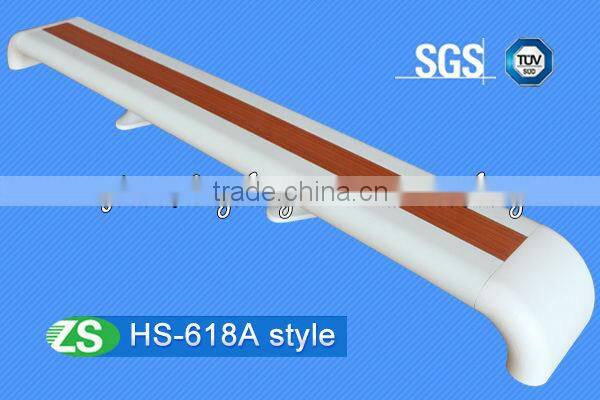

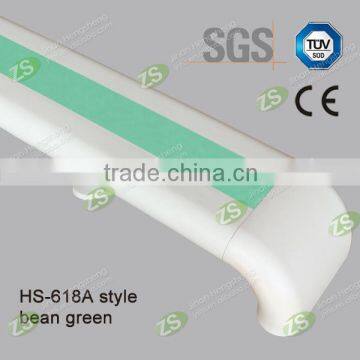

HS-618A |
140 |
3000/5000 |
2 |
1.4 / 1.6 / 1.8 /2.0 |
760 |
38 |

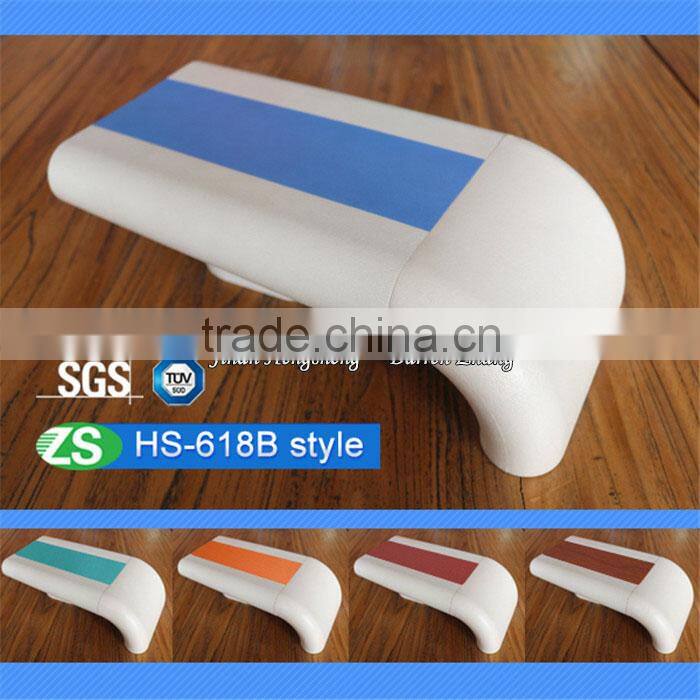

HS-618B |
140 |
3000 / 5000 |
2 |
1.6 / 2.0 |
760 |
38 |
HS-618C |
140 |
3000 / 5000 |
2 |
1.6 / 1.8 |
760 |
38 |
HS-616 |
159 |
3000 / 5000 |
2 |
1.4 / 1.8 |
760 |
38 |
HS-616F |
140 |
3000 / 5000 |
2 |
1.6 / 1.8 |
760 |
38 |
HS-609 |
89 |
3000 / 5000 |
2 |
1.4 / 1.8 |
760 |
38 |
HS-638 |
39 |
3000 / 5000 |
2 |
1.8 |
760 |
38 |
6.Packaging And Delivery
Inner plastic film, outer cartons or according to customer’s special request
Panel: plastic film + carton 10pcs/carton
Aluminum: plastic film + carton 6pcs/carton
7.Certifications
Our product has gotten the SGS Certificate and be authorized by TUV
8.Our Customers
Our products are expoted to more than 60 contries, such as Korean, Japan, Singapore, Australia, USA, Canada, UK, Mexico, Brazil, Spain, Russia, India, Vietnam, Indonesia, Germany, France, UAE, Turkey, South Africa, etc
9.Contact Us
Any color, shape, size, can be customized according to your request.
Leave an inquiry to know more details about Free sample, Price, Packing, Shipping and Discount.
Your questions will be very welcome, please feel free to contact us.
