Help CenterGYK-C Automatic 2 Color Printing Machine
Related Products
-
YS Automatic Carton Folder GluerUS$ 9,200 - 600,000MOQ: 1 Set -
SBF Thin Blade Paper Separating and Line Pressing MachineNegotiableMOQ: 1 Set
-
GZK-C Automatic Carton Box Slotting MachineUS$ 22,000 - 34,900MOQ: 1 Set
-
PE Automatic Carton Baler Box Shrink Wrapping MachineUS$ 500 - 2,000MOQ: 1 Set
-
GYK Automatic Feeding Printing and Slotting MachineryUS$ 67,900 - 177,900MOQ: 1 Set
Specifications
Printing Machine>Easy to operate
>Automatic zero setting
>European standard
>Repeat orders storing

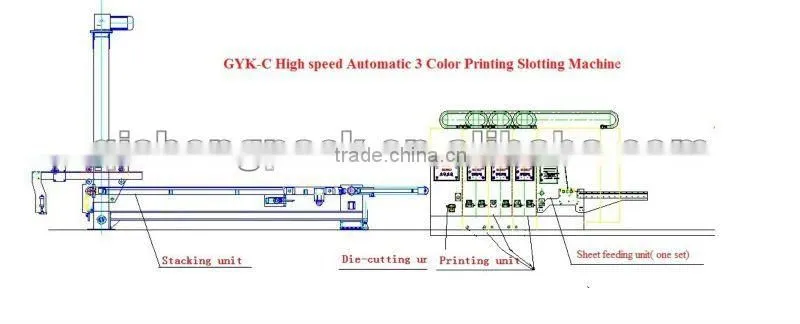

GYK-C Automatic 3 Color Printing Machine

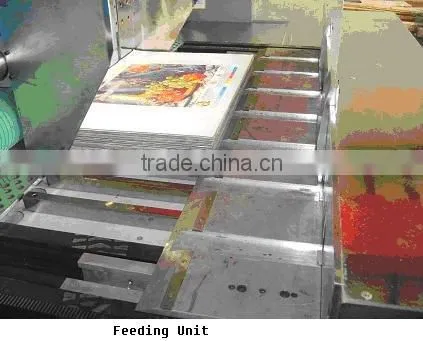

Feeding unit

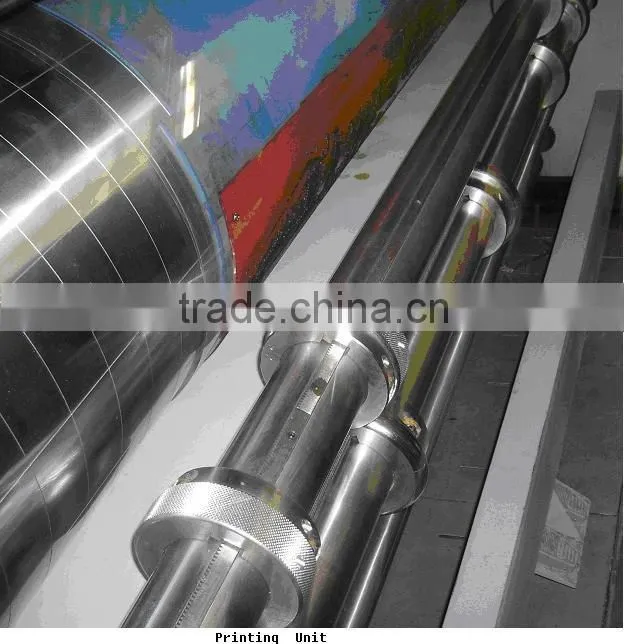

Printing unit
Slotting unit
General features
The machine is manufactured with the aims to meet the tough operation requirement, reliable ,good function and safe, Hence ,standard parts ,fast set-up and easy to operate are our advantages
Best material and part are used
Transmission gear are hardened and ground (hardness>60HRC)
Automatic zero setting and return to the pre-set position after open
Chrome plated shafts
The machine is also equipped with an automatic lubricating system that keeps the lubricant levels in each unit uniform at all times
PLC with multifunction touch screen control
European standard specifications for all electrical and pneumatic components
Repeat orders storing and recalling for fast set-up
Main motor is inter-locked, only operatable when units are locked close
Modal | GYK--C-1200*2800 | GYK--C-1400*2800 | GYK--C-1600*3000 |
Color | Two-color | Two-color | Two-color |
Max production speed(page/min) | 140 | 120 | 110 |
Max feeding size (mm) | 1200*2500 | 1400*2500 | 1600*2700 |
Skip feeding(mm) | 1400* 2500 | 1600* 2500 | 1800* 2700 |
Min. feeding size(mm) | 350*650 | 400*650 | 450*650 |
Max. printing size(mm) | 1150*2400 | 1350*2400 | 1550*2600 |
Suitable paperboard thickness(mm) | 2-12 | 2-12 | 2-12 |
Minimum grooving height(MM) | 100 | 100 | 100 |
Maximum grooving depth | 0-300 | 0-350 | 0-400 |
Standard printing plate thickness(mm) | 7 | 7 | 7 |
Axial drifting of plate roller(mm) | ±10 | ±10 | ±10 |
Minimal slotting opens a spur (MM) )Set a knife right (long * width of long * width *) Oppose a knife (long * width of long * width *) |
160*160*160*160 |
170*170*170*170 |
180*180*180*180 |
250*60*250*60 | 260*60*260*60 | 270*60*270*60 | |
Power of main motor(kw) | 22 | 30 | 35 |
Overall power (kw) | 30 | 40 | 45 |
(In addition the machine had better have stacking machine supporting together. Otherwise the speed to no hurry after paper.)
