SBF Thin Blade Paper Separating and Line Pressing Machine

SBF Thin Blade Paper Separating and Line Pressing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, All trades and professions
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, All trades and professions
Packaging Type Cartons
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Power 3-4 kw
Place of Origin Shandong, China
Brand Name Qisheng
Model Number SBF2200

Specifications

separating and line pressing machine
1.High quality,error-free in paper
2.Driven by stepless moter
3.low voice and easy to ad

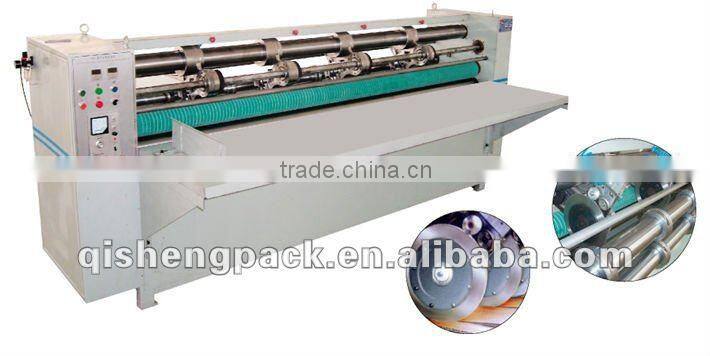

SBF Thin blade paper separating and line pressing machine





SBF Thin blade paper separating and line pressing machine

Semi-Automatic cardboard creasing and cutting machine adopts manual feeding for straight paperboards, and automatic-feeding for cross paperboards. It has the features of easy, stable adjustment, convenient repair and maintenance. This machine is used to cut the hard cardboard, grey paperboard bind in the book cover.

It can cut the big size cardboard into required size, and into many slots at one time, so it has high working efficiency. This machine is necessary equipment in book binding.

        Main technological parameters

Model(mm)

SBF2200

SBF2500

SBF3000

Width

2200

2500

3000

Max feeding size

2100

2400

2900

Min cutting size

120

120

120

Max knife diameter

φ260

φ260

φ260

Min knife diameter

φ225

φ225

φ225

Power

3

4

4

Pressing line wheel

6

6

6

Cutting knife

4

4

4

Dimension

3100*1250*1350

3400*1250*1350

3950*1250*1350

Notice: According to customer’s dimension, width can be made wide or narrow. The maximum width can be 3500mm.
