Automatic corrugated paperboard carton machineHigh-speed,
Fully Automatie,
Printing, slotting, die cutting

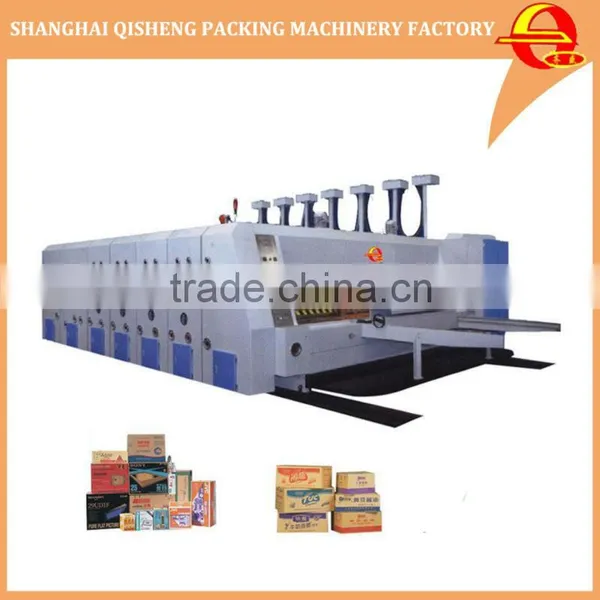

Automatic corrugated paperboard carton flexo printer slotter die cutter machine
General features
The machine is manufactured with the aims to meet the tough operation requirement,reliable ,good function and safe,Hence ,standard parts ,fast set-up and easy to operate are our advantages
Best material and part are used
Gest train are hardened and ground (hardness>60HRC)
Automatic zero setting and return to the pre-set position after open
Chrome plated shafts
The machine is also equipped with an automatic lubricating system that keeps the lubricant levels in each unit uniform at all times
PLC with multifunction touch screen control
European standard specifications for all electrical and pneumatic components
Repeat orders storing and recalling for fast set-up
Main motor is inter-locked,only operatable when units are locked close
Function of Feeder Unit
1.Continuous or skip feeding is aviliable with counter
2.Sun Automation Lead Edge Feeder with three wheel-shafts and strong vacuum transfer for precise and 3.Variable frequency drive control for vacuun blower fan for increased or decreased vacuunm suction to match different sizes of paperborad
4. Dust removal system with brush and segmented vacuum sheet clearance
5.Self-locked system adopted for adjusting feeding rolls gap
6.Motorized and PLC control of feeder side guides
7.Motorized backstop forward/backword and up/down position for easy and quick adjustment
8.Main motor is protected from starting up when units are not fully closed and locked
Function of Printer unit
1.Available with either Mattews or Roll mounting system
2.Pnumatic clutch is adopted on the anilox roll to :(a)make the roll run at the same speed as the main motor when the unit is printing :(b)make the roll stop when the unit is not printing:(c)reduce the possibility of damage to the rubber roll and anilox roll for improper operation:(d)allow units which are not in use to be washed up while running
3.Printing register is digitally controlled by motor and PLC(±10mm)
4.Quit set and self locking pull collars
Function of Slotter unit
1.An internal gear adjusts the height of the carton bos and prvents the lubricating oil from spilling or optimal scoring quality
2.Pre-creaser and creaser for optimal scoring quality
3.Upper creasing roll covered by anvil ring ,so paperboard is not damaged easily
4.Slotting bosses move along linear bearings and are driven by lead screws for flexible and precise movement
5.Upper boss and lower boss are coupled to keep the two knives aligned while moving,which is helpful to prolong service life
6.Slotting register and height of carton bos are digitally controled by motor and PLC
7.Transversal movement os the pre-creasing rolls ,creasing rolls ,and slotting boeeseare digitally controled by motor and PLC
8.Motorized montrols of the slotting bosses caliber
9.Manual and self-locked caliber adjustment of pre-creaser and creaser
10.A protective device prevents the slotting knife from crashing when the height of carton box is adjusted
Function of Die-cutter unit
1.Side to side oscillation of anvil drum(50mm)
2.The die drum transverse movement can prolong the service life of anvil cover
3.Die-cutting register is digitally controlled by motor and PLC
4.The die-cut cylinder lateral register is digitally controled by motor and PLC ,rang about ±10mm
5.Motorized caliper adjustment between anvil roll and die drum
6.Self-locking system is adopted on feeding rolls
Main specification:
standard |
900*2000 |
900*2400 |
1200*2400 |
1200*2800 |
1400*2800 |
1600*2800 |
Machine max speed |
180 |
180 |
160 |
160 |
150 |
140 |
Machine economic printing speed(pcs/min) |
140 |
140 |
130 |
130 |
120 |
110 |
Max paper feeding size(mm) |
1000*2000 |
1000*2400 |
1200*2400 |
1200*2800 |
1400*2800 |
1600*2800 |
Min paper feeding size(mm) |
280*685 |
280*685 |
300*685 |
300*685 |
350*685 |
400*685 |
Paper feeding thickness range(mm) |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
Max printing area(mm) |
950*2000 |
950*2400 |
1150*2400 |
1150*2800 |
1350*2800 |
1550*2800 |
Standard printing forme thickness (mm) |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
Production power (kw) |
22 |
22 |
30 |
30 |
35 |
40 |
Total power(kw) |
40 |
40 |
45 |
45 |
45 |
50 |
