Specifications
GYMK Automatic carton slotting die cutter machine1. one year warranty
2.export to more than 20 countries
3.good service

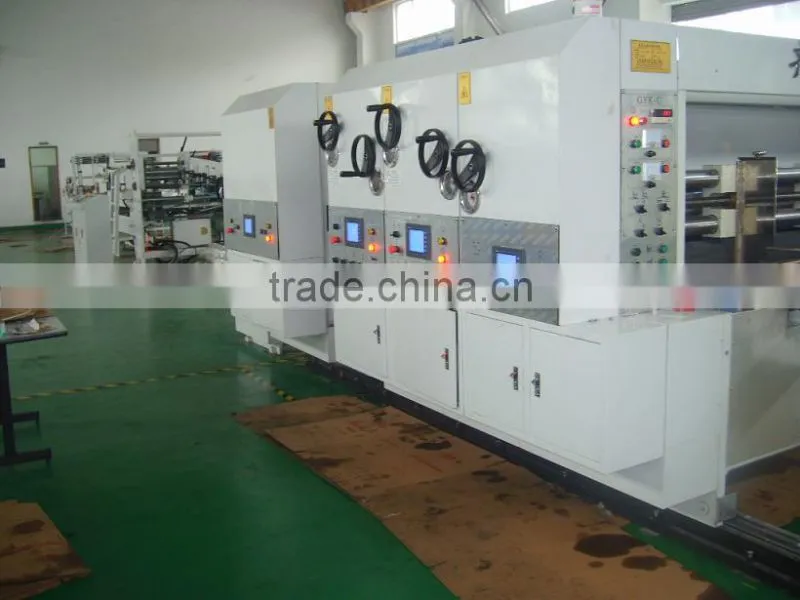

GYMK Automatic carton slotting die cutter machine
carton die Cutter Machine
carton slotting Machine
die Cutting Machinery
Introduction for integral machine:
Machine adopts PLC program control, the drive to adjust the phase body, touch screen and button dual system operation; controllable roller intelligent automatic landing, the Indian version scrub the memory reset automatically, personalized Qi paper, fixed to complete the Auto Standby function.
Main drive gear made of high quality alloy steel (20CrMnTi), by program-controlled carburizing and quenching, grinding treatment, the accuracy can be achieved six high hardness, high-precision gears (tooth surface hardness HRC58-62).
Touch-screen display setting value, the control plate of each group and the position of the adjustment slot knives; can set the production rate, and a count and prompts.
Pull the paper delivery round of self-locking quick transfer function, avoid the destruction of the screw fastening devices operating on the roller and a great inconvenience.
Application of free connection device, eliminating the gap generated by the traditional connection to maintain long-term precision printing chromatic.
Gearing body splash with spray devices; lubrication system automatically cycles and installation of seepage oil bodies.
The units used between the cylinder lock and locking machine with a strong self-locking mechanism, to ensure the stability of the unit.
Specification:
standard |
900*2000 |
900*2400 |
1200*2400 |
1200*2800 |
1400*2800 |
1600*2800 |
Machine max speed |
180 |
180 |
160 |
160 |
150 |
140 |
Machine economic printing speed(pcs/min) |
140 |
140 |
130 |
130 |
120 |
110 |
Max paper feeding size(mm) |
1000*2000 |
1000*2400 |
1200*2400 |
1200*2800 |
1400*2800 |
1600*2800 |
Min paper feeding size(mm) |
280*685 |
280*685 |
300*685 |
300*685 |
350*685 |
400*685 |
Paper feeding thickness range(mm) |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
2.5-12 |
Max printing area(mm) |
950*2000 |
950*2400 |
1150*2400 |
1150*2800 |
1350*2800 |
1550*2800 |
Standard printing forme thickness (mm) |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
Production power (kw) |
22 |
22 |
30 |
30 |
35 |
40 |
Total power(kw) |
40 |
40 |
45 |
45 |
45 |
50 |
