Specifications
corrugated box rotary slotter machine1.one year warranty
2.export to more than 20 countries
3.good after sale service

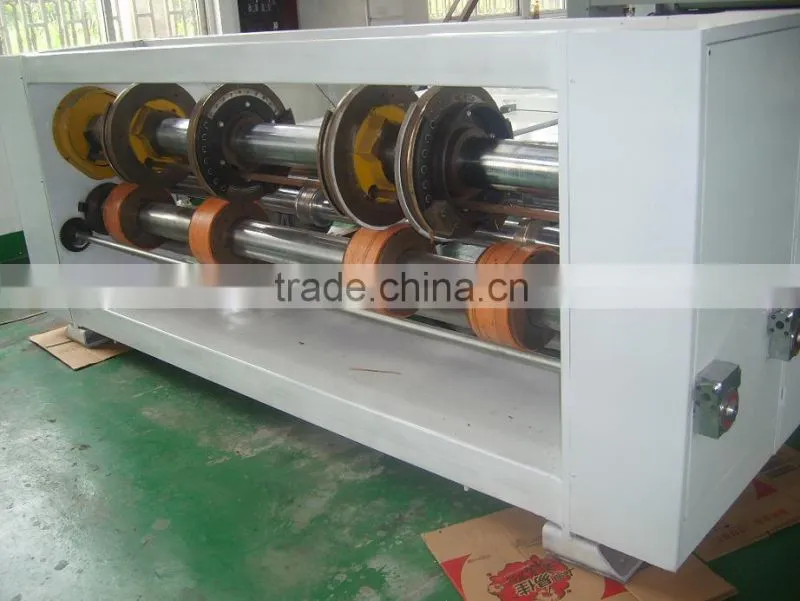

Semi automatic corrugated box rotary slotter machine
Description:
This kind of machine is used for corrugated cardboard cutting, line pressing, slotting and corner cutting. Indispensable device for carton box factory.
Features:
· Semi-auto paper feeding by chain.
· Reconfirmed position fixing ensures accurate paper feeding.
· All shafts are grinded and plated with chrome.
· All gears are lubricated centrally, which makes low noise and stable running.
· Planetary transmission, electrical image positioning.
· Integrated movement of the four grooving blades.
· Auto counting system is optional for precise control of working speed.
· Choice grooving blades are used.
· Both 4-shaft or 6-shaft forming machine can be used.
· Equipped with lighting system.
· Imported electrical appliances and bearings are used.
Technical Specifications:
Model (Unit:mm) |
1200*2200 |
1400*2600 |
1600*2800 |
1800*3000 |
Breadth |
2200 |
2600 |
2800 |
3000 |
Maximum feeding size |
1200*2000 |
1400*2600 |
1600*2800 |
1800*3000 |
Minimum feeding size |
280*280 |
300*300 |
420*420 |
500*500 |
Maximum grooving size |
7*300 |
7*350 |
7*400 |
7*450 |
Minimum grooving clearance |
100 |
100 |
100 |
100 |
Grooving blade thickness |
7 |
7 |
7 |
7 |
Machine overall dimensions |
3150*3150*1400 |
3550*3200*1400 |
3850*3300*1500 |
4050*3450*1600 |
Maximum speed |
70pages/min |
60pages/min |
60pages/min |
50pages/min |
Weight (ton) |
2.6T |
3T |
3.5T |
4.5T |
Power rate |
2.2KW |
3KW |
4KW |
5.5kW |
