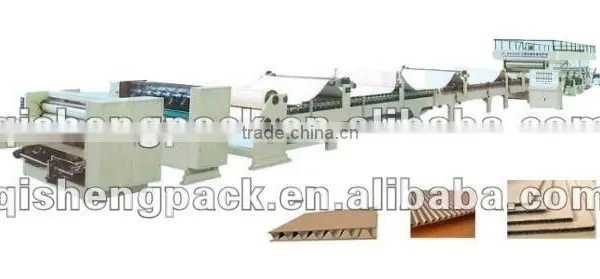

5ply Corrugated Board Production Line

Specifications

Corrugated Board Production Line
>Automated mass production
>Centralized control
>Easy operation&maintenance
>Energy saving

5ply Corrugated Board Production Line



Usage and feature:

The assembly line for automated mass production, can produce good national standard corrugated cardboard, high efficiency, good quality board to take centralized control, easy operation, easy maintenance, safety and reliability, greatly reduced the labor intensity. The production line using the latest international energy-saving way to provide high temperature heat conduction oil to heat machine than the steam heating energy savings above 60%, significantly reducing power consumption, effectively reduced the cost of production, is the ideal product for today's economy and medium-sized carton factory.



Details with this 5ply Corrugated Board Production Line
> The total length of integral machine are 68 meters.

>Total Power is 150KW.

>Shaftless holder: Double arms for exclusively up and down.

>Laminator: adopt electromagnetic adjusting motor

>Two roller gluer: use on glossy paper in the bottom two layers of adhesive roller guide

>Dryer: Total length 10 meters, consists of 14 pieces of heating board. Pneumatic device, separate automatically when    power off

>Molding Part: including 27 pairs of molding shaft

>Slitter: select common knife or thin knife according to customer’s request, highly automatic and easy operation

>Cutting machine: Into the computer and mechanical single-pole single-pole total of four optional means for customers to choose.

> Boiler (self), coal consumption 120 kg / hr
>Specification: model 1300, 1450, 1600 and 1800.
