Metal wire peeling machine from China supplier
Steel Wire Rod Polishing Machine :
Steel Wire Rod Polishing Machine: PB6/20 Steel Wire Rod Polishing Machine is designed for the two structures, depending on the user requirement, one :steel keeping circular structure H after peeling , namely coil → coil, model PB6/20P;another: coil and bar structure, viz. coil → bar, model PB6/20B.
Application range: structural steel, bearing steel, spring steel, stainless steel, valve steel, high-speed tool steel, tool steel, high temperature alloy, titanium alloy and so on.Its processing is as below:
Main technical characteristics:
Model |
KP18C wire rod—wire rod |
|
before |
Diameter range(mm) |
Wire rod:Φ5.5~Φ18 |
Tensile strength σb(Mpa) |
≤900 |
|
Surface hardness |
≤HB320 |
|
curvature |
≤1. 5 |
|
Diameter tolerance |
d-2-GB/T702-2004 |
|
roundness |
≤50% diameter tolerance |
|
Surface roughness(Ra) |
≤25mm |
|
after |
Unilateral cutting depth(mm) |
0.15-0.4 |
Diameter range(mm) |
Φ5~Φ17 |
|
Diameter tolerance |
≤IT10 |
|
Surface roughness(Ra) |
≤6.3μm |
|
roundness (mm) |
≤0.03 |
|
speed(stepless speed m/min) |
1.0~8.0 |
|
Cutter head rotation speed(stepless speed)(r/min) |
900~2500 |
|
Main moter power(kW) |
45 |
|
Feeding motor for peeling machine power (KW) |
4 X2 |
|
Flat-vertical straightening machine power(kW)(for referance) |
15 |
|
Feeding motor for Flat-vertical straightening machine power(kW)(for referance) |
2.2 |
|
Coiler power(kW)(for referance) |
22 / 30 |
|
On the technical parameters are the references, the company can special custom-made according to customer demand.
Raw material scene:

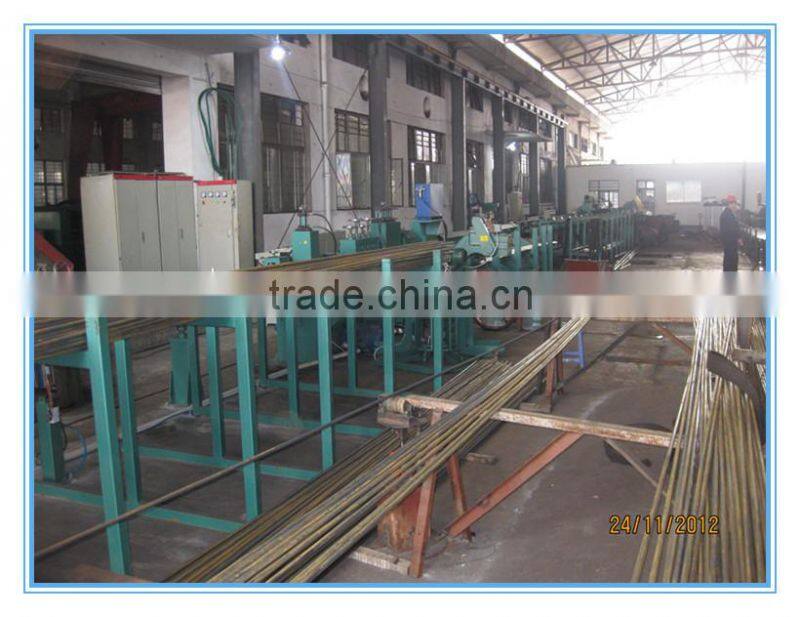

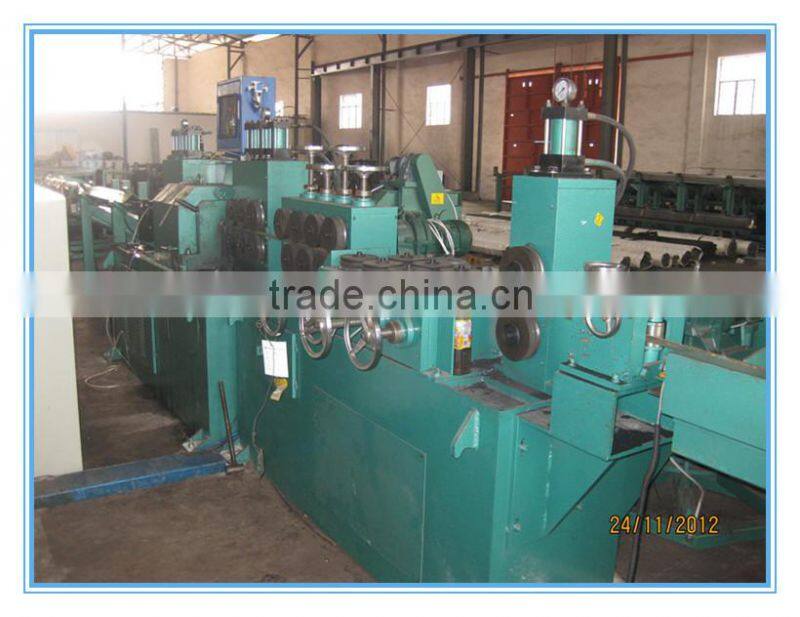

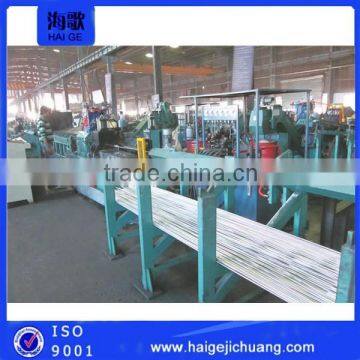

Processing photo:
Our Certificate:
How to contact us ?
For more information ,pls feel free to let us know ! Hope to have a win-win cooperation! Thanks in advance!
