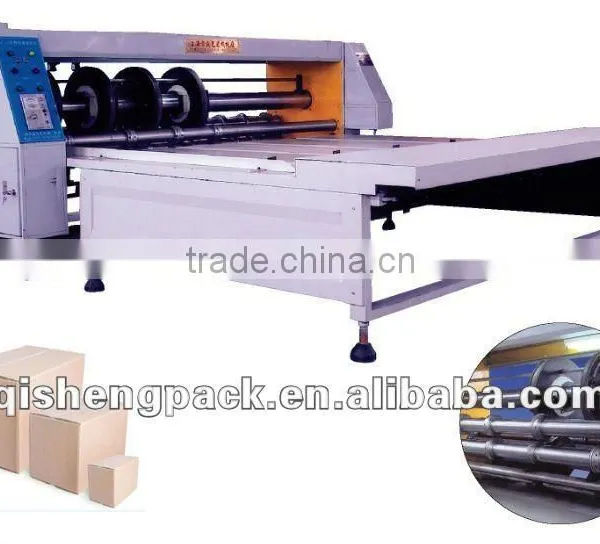

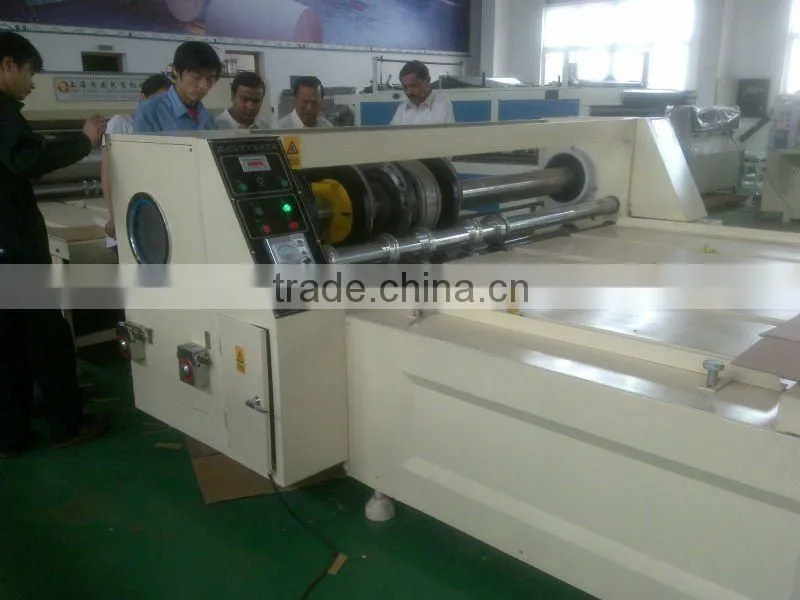

Qisheng ZK-C Automatic corrugated cardboard machine
This kind of machine is used for corrugated cardboard cutting, line pressing, slotting and corner cutting. Indispensable device for carton box factory.
Features:
- Semi-auto paper feeding by chain.
- Reconfirmed position fixing ensures accurate paper feeding.
- All shafts are grinded and plated with chrome.
- All gears are lubricated centrally, which makes low noise and stable running.
- Planetary transmission, electrical image positioning.

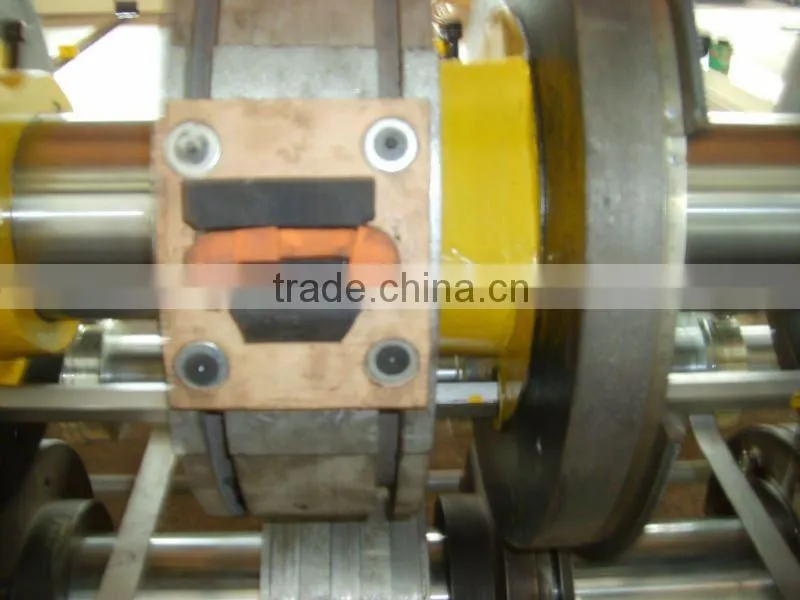

- Integrated movement of the four grooving blades.
- Auto counting system is optional for precise control of working speed.
- Choice grooving blades are used.
- Both 4-shaft and 6-shaft forming machine can be used.
- Equipped with lighting system.
- Imported electrical appliances and bearings are used.

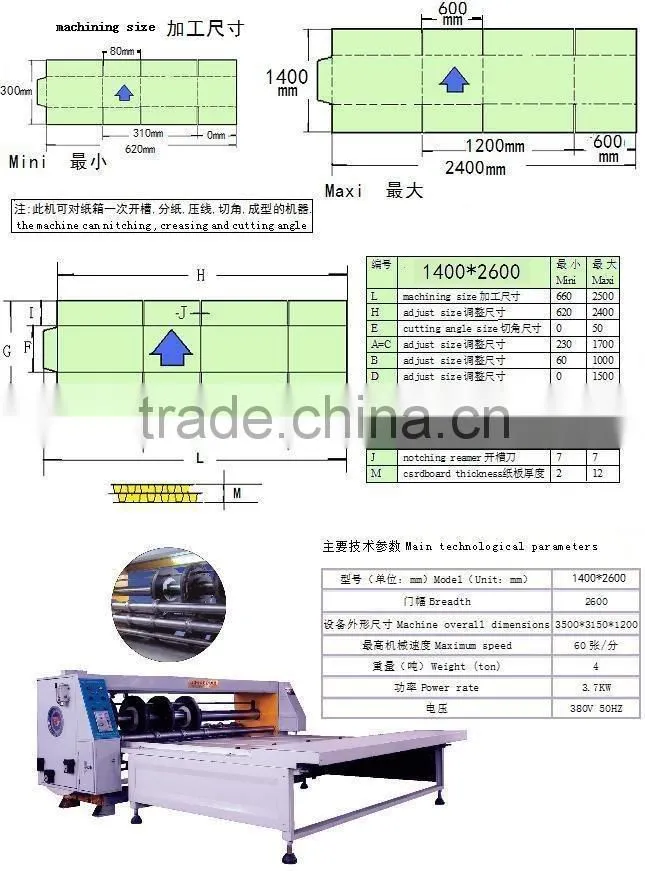

Main technological parameters
Model(Unit:mm) |
1200*2200 |
1400*2600 |
1600*2800 |
1800*3000 |
Breadth |
2200 |
2600 |
2800 |
3000 |
Maximum feeding size |
1200*2000 |
1400*2400 |
1600*2600 |
1800*2800 |
Minimum feeding size |
280*280 |
300*300 |
420*420 |
500*500 |
Maximum grooving size |
7*300 |
7*350 |
7*400 |
7*450 |
Minimum grooving clearance |
100 |
100 |
100 |
120 |
Grooving blade thickness |
7 |
7 |
7 |
7 |
Machine overall dimensions |
3150*3150*1400 |
3550*3200*1400 |
3850*3300*1500 |
4050*3450*1600 |
Maximum speed |
70pages/min |
60pages/min |
60pages/min |
50pages/min |
Weight (ton) |
2.6T |
3T |
3 .5 |
4.5T |
Power rate |
2.2KW |
3KW |
4KW |
5.5KW |
