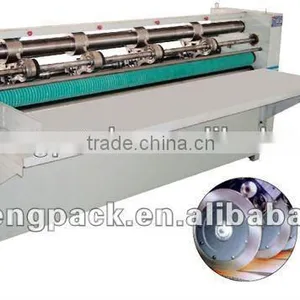

Help CenterAutomatic Paper Board Slitter Machine
Related Products
-
Corrugated Carton Flexo Printer Slotter and Die-cutter MachineryNegotiableMOQ: 1 Set -
Automatic Printer and Cutter MachineUS$ 2,000 - 40,000MOQ: 1 Set
-
China Automatic Flexo Printing Die Cutting MachineUS$ 12,000 - 40,000MOQ: 1 Set
-
Automatic Corrugated Board Carton Box Making Machine Flexo Printer Slotter Die Cutter StackerUS$ 80,000 - 290,000MOQ: 1 Set
-
Crepe Corrugated Carton Box Rotary Die Cutting MachineUS$ 7,770 - 29,400MOQ: 1 Set
Specifications
Automatic paper board slitter machine1.more than 10 years production histories
2.selling well more than 20 countries

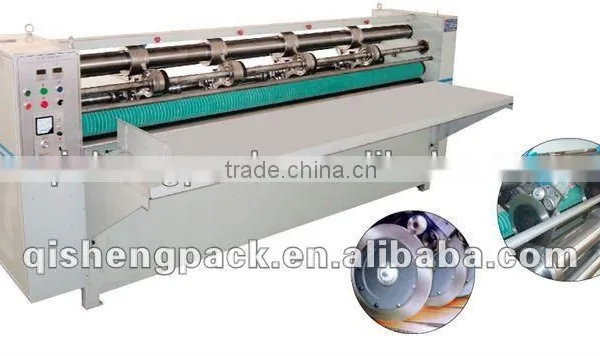

Automatic paper board slitter machine
Functions:
Mark of main being used in carboard paper and line ball.automatic paper board slitter machine
Features:
The machine is driven by stepless motor and its power is transmitted synchronically with gears and sprocket wheels. It is featured with low noise, smooth drive and easy adjustment of breadth. The paper separating blade is made of 1.2mm high-strength alloy and feeding rollers are made of rubber that leave no marks on paper. The machine is error-free in paper separating and good at saving electricity with lower rate. Equipped with auto and manual blade milling unit, the machine can ensure smooth edges of the paper and non shrunken corrugations and is recongized as the ideal equipment for carbon box and packing industries.
Main Technological parameters
Model(Unit:mm) |
SBF2200 |
SBF2500 |
SBF2800 |
Breadth |
2200 |
2500 |
2800 |
Maximum feeding size |
2100 |
2400 |
2700 |
Minimum feeding size |
120 |
120 |
120 |
Maximum blade diameter |
260 |
260 |
260 |
Minimum blade diameter |
225 |
225 |
225 |
Motor power rate |
3 |
4 |
4 |
Trace pressing wheels |
4 |
6 |
6 |
Paper separeting blades |
3 |
4 |
4 |
