One color carton flexographic printing slotting machine1.Printing and Sub Pressing Machine
2.Electrical,Image Positioning

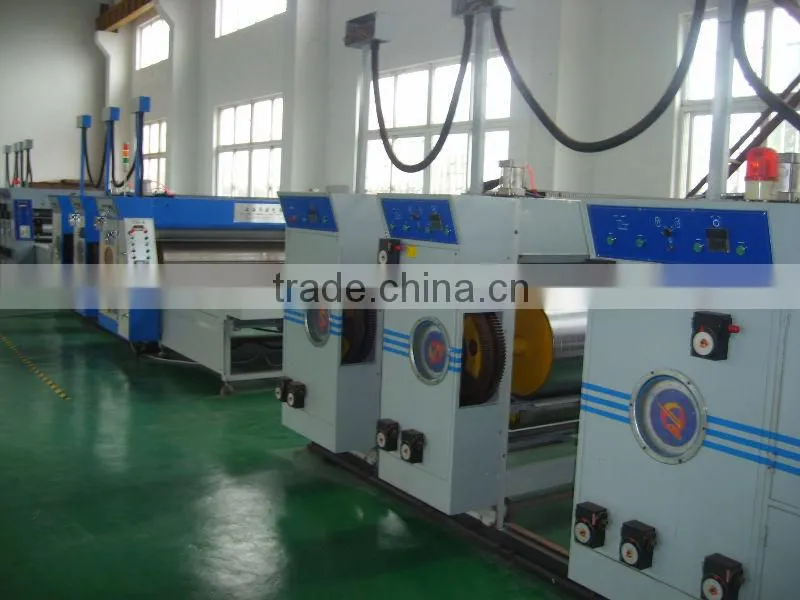

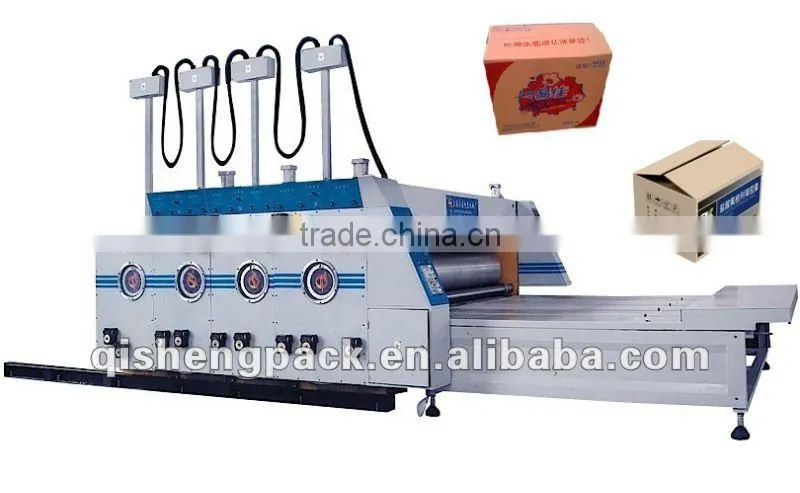

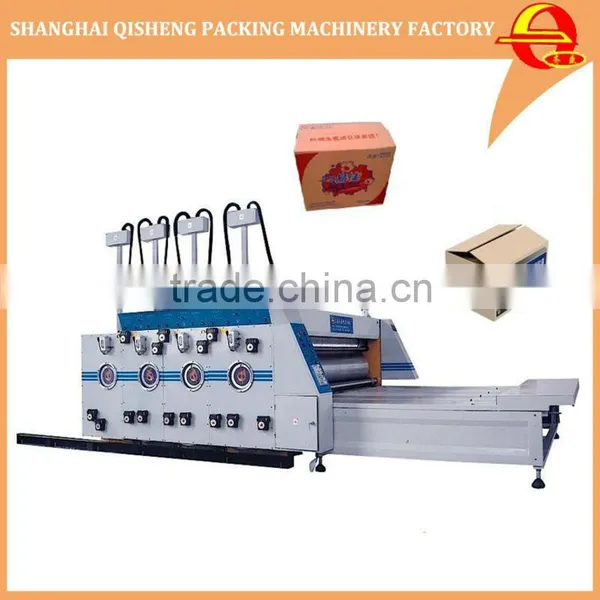

One color carton flexographic printing slotting machine
Features:
Printing section
1.Planetary transmission and electrical positioning.360-degree adjustment in both dynamic and static condition.
2.The embossing rollers get apart from printing template oned machine stops.
3.The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
4.Colors of 1 to 4 can be combined easily.
5.Pneumatic siphon ink supply circulation system.
Lighting system
1.The printing roller is equipped with template hang-on device.
2.Step pedal is sued to control the side of printing plate when in mounting and dismounting.
3.The phasing may an item side,the digital ides decide may

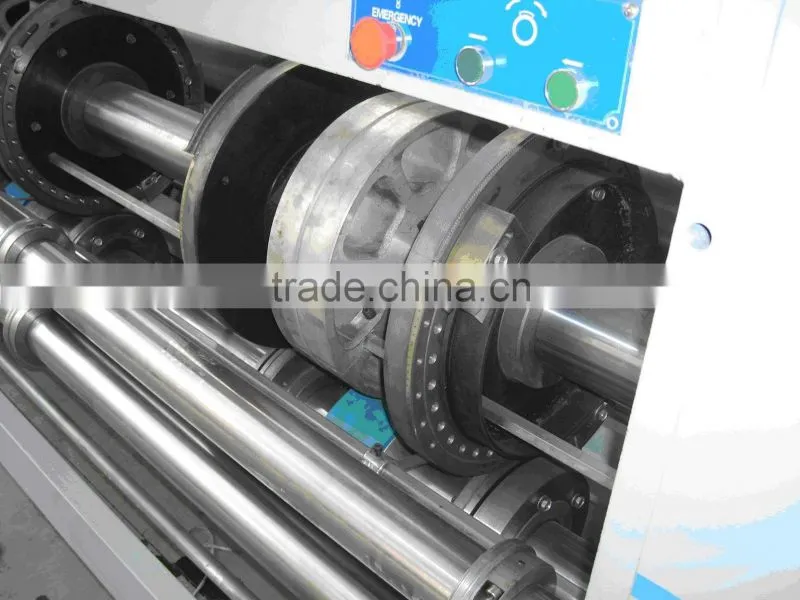

Slotting section
1.360-degree adjustment of grooving position.
2.Integrated movement of the four grooving blades.
3.Top-quality steel blades are used to guarantee smoothness in grooving.
4.Gear are made of 45# forged and high frequency steels that makes no-gap transmission.
5.Transmission gears are joined together with no bonds,which ensures long-tem printing precision.
6.Dip-in lubrication guarantees long life.
7.Electrical shit technology and pneumatic interlock is used on printing section and grooving section.
8.Imported electrical appliances and bearings are used.
Main technological parameters
Model(Unit:mm) |
1200*2200 |
1200*2400 |
1400*2600 |
1400*2800 |
1600*2600 |
1600*2800 |
1800*3000 |
2400*3200 |
Minimum printing breadth |
1150*1800 |
1150*2000 |
1350*2200 |
1350*2400 |
1550*2200 |
1550*2400 |
1750*2600 |
2350*2800 |
Maximum grooving size |
7*300 |
7*300 |
7*350 |
7*350 |
7*400 |
7*400 |
7*450 |
7*600 |
Minimum grooving clearance |
100 |
100 |
110 |
110 |
120 |
120 |
120 |
120 |
Grooving blade thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Standard printing plate thickness |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
Maximum speed |
70 |
70 |
60 |
60 |
60 |
60 |
50 |
30 |
L*W*H |
5500*3100*2500 |
5500*3300*2500 |
5800*3500*2600 |
5800*3500*2600 |
6000*3500*2700 |
6000*3700*2700 |
6500*3900*2900 |
8500*4200*3500 |
