Specifications
Semi-automatic water ink printing machine1.chain feeding
2.water ink printing
3.one year warranty

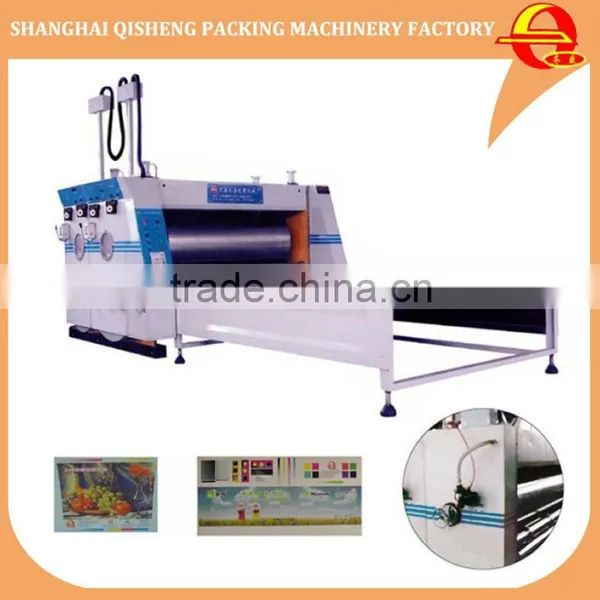

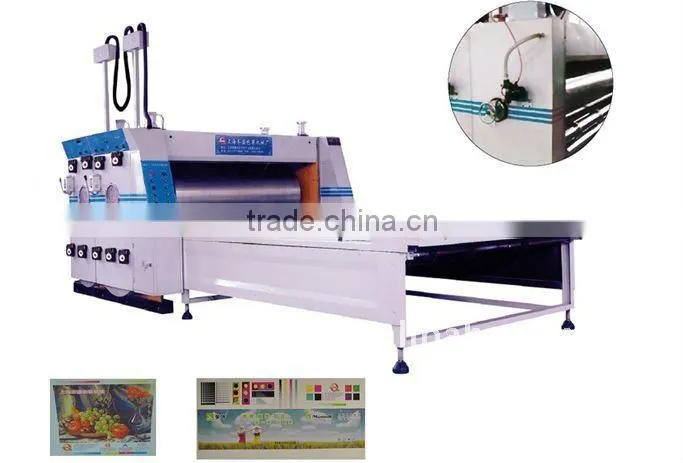

Semi-automatic carton box cardboard water ink printing machine
General features
l Electric machine cluth ,enclosed with alarm bell,when the machine moves forward,alarm bells shall continuously sound for caution to ensure safety of operating workers
l The plane electric inching device enables fast and accurate adjustment 360°forwad and backward phase adjustment can be made whether the machine is operating or stoped
l When the machine is stoped ,the anilox roll will be raised from the printing plate surface automatically ,to avoid staining it
l The automatic idle-running function of the rubber roll can prevent the ink from drying when the operation is pasused
l The printer is equipped with electric counter ,which accurately control the quantity of the printed paperboard
l Spraying circulation is adopted to lubricate the gears,thus reducing the noise ,prolonging the service life of the gears,and improving the accuracy of process printing
l Pneumatic membrane pump is adopted to automatically convey the ink
l Paper trimming and scoring device can be eauipped as an option
main sepcifications:
|
Modal
|
ZSY-1600*2200 |
ZSY-1800*2400 |
ZSY-2200*3200 |
ZSY-1600*2200 |
duction speed(page/min) |
60 |
50 |
40 |
60 |
max.feeding size (mm) |
1600*2000 |
1800*2400 |
2200*3000 |
1600*2000 |
Min.feeding size(mm) |
300*650 |
400*650 |
520*750 |
300*650 |
Max.printing size(mm) |
1400*2000 |
1600*2400 |
2200*2800 |
1400*2000 |
Suitable paperboard thickness(mm) |
2-11 |
2-11 |
2-14 |
2-11 |
Standard printing plate thickness(mm) |
7 |
7 |
7 |
7 |
Axial drifting of plate roller(mm) |
±10 |
±10 |
±10 |
±10 |
Power of main motor(kw) |
1S-3T/2S-4T/3S-5.5T/4S-7.5T |
1S-3T/2S-4T/3S-5.5T/4S-7.5T |
1S-7.5T/2S-11T/3S-15T/4S-18T |
1S-3T/2S-4T/3S-5.5T/4S-7.5T |
Overall power (kw) |
1S-5.5/2S-8/3S-9.6/4S-13.5 |
1S-6.8/2S-9/3S-11.5/4S-13.5 |
1S-8.8/2S-12/3S-16/4S-20 |
1S-5.5/2S-8/3S-9.6/4S-13.5 |
Weight(kg) |
1S-3800/2S-6500/3S-9000/4S-11500 |
1S-4200/2S-7300/3S-10500/4S-13700 |
1S-7600/2S-3800/3S-19800/4S-25800 |
1S-3800/2S-6500/3S-9000/4S-11500 |
Shanghai Qisheng is a famous enterprise in corrugated carton box packing machines manufacturing field. Founded since 1997, we are a leading manufacturer of flexo printing slotting die-cutting machines and 3/5/7 ply corrugated cardboard machines in China. The fully automatic high speed servo feeding printing slotting and die-cutting machine with stacker, automatic high speed printing slotting gluing integrated machine, automatic printing slotting die-cutting machines and complete corrugated cardboard production line manufactured by us, have won widely praise in printing packing industry and built famous brand both in China and overseas market.
1.Provided by the positive and enthusiastic, meticulous and considerate services and technical advisory services
2.Introduce the characteristics and advance of production;
3.Recommend the best equipments’ configuration and the most suitable products
4.The special requirements are based on design and production.5.Free training of production line of major operators; high-quality talents technical services staff
6.Install the equipments of production line, We would strictly control the production process of each link which any unqualified production cannot be out of the factory to make sure the quality
7.Assist in installed planning infrastructure of equipments;
8.Implementation of the contract on time.
9.the technical staff helped t o install the line10.Ensure success at the trial and provision of long-term technical support and services
11.The equipment is guaranteed for one year and provide permanent service
