Company Introduction

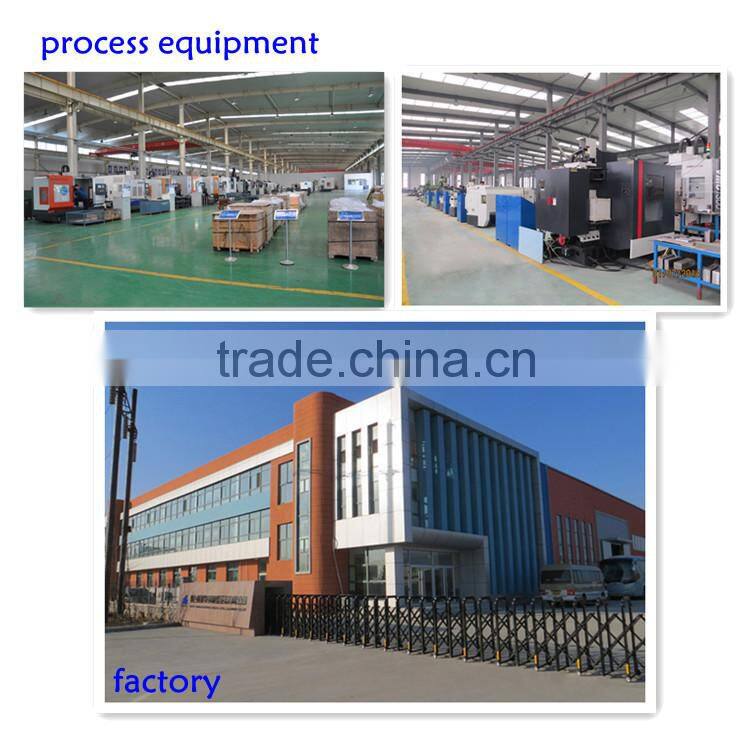

Our company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².
There are one hundred and forty staffs working in the factory. The factory
is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and
finishing equipment for steel(bright steel) for more than ten years.
Our automatic refined finishing equipments, including the bar peeling machine
and straightening machine are at the top-level in this field,no matter for design concept, technical level, production scale,
product quality, or for afterservice. The production quantity and market share
rank the first in China.
Keeping in step with the latest international technology, the R&D center develops
the new equipmentsand upgrades the existing ones that provides a solid
technical support and guarantee for our machines to keep technology leadership
all the time.With advanced technology, high quality, high precision,
high reliability, high efficiency, automatic line process and excellent after-sale service, our metal finishing equipments in full sets not only have been
sold well to nearly thirty domestic provinces, cities, and autonomous regions,
but also spread to Russia, Korea, India, Vietnam,
North Korea, Pakistan, Taiwan, etc.
Main Parameters for your reference
MODEL |
WXC160S |
|
RAW |
Diameter Range(mm) |
Φ50~Φ160 |
Raw Material Length(mm) |
≥4000 |
|
Tensile Strength(Mpa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25-50μm |
|
FINISHED |
Diameter Range |
Φ49~Φ155 |
|
Unilateral Turning Depth (mm) |
0.5~2.50 |
|
Diameter Tolerance |
≤IT10 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤6.3μm |
|
Roundness(mm) |
≤0.05 |
|
Feeding Cutting Speed(m/min) |
0.5-3 (for continuous chips and high strength and hardness should reduce the cutting speed) |
|
Cutter Head Rotational Speed(rpm) |
60~800 |
|
Host Machine Motor Power(KW) |
160 |
|
Auxiliary Machine Motor Power(KW) |
15 |
|
|
Host Machine Outline Dimensions (Length*Width*Height) m |
5.5m * 3m * 2.5m |
|
|
Full Set Machine Outline Dimensions (Including auxiliary) (Length*Width*Height) m |
18m X 3.5m X 3m |
|
Host Machine Weight |
30 (20) |
|
Total Installed Capacity(KW) |
210 |
|
|
Compressed Air Source (users prepare by themselves) |
0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier |
|
Working process
Introduction of Composition

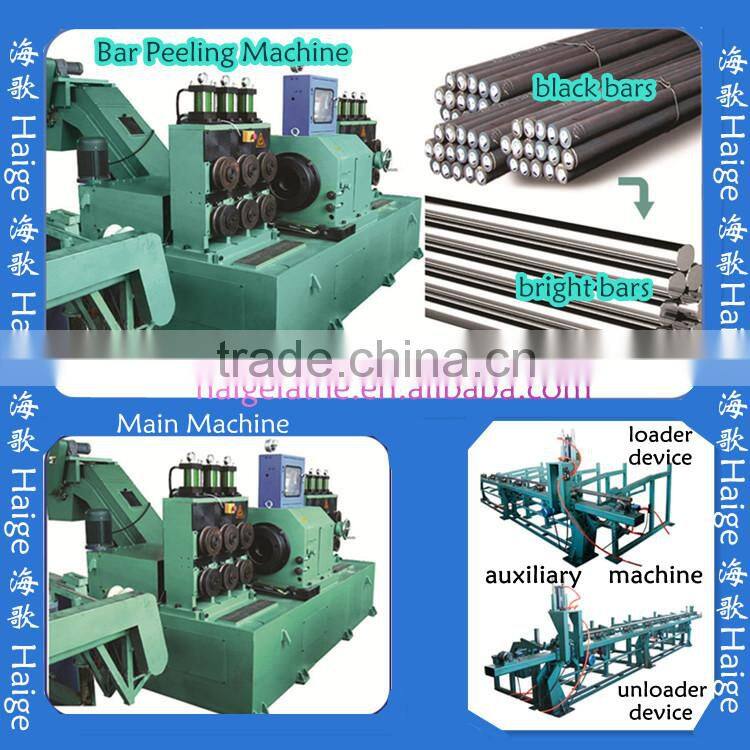

There are two parts of a peeling machine,main machine and auxiliary machine.
Main machine consists of the bed,main bearings,air/oil lubrication system,front-clamping pinch feeding and rear-clamping extracting,front guide and middle-rear guide system,main driving system etc.
Auxiliary machine :loader and unloader device.
Application
1.ferrous material:stainless steel,bearing steel,spring steel,tool steel,structural steel,
free cutting steel,valve steel,pinion/gear steel.etc
2.nonferrous metal:copper alloy,titanium alloy,magnesium alloy,titanium alloy,
magnesium alloy,aluminum alloy.etc
Advantages
1.When processing over-length bar,Centerless Lathe has incomparable advantages.Ordinary lathe is good at
processing short bar.But there is a great restriction for processing long shaft.
In thoery,Centerless Lathe can process the bar of infinite length.
2.Centerless Lathe is not only processing bar,also Wire rod.Including from wire rod
to wire rod and from wire rod to bar that the ordinary lathe can't do it.
3.Processing speed 1-12m/min,the working efficiency of Centerless Lathe is dozens
of times of the ordinary lathe.
4.High precision,after peeling,tolerance of diameter reach≤IT9,
surface roughness Ra≤6.3μm.But after straightening,Ra≤0.8μm.
After-sale service
1.Free quality guarantee period for 12 months
2.Free provide long-term technical support
3.Free train buyer's operator in seller's factory
4.Fast responce service within 24 hours
5.Our engineers can offer overseas service,including guiding
installation,commissioning,training,etc.
