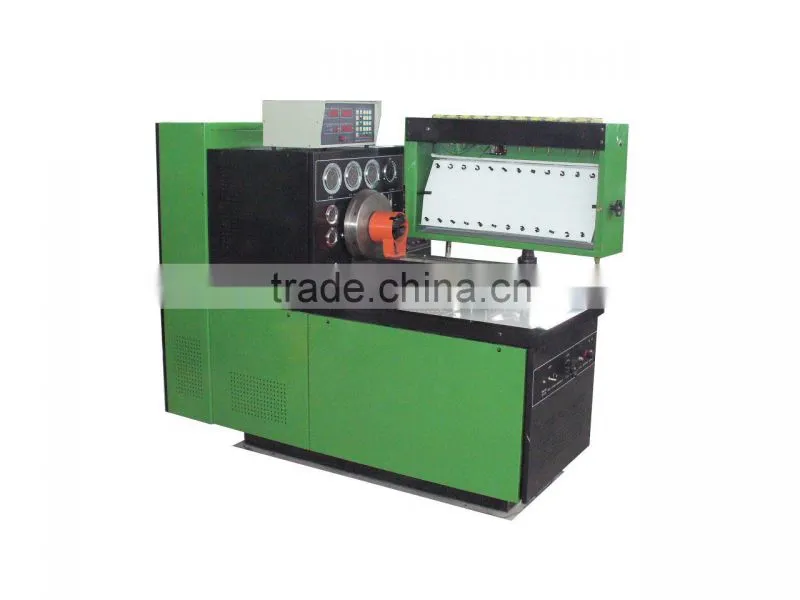

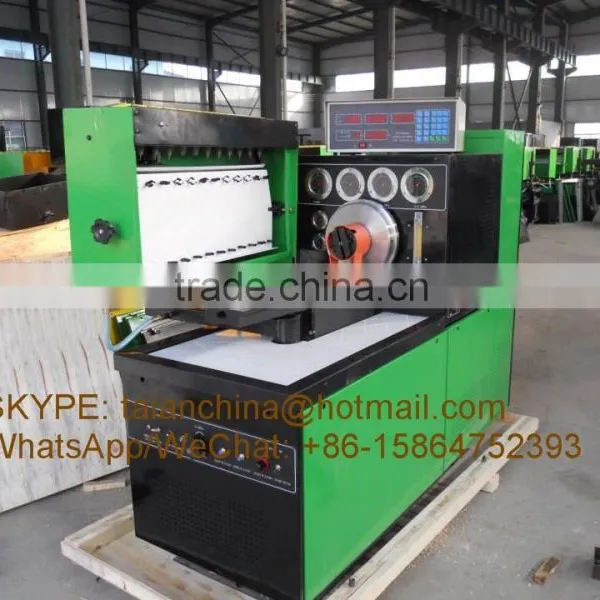

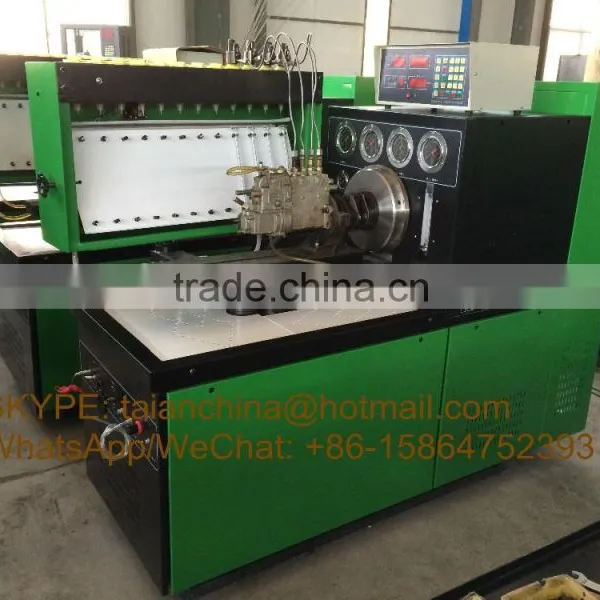

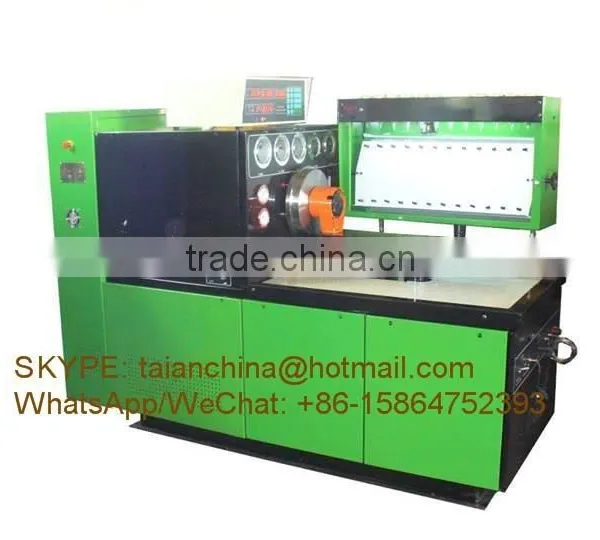

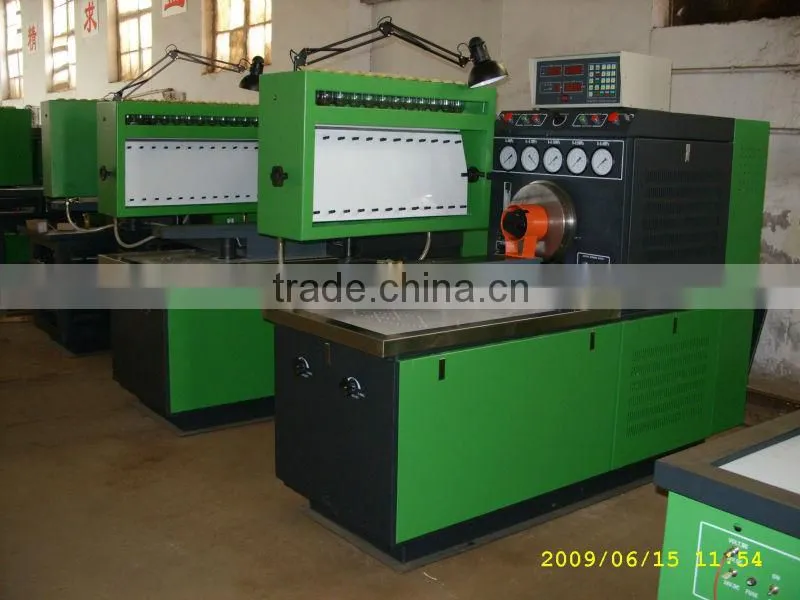

12psb disel injection pump test bench..
Introduction
12PSB series diesel fuel injection test bench is design for customer's require. This series test bench adopt digital controller, high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.
Main function
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12 Checking the travel of stroke (on request)
13.oil lubricate (on request)
14. Forced cooling (on request)
Adjustable cylinders numbers |
Out power(Kw) |
RPM |
Rpm pre-set |
Temperature control system |
Positive pressure system |
Positive pressure system |
12 |
7.5 11 |
0-4000 |
√ |
√ |
√ |
√ |
Air supply |
DC power supply |
internal pressure of VE pump |
Oil return of VE pump |
travel of tooth bar |
Advanced angle |
Capability with pump type |
√ |
√ |
√ |
√ |
√ |
√ |
All in- line and rotary pump |
Main products include:
1, Diesel engine parts (nozzle, plunger, delivery valve, head Rotor, injector, fuel pump and other accessories) 2 Injection pump test bench 3 auto tools 4 Auto parts 5, special vehicles 6 , Turbocharger.......
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
