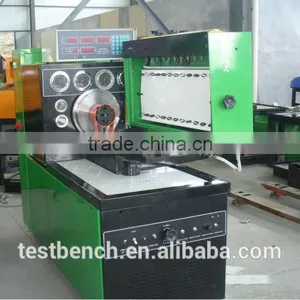

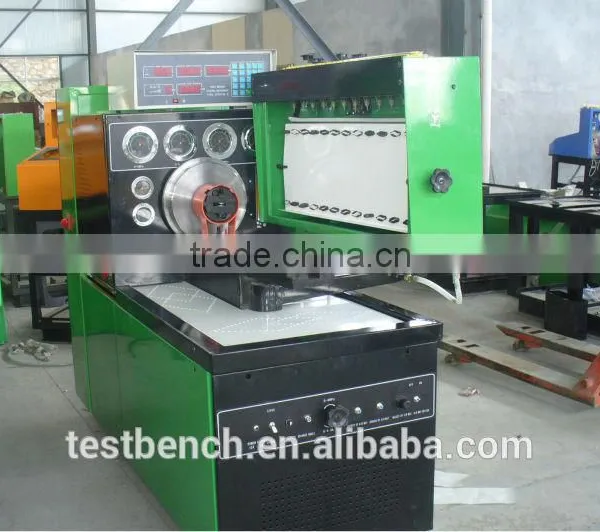

Help CenterFUEL INJECTION PUMP TEST BENCH 12PSB-IV
Related Products
-
FUEL INJECTION PUMP TEST BENCH 12PSB-IIIUS$ 2,700 - 6,000MOQ: 1 Set -
FUEL INJECTION PUMP TEST BENCH Nts619US$ 2,700 - 6,000MOQ: 1 Set
-
FUEL INJECTION PUMP TEST BENCH Nt3000US$ 2,700 - 6,000MOQ: 1 Set
-
Electronic Fuel Delivery Measuring System Test BenchUS$ 8,000 - 10,000MOQ: 1 Set
-
NT2000 Series Fuel Injection Pump Test Bench/banco de PruebasUS$ 1,000 - 5,000MOQ: 1 Set

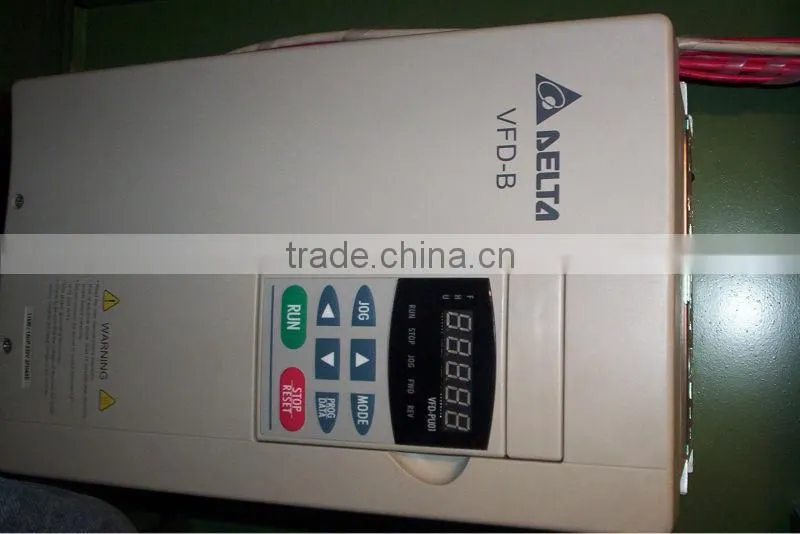

Diesel fuel injection test bench is design for customer’s require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.
FUNCTION |
12PSB |
NT2001 NT3000 NTS619 |
NT2001 PLC |
NTS815 |
||
1,Measurement of each cylinder delivery at any speed |
√ |
√ |
√ |
√ |
||
2. Test point and interval angle of oil supply of injection pump. |
√ |
√ |
√ |
√ |
||
3. Checking and adjust the mechanical governor. |
√ |
√ |
√ |
√ |
||
4. Checking and adjusting the distributor pump. |
√ |
√ |
√ |
√ |
||
5..Experiment and adjusting of behavior of supercharging and compensatory device |
√ |
√ |
√ |
√ |
||
6. Measurement of oil return of distributing pump |
√ |
√ |
√ |
√ |
||
7. Testing of the electromagnetic valve of distributor pump.(12V/24V) |
√ |
√ |
√ |
√ |
||
8. Measurement of the internal pressure of distributor pump. |
√ |
√ |
√ |
√ |
||
9. Checking of the advance angle of advance device. |
√ |
√ |
√ |
√ |
||
10. Checking the sealing of injection pump body |
√ |
√ |
√ |
√ |
||
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump) |
√ |
√ |
√ |
√ |
||

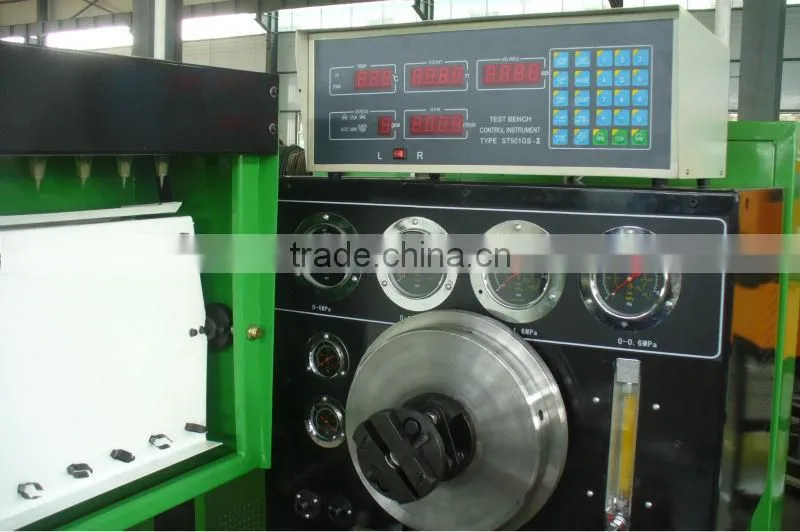

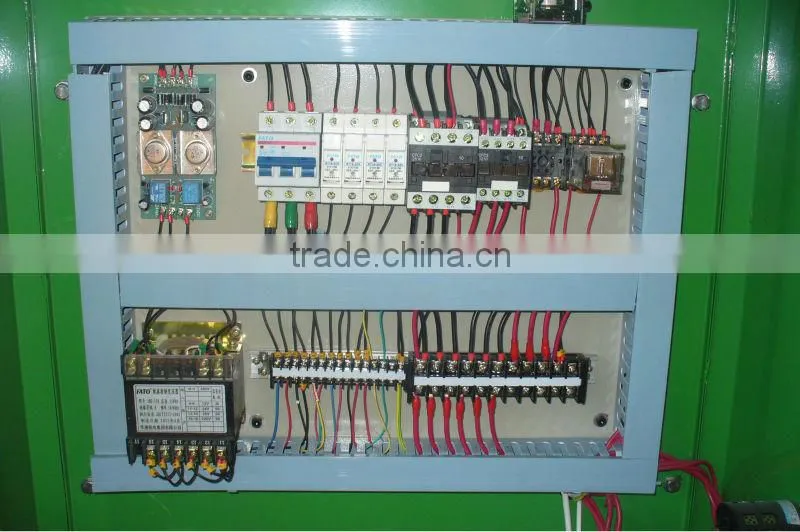

Control system |
12.Dgitial controller |
√ |
|
|
|
|
13. Computer controller + digital controller |
|
√ |
√ |
√ |
||
Oil quantity measure system |
14.Glass tube |
√ |
√ |
√ |
|
|
15.Electronic fuel delivery system (flow sensor) |
|
|
|
√ |
||
15, LCD touch screen |
LCD screen |
|
√ |
√ |
√ |
|
LCD touch screen |
|
optional |
√ |
|
||
16, TRAVEL OF TOOTH BAR |
optional |
optional |
optional |
optional |
||
17, OIL LUBRICATE |
optional |
optional |
optional |
optional |
||
18, FORCED COLLING |
optional |
optional |
optional |
optional |
||
Technical characteristic
Adjustable cylinders numbers |
Out power(Kw) |
RPM |
Rpm pre-set |
Temperature control system |
Positive pressure system |
Positive pressure system |
12 |
7.5 11 |
0-4000 |
√ |
√ |
√ |
√ |
Air supply |
DC power supply |
internal pressure of VE pump |
Oil return of VE pump |
travel of tooth bar |
Advanced angle |
Capability with pump type |
√ |
√ |
√ |
√ |
(On request) |
√(On request) |
All in- line and rotary pump |
