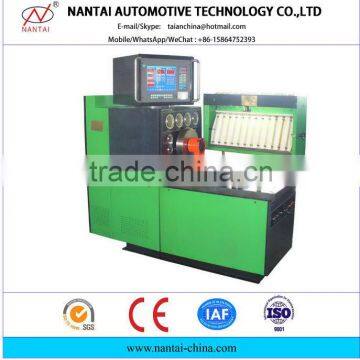

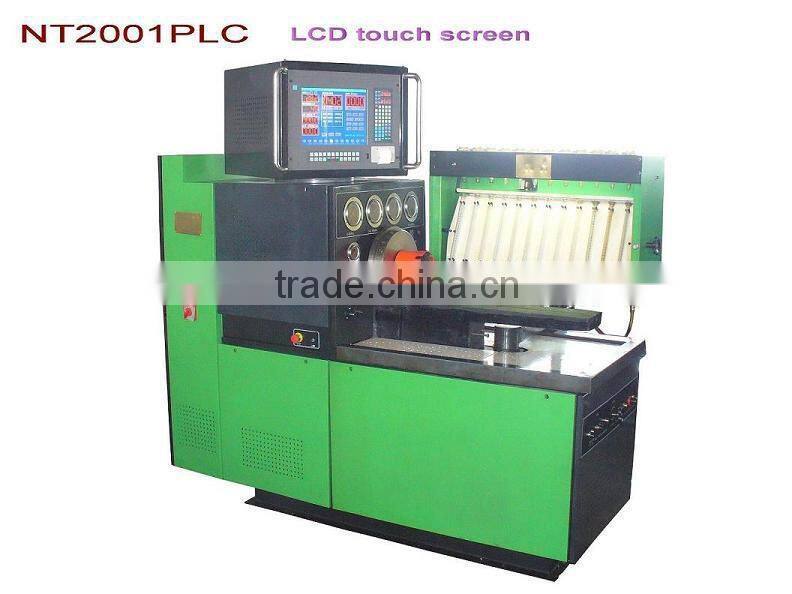

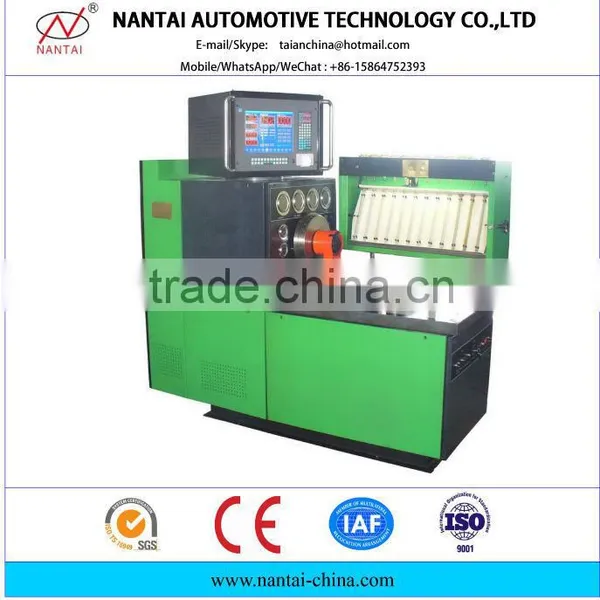

NT2001 diesel injection pump test bench
NT2001 Diesel injection Pump
Test bench
l Main function
1. Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.
10. Checking the sealing of injection pump body
11.Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.
12. Checking the travel of stroke (on request) USD150.00
13. Advance angle checking.
l Characteristics
1. Changing frequency changing rotational speed
2. Low fall of rotational speed and high output torque
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Ten classes Rotation speeds presetting;
6. Constant temperature controlled;
7. Ultra low noise;
8. Operating position: arbitrary side of the two work sides of the test stand;

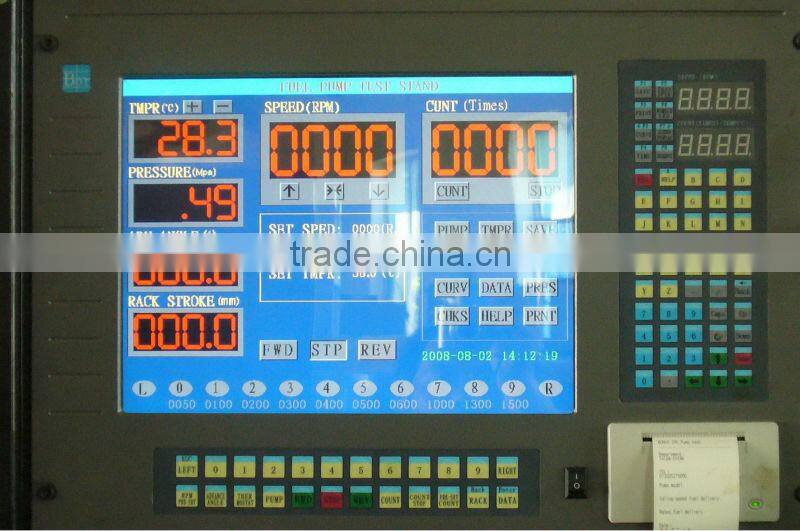

9. Rotation speed, count, temperature, air pressure, advance angle are measured and controlled by computers in real time, then displayed by 17″CRT or on request (17 LCD touch screen).
10. Built-in air resource;
11. All data can be made into reports and printed;
12. Automatically generating and displaying speed characteristics curve; ( tooth bar stroke function on request)
13. The data of the pumps can be saved, modified and obtained pump database;
14. It is very easy to find the data of the pumps in pumps database;
standard export package
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
