It is with inverter works better. It is touch screen.It is for all diesel traditional pumps and injectors: Denso Bosch Delphi...
Introduction

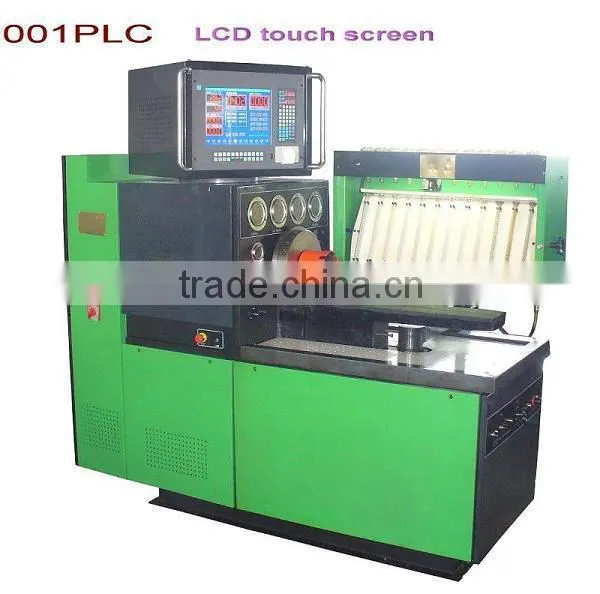

NT2001 series color LCD touch screen display diesel fuel injection test bench is our newly research hi-technology It controls by industrial computer. It included two kinds of operation systems: Color liquid crystal display screen(LCD Monitor )and two groups of four digit nixie tube display(digital display ). It included three kinds of controlling ways: LCD touch screen control, panel keyboard control and remote control. The panel keyboard of on the right of the computer provide all the control functions, touch screen and remote screen integrated the shortcut of commonly operational controlling way. rotary speed , temperature, pressure, travel of stroke advance angle and the technical data of fuel injection pumps display on screen and can print. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. it is the easiest, the quickest, the most reliable in our business....
1.Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including
|
Clylinders
|
(kw)
Output power
|
)
RPM
|
RPM-Preset
|
Temp. Control
|
Positive Pressure
|
Negative Pressure
|
12 |
7.5 11 15 18.5 22 |
0-4000 |
√ |
√ |
√ |
√ |
|
Air supply
|
12/24 DC power supply
|
internal pressure of VE pump
|
Oil return of VE pump
|
Rack Stroke
|
Advance Angel
|
Capability with pump type
|
√ |
√ |
√ |
√ |
√
(On request)
|
√
(On request)
|
All in- line and rotary pump |
Standard export packaged
Guaratee: 1year. lifetime maintenance
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
